2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor

Certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
I'm Online Chat Now

2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor

2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor
2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor 2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor 2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor 2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor

Large Image :  2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor

Product Details:
Place of Origin: China
Brand Name: YTO
Model Number: X904
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD15900/unit
Delivery Time: 30days
Payment Terms: L/C,, T/T, Western Union
Supply Ability: 200unit per month
Detailed Product Description
Power: 90hp Size: 4350*2300*2765mm
Weight: 3920kg Drive Type: 4x4
By Wheel: 4WD Usage: Farm Tractor
High Light:

90hp power steering cylinder tractor

,

2300r/min 90hp Tractor

,

yto x904 tractor

YTO Tractor 90hp Tractor Prices X904 farming tractor farm use agricultual machine



YTO 90hp X904 farming tractor tractor with cabin



Feature

YTO 90hp X904 farming tractor tractor with cabin

1.The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission. PERKINS engine is also optional.

2.The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h.

3.The full hydraulic steering system is utilized for easy operation.

4.High safety is ensured due to the use of the wet disc brake.

5.Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.

6.In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30kN).

7.Our wheel loader adopts double action clutch. German LUK clutch is available for your choice.



Parameter

YTO 90hp X904 farming tractor tractor with cabin

Model YTO-X904
Tractor
Type 4×4
Overall dimensions (LxWxH)(mm) 4350×2300×2765
Wheelbase(mm) 2314
Min. ground clearance(mm) 440
Min. operating mass(with safety stand)(Kg) 3920
Tyre spec., front /rear 13.6-24/16.9-34
Wheel tread, front/rear 1562~2000/1520~2120
Steering Full hydraulic
Brake Oil immersed, disk type
Diesel engine
Model LR4M5-23
Type Four cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L) 5.13
Rated power/speed(Kw)/(r/min) 66.5/2300
Max. torque (N.m)/speed (r/min) 325/1600-1800
Bore x stroke (mm) 110x135
Transmission
Gear shift, forward/backward 12/4
Speed range (Km/h), forward/backward 1.65~27.17/4.28 ~12.85
PTO power (Kw) 55
PTO rotation speed (r/min) 540/720 or 540/1000
Clutch 11-inch, dry, double action
Implement
Three-point linkage category Three-point linkage category Ⅱ
Tilling depth control mode Combined draft, position control and floating control
Lifting force(KN) 17
Options
OECD anti-turnover bar OECD certified anti-turnover bar or anti-turnover bar with awning
Transmission with shuttle-type gear 12+12
Transmission with creeper gear 24+8
Hydraulic output 2 or 3 group



Product Display

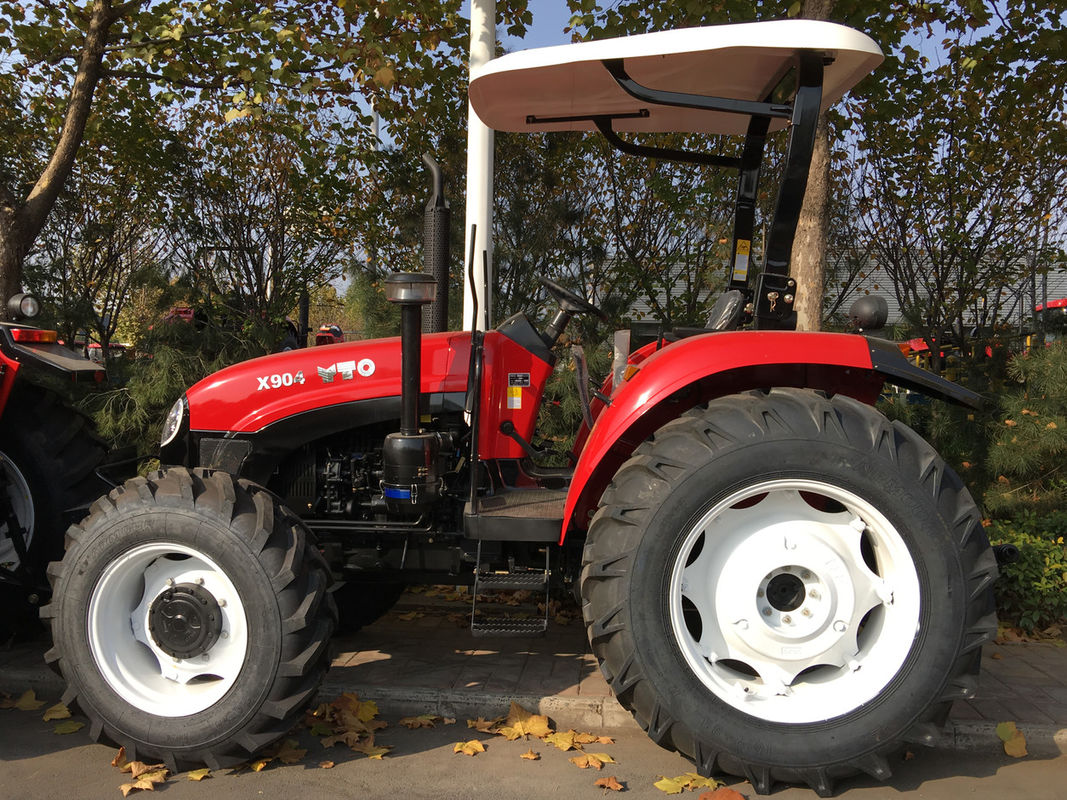

2300r/Min 90hp Power Steering Cylinder Tractor , YTO X904 Tractor 0
