Product Details:
Payment & Shipping Terms:
|
| Power: | 50hp | Function: | Front Loader, Backhoe |
|---|---|---|---|
| Size: | 5650*1700*2650 Mm | Loading Bucket Capacity: | 0.5 M^3 |
| Engine: | Euro3,Xinchai 36.8kw | Tires: | 12-16.5 |
| High Light: | 50hp mini tractor backhoe loader,3t mini tractor backhoe loader,3t front end loader backhoe |
||

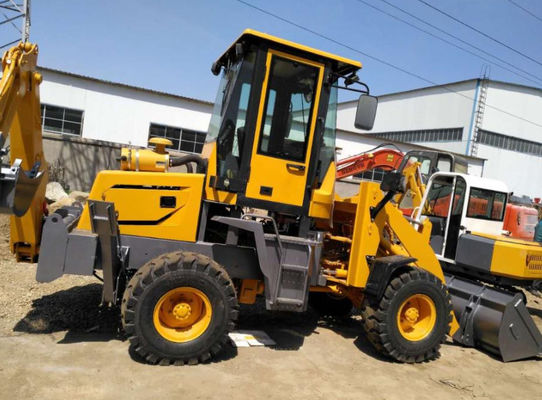

China Mini Tractor Loader XDEM cheap 3ton Backhoe Loader WZ10-20 backhoe loader
Specification of WZ10-20 backhoe loader
| Items | WZ10-20 |
| Total operating weight | 3000 kg |
| Transportation dimension | 5650*1700*2650 mm |
| Min ground clearance | 230 mm |
| Wheel base | 1350 mm |
| Axle base | 2050 mm |
| Loading bucket capacity | 0.5 m^3 |
| Backhoe bucket capacity | 0.1 m^3 |
| Max.digging force | 25KN |
| Bucket discharge height | 2850 mm |
| Backhoe bucket height | 1850 mm |
| Max.digging depth | 2000 mm |
| Bucket slewing angle | 180 degrees |
| Engine | Euro3,Xinchai 36.8kw |
| Type of power shift | Hydraulic torque converter |
| Travel speed | 25km/h |
| Tires | 12-16.5 |
| Tire pressure | 0.25Mpa |
| Steering angle | 35° |
| Work pressure | 15Mpa |
| Flow | 3.5L |
| Cabin | Closed cabin |
