Product Details:
Payment & Shipping Terms:
|
| Power: | 110hp | Overall Dimension(mm): | 5040*2255*2860 |
|---|---|---|---|
| Min Ground Clearance(mm): | 450 | Condition: | New |
| By Wheel: | 4WD | Usage: | Farm Tractor |
| High Light: | 110HP small 4wd tractor,YTO X1104 small 4wd tractor,110HP four wheel drive farm tractor |
||
YTO X1104 110HP 4WD Farm Tractors 110HP Tractor YTO 110HP Agricultural Tractor
YTO X1104 110HP 4WD Farm Tractor made in China
Introduction
YTO X1104 110HP4WD Farm Tractor made in China
YTO- X1104wheeled tractors are the 4WD tractors of international leading standards developed by YTO GROUP CORPORATION on our own based on advanced international technology and market demands.
It has powerful engine with extraordinary performance, beautiful outlook, wide scope of sight, good adaptability, extensively used in field operation and transport work.
Main features:
Hi-powered engine, low fuel consumption, good power/fuel economy.
T/M is basically configured with 12+4 gears, multiple no. of gears, optional with creeper gear, wide selection of speeds, easy to operate, efficient, uses chassis radiation system to satisfy the heavy loading conditions.
Closed cab, perfect styling, wide scope of sight, good riding comfort. Can be optioned with A/C, heater, CD player and etc.
Tractors are of big traction force and can be used in factories, warehouses, airports, dwarfs to trail the vehicles as well as transport application.
Differential lock uses lock-latch differential, reliable and easy to use.
Hydraulic steering, mechanical braking, easy and flexible to operate, so as to reduce the fatigue of operators.
Independent PTO can satisfy the rotary tilling, harvesting, sowing, fertilizer spreading and rice milling operations and etc; with synchronous PTO output functions.
Reliable hydraulic lifting system features oil dividing mechanism good to use. Big lifting force, with multi-tilling depth controls of position adjustment and draft control, tractors work with heavy duty and combined implements, forced soil-intrusion implements can be optional.
2 sets of hydraulic output and 3-set are optional, hydraulic system has oil return filtering system, little pollution.
Parameter
YTO X1104 110HP4WD Farm Tractor made in China
| Models | YTO-X1104 | ||
| Type | 4×4 | ||
| Overall dimension(mm) | 5040×2255×2860 | ||
| Front wheel base adjustable (mm) | 1672~2003 | ||
| Rear wheel base adjustable(mm) | 1600~2200 | ||
| Min ground clearance(mm) | 450 | ||
| Min turning radius (m) | 6.5±0.2 | ||
| 4820 | |||
| No. of gears, forward/reverse | 12F+4R | ||
| Range of speed | forward(km/h) | 2.06~28.4 | |
| reverse(km/h) | 4.45~13.28 | ||
| Engine | Model | LR6B3-23 | |
| Type |
6-cylinder, vertical, water-cooled, 4-stroke, direct injection diesel engine |
||
| Rated power (kW) | 81 | ||
| Rated revolution (r/min) | 2300 | ||
| Fuel consumption rate under rated working conditions(g/kW.h) | ≤242 | ||
| TIRE SIZE | FRONT |
14.9-24/12.4—26 (paddy rice wheels) |
|
| REAR |
16.9-38/18.4—34 (sugar cane field wheels) |
||
| Max lifting force at point of 610mm behind the hitch (kN) | ≥24 | ||
| PTO |
rear, independent & synchronized |
||
| PTO revolution speed (r/min) |
540(6-spline)/1000 (21-spline), options: 540(6-spline)/720(8-spline), 540(6-spline) 720(8-spline) 1000(21-spline |
||

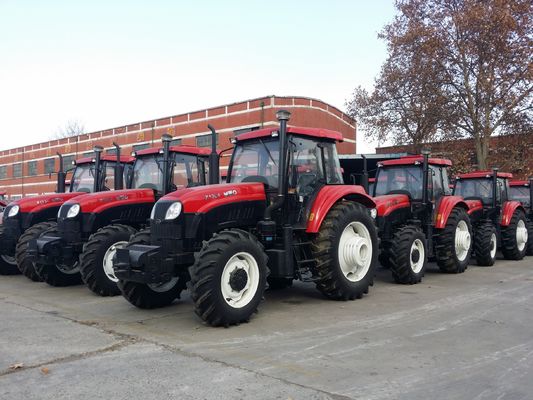

Product Display
YTO X1104 110HP4WD Farm Tractor made in China
