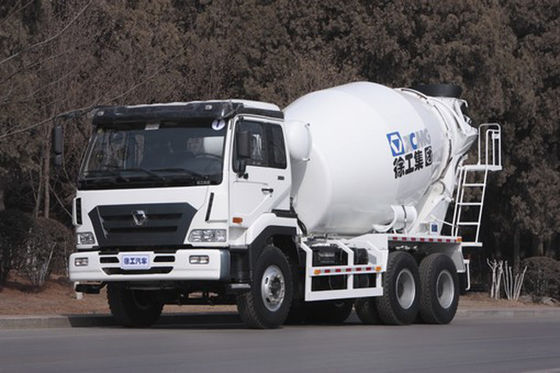

GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery

GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery
GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery

Large Image :  GD08FD 2.3t 8m3 Concrete Mixer Truck Road Construction Machinery

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE ISO
Model Number: GD08FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD50000-100000
Packaging Details: Nude
Delivery Time: 45 working days
Supply Ability: 500 sets per month
Detailed Product Description
Type: New Model: GD08FD
Brand Of Chassis: Ford Chassis Model: Cargo 2629
Maximum Gross Weight: 23000 Kg Type Of Drive 8×4 Wheel Base: 6×4
Wheel Base: 3440+1360 Tyre: 12.00R20
High Light:

8m3 concrete mixer truck

,

2.3t concrete mixer truck

,

8m3 cement mixer truck

XDEM GD08FD 8m3 Concrete Dry Mixer Transport Truck









Type Model Unit GD08FD
Performance of mixing drum Geometric volume 14.3
Mixing volume 8
Maximum diameter of drum body mm 2280
Length of mixing drum mm 4624
Angle of inclination ° 13
Rotating speed r/min 0~14
Charge speed m³/min ≥3
Discharge speed m³/min ≥2
Residue ratio of discharge % <0.7
Range of slump cm 5~21
Hydraulic system Oil pump   international brand
Motor   international brand
Reduction gears   international brand
Hydraulic circuit   Closed type
Water supply water tank capacity L 450
Way of water supply   Pneumatic
Complete machine Brand of chassis   Ford
Chassis model   Cargo 2629
Type of driving   Left-hand drive
Curb weight kg
maximum gross weight kg 2300
Type of drive   6×4
Wheel base mm 3440+1360
Tyre   12.00R20
Means of power takeoff   Power takeoff by flywheel
Notice model
External dimensions (length×width×height)mm 8680×2455×3920
Engine Model   Cummins ISB6.7
Rated power Kw/r/min 213
Displacement L 6.693
Emission standard   Euro V
