IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester

Certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
I'm Online Chat Now

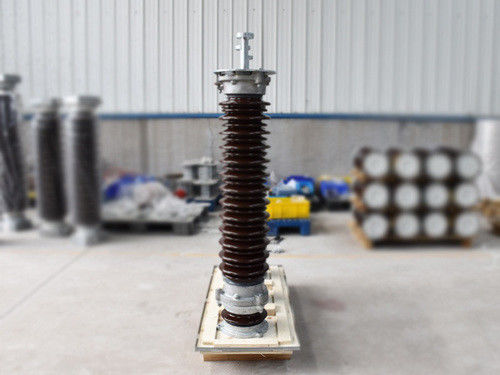

IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester

IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester
IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester

Large Image :  IEC60099 Standard 66kv 63kv 72.5kv Lightning Surge Arrester

Product Details:
Place of Origin: China
Brand Name: Xinda Electric
Certification: ISO certificates; KEMA Test Reports; Third part Type test reports
Model Number: Y10W-60/160
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD580.00/PC FOB Shanghai port,China.
Packaging Details: Polywood with pallet
Delivery Time: within 25 days from contract signed to delivery
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50,0000pcs surge arresters per year
Detailed Product Description
Material Of Bushing: Porcelain Housing Core Part Of Surge Arrester: Zinc Oxide Varistors; ZnO Blocks; Metal Oxide Varistors; Zinc Oxide Discs; MOV
Color Of Surge Arrester: Brown Rated Voltage Ur: 60kV
Nominal Discharge Current: 10kA Or 20kA Continuous Operating Voltage: 48kV
Leakague Current At 0.75 U1mA,DC: No More Than 50uA 500A Switching Impulse Current Residual Voltage(peak Value, No More Than): 136kV
10kA Lightning Impulse Current Residual Voltage(peak Value, No More Than): 160kV 10kA Steep Impulse Current Residual Voltage(peak Value, No More Than): 184kV
High Current Impulse Withstand 4/10us 2 Times: 100kA 2ms Long Duration Current Impulse Withstand(peak Value): 600A Or 800A
Pressure Relief: 50kA (0.2s) Rated Lightning Impulse Withstand Voltage (peak Value): 450kV
Rated Short Time Power Frequency Withstand Voltage(rms Value): 180kV Sealing Gas Leakage (helium Mass Spectrometer): 4.45x10-5 Pa.L/s
Equivalent Creepage Distance Ratio: ≥31mm/kV Salt Density: 0.06mg/cm2
Max. Partial Discharge: 10pC Standard: IEC60099-4:2014
Resistant Current(peak Value): 220uA Full Current(rms Value): 850uA
Relationship U0.5In/UInof Ures At Lightning Impulse: 0.96 Relationship Of Ures At Lightning Impulse U2In /UIn: 1.07
Energy (two Impulses): 7kJ/kV Dimensions Of Zinc Oxide Varistor: Φ52x24 (17~18PCS)
Weight: 150kg Grading Ring: Without
Package: Polywood Cases
High Light:

66kv lightning arrester

,

72.5kv lightning surge arrester

,

63kv lightning surge arrester

Porcelain Housed Lightning Arrester Surge Arrester MOA Metal Oxide Surge Arrester Arrestor Metal Oxide









The company's main products are 0.22kV-500kV AC and DC metal oxide surge arresters, 35kV-500kV surge arresters used for GAS Insulated Switchgear(GIS),energy absorbers for series compensation device, shielded plug-insurge arresters, and electrical instruments, which have been exported to many countries in Asia, Europe, South America nad other regions. The company is also a qualified supplier of such important customers as the State Grid Corporation of China, China Southern Power Grid Corporation, China Railway Corporation, and Sinopec. And the company's products have also been used extensively in various types of power plants, urban rail transit, switch plants and large enterprises with outsourcing and foreign aid projects, so that the company's reputation and influence in the market have been improved increasingly.


Covering an area of 39,000m2 and a building area of 15,000m2, the company has a complete test and inspection condition, with main production and test equipments 236 sets. The company has an anuual output capacity of 3 million pieces of metal -oxide varsitors(MOV),200,000 metal-oxide surge arresters, 2000 GIS surge arresters, and 30,000 surge counters and surge monitors.

The company has a provincial R&D center, specializing in research and daevelopment of products, testing and technological innovation.There are 5 well-know experts and 38 R&D personnel in the company, including 10 senior engineers and 21 mid-level professionals. The center has a high-voltage test hall, physical and chemical analysis of raw material such as metal oxide and silicon rubber, and 91 sets of research and development equipment.
