Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2120*830*1560MM | Drill Pipe Diameter:: | 42mm/50mm |
|---|---|---|---|
| Weight: | 1280 KG | Drilling Diameter: | 100mm |
| Drilling Depth: | 0-500m | Drilling Angle: | 0-360 |
| Spindle Speed: | 69,119,88,259,323,560,884,1220r/min | Spindle Lifting Force:: | 60kN |
| Spindle Travel: | 500mm | Spindle Torque: | 3000N.M |
| Warranty Of Core Components:: | 1 Year | Power Source: | Diesel Fuel |
| Power: | 43kW-1500r/min | Reverse Gear Speed:: | 54,253r/min |
| High Light: | XDEM Water Well Drilling Rig,100mm Water Well Drilling Rig,1500r/min Water Well Drilling Rig Machine |
||

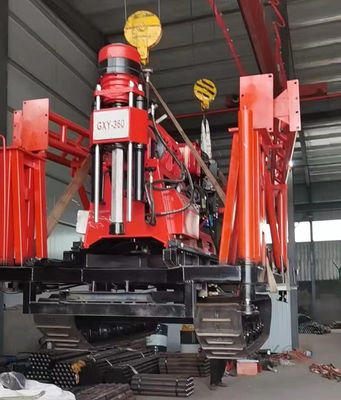

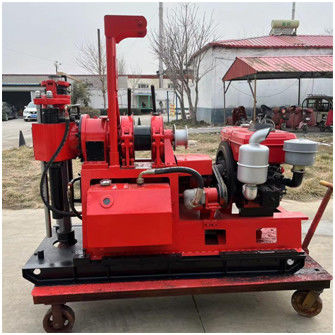

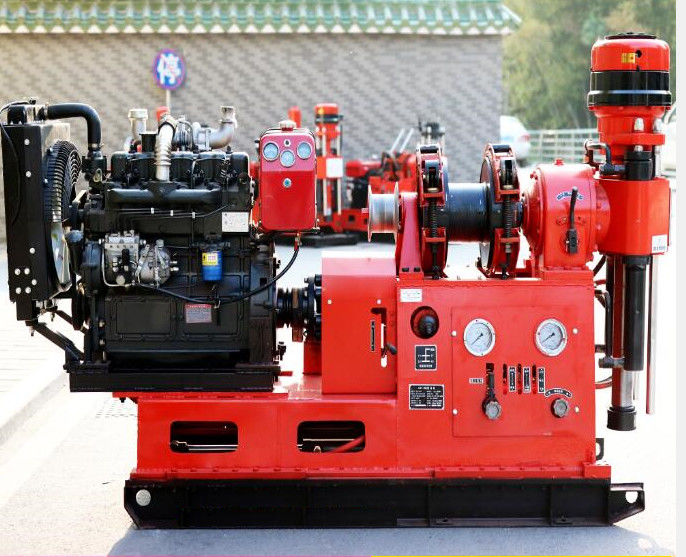

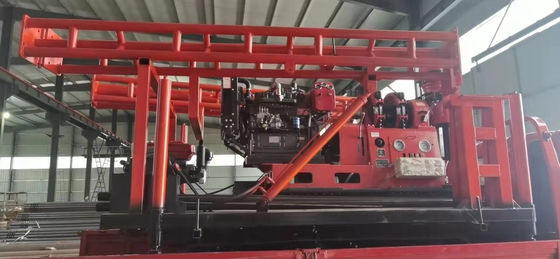

GXY-360 drilling rig is a multi-purpose machine with mechanical transmission and hydraulic feeding in rotary mode. It is suitable for industrial and civil buildings as well as roads, railways, bridges, water
Engineering geological survey work such as mines, water wells, and prospecting, shallow oil and gas exploration, mines tunnel ventilation, drainage, and small-diameter pile hole construction, etc.
This model has the advantages of compact structure, light weight, small size and good disassembly;
Different drills can be drilled with diamond, cemented
carbide, spiral and other drills.
Features:
| Model | GXY-360 |
| Drill depth | 0-500m |
| Rod diameter | 42mm/50mm |
| Drive rod | 53x59x4.5m |
| Spindle speed | 69,119,88,259,323,560,884,1220r/min |
| Reverse gear speed | 54,253r/min |
|
spindle speed |
500m |
| Spindle torque | 3000N.M |
| Spindle lifting force | 60kN |
| Spindle pressing force | 45kN |
| Hoist lifting | 25kN |
| Hoist rotation | 34,59,94,128r/min |
| Hoist capacity | 30M (12.5mm steel rope) |
| Shift travel | 465mm |
| Oil pump model | CB-FC16-FL |
| Oil pump rotation | 500-2500r/min |
| Oil pump displacement | 16ml/r |
| Power | 43kW-1500r/min |
| Overall size | 2120x830x1560mm |
| Weight | 1280kg |
