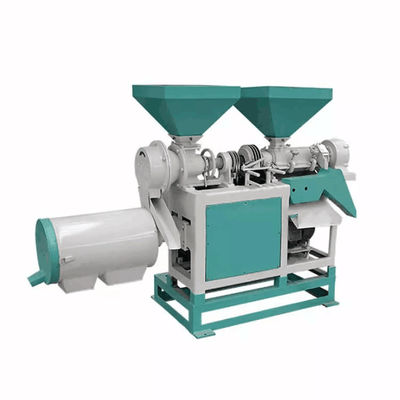

Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V

Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V
Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V

Large Image :  Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V

Product Details:
Place of Origin: Henan,China
Brand Name: XDEM
Certification: CE ISO9001
Model Number: qk-8953
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1490
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 50sets per hour
Contact Now
Detailed Product Description
Condition: New Voltage: 380V 50Hz, 380V
Weight: 300kg Dimension(L*W*H): 2200*500*1200(mm)
Max. Capacity: 1ton/h Capacity: 300-10000kg/h
Power: 7.5 Kw Production Capacity: 1000kg/h(Corn Grits), 350kg/h(Corn Flour)
Warranty: 1 Year Type: Feed Pellet Machine
High Light:

Corn Peeling Crushing Machine

,

Grits Corn Milling Machine

,

Corn Grits Grinding Machine 380V

Product Description
Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V 0
Specification
Corn hulled 300kg
Rated voltage 380v
Corn grits 1000kg
7.5kw class 4 motor
Ground corn flour 350kg
Spindle speed 860r/min
Powder feed 1000kg
Overall dimension 2200 * 500 * 1200
Rice milling 400kg
Operating Weight 300kg
Wheat hulled 400kg
Other milling 300-400kg
Ground flour 200kg
Equipped power:power
Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V 1
CORN PEELING CRUSHING MACHINE
It is suitable for small grain processing plants (mills) to peel, grit (ballast) and flour corn, wheat, sorghum and other raw
grains. Corn grits making and grits breaking machine Household corn ballast machine Multi functional corn residue machine
Corn Peeling Crushing Machine Grits Milling Grits Grinding 380V 2
Grain processing rod peeling mill, corn milling machine, corn flour peeling and residue breaking machine, rod peeling and grit making machine Nanyang Xinda Electromechanical Co., Ltd. produces corn peeling and grits making machine, corn peeling and flour grinding machine, corn grits grinding machine, corn peeling and grits making machine, which integrates peeling, feed grinding, corn residue making and corn flour making, that is, it is convenient for users in large places, so that one machine can be used for multiple purposes, and energy and power saving can be achieved, because this machine has only one motor. Generally, wet peeling is preferred for corn peeling, and the water content should be less than 15%. Mix 6-8 jin of water for every 100 jin of corn, and mix evenly. The excess water needs to be drained. Moisten for 5-6 minutes in spring and autumn, and 10-12 minutes in winter. It is better to take off cutter and roll by 3-5 mm. Add 2-3 jin of water for every 100 jin of wheat hulling, and start processing after 2-3 minutes. It can also be dried and stripped once. When making grits, corn can be divided into three products: large grits, medium grits and flour grits. The grinding core, roller, knife and screen will be worn after being used for a period of time, so it should be checked regularly.

Feature
1: Corn hulling
1 Close the blanking and feeding plugboard at the feeding inlet, and then start the motor. The machine operates normally, and then
slowly pull the blanking plugboard away
2 Wet peeling is generally beneficial for corn peeling. The moisture content of corn should be within 15%. Mix 6-8 jin of water
for every 100 jin of corn, and mix evenly. The excess water needs to be discharged from the container. The pressure plugboard has
multiple functions such as drying, removing and adjusting the output. When the screen does not peel, the stripping chamber and the
screen hole should be cleaned.
.2: Wheat hulling
The wheat shall be peeled by adding 2-3 jin of water per jin of white wheat. After 2-3 minutes, the wheat shall be processed
without water by visual inspection. When the wheat is not peeled, the screen shall be cleaned, generally 1-2 times. The wheat
shall be peeled dry for one time. Rice hulling, replace the screen, adjust the stripper and stripper by 2-3mm, adjust the pressure
plugboard, and dry the rice once



3: Grits making machine
The grits making machine and peeling machine can work at the same time. During grits making, corn can be divided into three
products: large grits, medium grits and flour through the following three separations. Grits are naturally polished. The stripped
corn kernels are fed into the hopper, and the adjusting hand wheel is rotated inward. When the grinding head and the grinding core
hear a slight running in sound, slowly open the hopper. At this time, do not stay away from the adjusting hand wheel for the time
being. Adjust the tightness according to the size of the sieve particles. When satisfied, tighten the handle from the left side
upwards. When the processing is about to be completed, loosen the locking handle and rotate the adjusting handle outward. At this
time, the grinding head and grinding center have been separated. The accidental collision sound of a no-load grinding head before
and after the machine stops belongs to a normal phenomenon. When the machine is in operation, it is prohibited to empty



Tag:

Corn Grits Grinding Machine 380V,

Grits Corn Milling Machine,

Corn Peeling Crushing Machine
