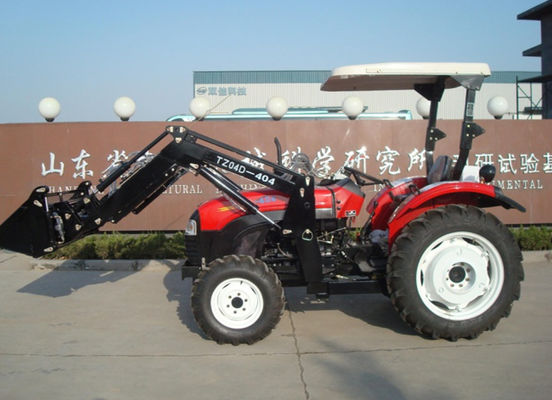

TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket

Certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
I'm Online Chat Now

TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket

TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket
TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket

Large Image :  TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket

Product Details:
Place of Origin: cHINA
Brand Name: xdem
Model Number: TZ04D, TZ06D, TZ08D, TZ10D, TZ112D, TZ16D
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD2850
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 unit per month
Detailed Product Description
Drive: Match To Tractor Matched Power: 20hp~220hp
Rated Lifting Capacity: 200kg~1600kg Overloading Height: 2170mm~4000mm
Bucket Capacity: Can Be Customized Dumping Height: 1730mm~3200mm
High Light:

0.16m3 tractor front bucket

,

0.16m3 tractor front end loader bucket

,

TZ04D Farm Tractor Attachments

Front end loader tractor front loader front bucket front loader for tractor



Front loader with bucket to match tractor



Loader Model     TZ02D TZ03D TZ04D TZ06D TZ08D TZ10D TZ12D TZ16D
Matching Tractor   hp 15~25 20~40 30~55 45~60 55~75 70~100 90~140 140~180
Max. Lifting Height at Implement Pivot Pin H mm 2350 2550 2740 3010 3400 3710 3970 4260
Dumping Height A mm 1730 1840 2100 2370 2480 2720 3000 3200
Overloading Height L mm 2170 2370 2560 2830 3220 3490 3770 4000
Dumping Distance W mm 370 500 600 640 690 740 900 900
Ground Clearance at Arm Pivot Pin B mm 1120 1200 1360 1500 1630 1780 1930 1930
Max. Tip in Angle X ° 48 48 48 48 54 54 54 54
Tip out Angle Z ° 52 58 58 58 58 58 58 58
Crowd Angle at Lowered Lift Arm V   140 135 135 135 135 145 145 145
Digging Depth S   90 100 100 120 140 180 200 200
Lifting Force at Implement Pivot Pin Q1   1821 2224 2144 2150 1997 2308 2403 2620
Q2   1184 1474 1321 1286 1187 1452 1690 1850
Bucket Model(Standard)     02DP125 04DP125 04DP140 06DP150 08DP160 08DP170 12DP200 16DP240
Bucket Width     1250 1250 1400 1500 1600 1700 2000 2400
Bucket Capacity     0.16 0.18 0.21 0.35 0.4 0.44 0.7 1.6
Rated Lifting Capacity     200 300 400 600 800 1000 1200 1600



TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 0TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 1TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 2TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 3TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 4TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 5TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 6TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 7TZ04D Farm Tractor Attachments , 0.16m3 Tractor Front End Loader Bucket 8
