3 ton XDEM CY3500 7 m 14 m 17 m Telescopic Handler Telescopic Forklift Loader Telehandler

3 ton XDEM CY3500 7 m 14 m 17 m Telescopic Handler Telescopic Forklift Loader Telehandler
3 ton XDEM CY3500 7 m 14 m 17 m Telescopic Handler Telescopic Forklift Loader Telehandler

Large Image :  3 ton XDEM CY3500 7 m 14 m 17 m Telescopic Handler Telescopic Forklift Loader Telehandler

Product Details:
Place of Origin: China
Brand Name: XDEM
Model Number: SZMCY3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD34500/unit
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200unit per month
Contact Now
Detailed Product Description
Load Capacity: 3ton Machine Weight:: 8600kg
Size: 5915*2420*2280mm Max Lift Height: 7200mm
Wheel Base: 1990mm
Highlight:

3t telescopic handler forklift

,

3t four wheel drive forklift

,

82kw wheel loader forklift

China Small 3 ton CY3500 Telescopic Handler Wheel Forklift Loader Telehandler for Sale

Technical parameters of CY3500 Telescopic forklift

LIFTING PERFORMANCE DIMENSIONS
Max. lift capacity kg 3000

Overall length

(fork included)

 mm 5915
Over Weight kg 8600 Overall height mm 2280
Max. lift capacity to full height kg 600 Overall width mm 2420
Max lift Height mm 7200 Wheel Base mm 2847
Center distance to full height mm 5150 Fork Length mm 1200
Luffing Angle . -10.5-60 Wheel Base mm 1990
Fork Caster Angle . 18 Minimum Pass Width mm 2240
Fork Forwards Inclination . 90 Minimum Pass Height mm 2220
CHASSIS ENGINE
Grade ability . 15 Engine Model Cummins 4BTAA3.9-C100
Turning circle mm 4000 Rated Power kw 82
Max. Speed m/h 38 Displacement L 3.9
Braking distance m ≤8

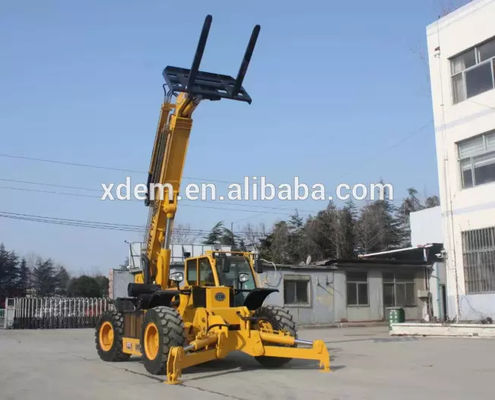

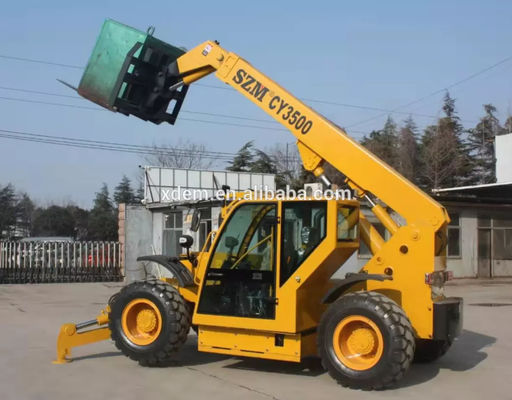

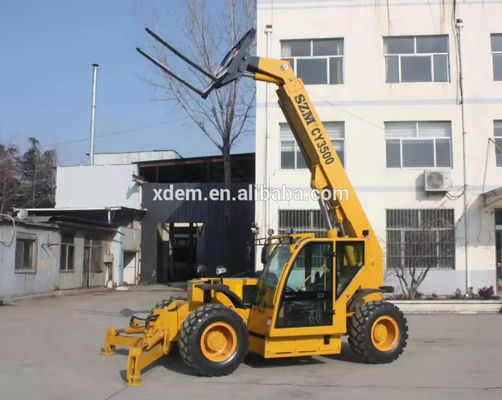

Photos of CY3500 Telescopic forklift

3 ton XDEM CY3500 7 m 14 m 17 m Telescopic Handler Telescopic Forklift Loader Telehandler 0

3 ton XDEM CY3500 7 m 14 m 17 m Telescopic Handler Telescopic Forklift Loader Telehandler 1
