Product Details:
Payment & Shipping Terms:
|
| Power: | 36.8hp | Spraying Width: | 11-18m |
|---|---|---|---|
| Tank Volume: | 700L | Working Efficiency: | 60 Mu/Hour |
| Condition: | New | By Wheel: | 4WD |
| High Light: | 36.8hp agriculture boom sprayer,36.8hp self propelled high clearance sprayer,4WD self propelled high clearance sprayer |
||
Self-propelled sprayer, high clearance boom agricultural sprayer
Self-propelled four wheel high clearance boom agricultural sprayer, agricultural machinery, Adjustable wheels distance
Features of Self-propelled high clearance sprayer
1. Hydraulic boom arm, soft, durable, long life
2. Four-wheel steering, convenient steering, less pressing seeds, more save money
3. Lifting and spreading fertilizer spreader, easy and quick to add fertilizer, spread fertilizer evenly
4. Unique gear structure for easy operation
5. Customizable, adjustable wheelbase
Technical parameters of Self-propelled high clearance sprayer
| Model | RJ-700 |
| Style | Sell-propelled model |
| Size (L*W*H) | 4600*1680*2270MM |
| Weight | 1700kg |
| Spraying width | 11~18m |
| Spraying bar working pressure | 0.5~0.8Mpa |
| Engine | Diesel |
| Rated power | 36.8/2200-2300 (kw/rpm) |
| Start type | Electric start |
| Drive | 4WD |
| Tankd volume | 700L |
| Mixing style | Jet mixing |
| sprinkler head | sector |
| Qty | 23 pics |
| Fog cone angle | 110° |
| Single spray capacity | 1.386/0.4Mpa (L/min) |
| Spacing | 500mm |
| Sprayer gear | 3 in/ 1 back |
| Working efficiency | 60 Mu/Hour |

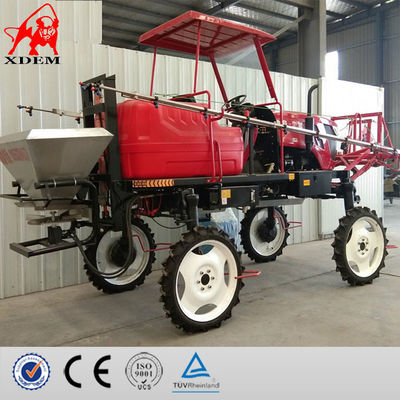

Photos of Self-propelled high clearance sprayer
