Product Details:
Payment & Shipping Terms:
|
| Model: | X1254 | Size: | 5040*2255*2870mm |
|---|---|---|---|
| Power: | 125hp | Min Ground Clearance(mm): | 470 |
| Min Turning Radius (m): | 4850 | Engine: | 6 Cylinder |
| Drive: | 4WD | ||
| High Light: | 125HP agriculture farm tractor,125HP four wheel drive tractor,yto x1254 agriculture farm tractor |
||

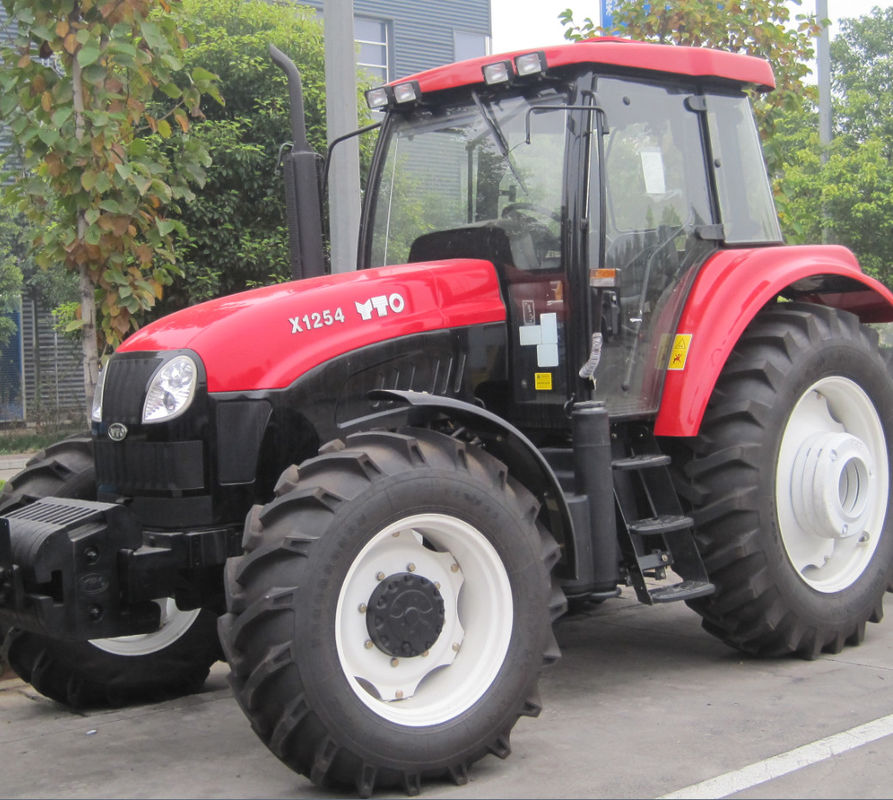

YTO X1254 125HP Farm Tractor
Introduction
YTO X1254 125HP Farm Tractor
YTO- X1204/X1254/X1304 Wheeled Tractors are the 4WD tractors of international leading standards developed by YTO GROUP CORPORATION on its own based on advanced international technology and market demands.
Parameter
YTO X1254 125HP Farm Tractor
| Models | YTO- X1254 | |
| Type | 4×4 | |
| Overall dimension(mm) | 5040×2255×2870 | |
| Front wheel base adjustable(mm) | 1672~2003 | |
| Rear wheel base adjustable(mm) | 1662-2262 | |
| Min ground clearance(mm) | 470 | |
| Min turning radius (m) | 7.0±0.2 | |
| 4850 | ||
| No. of gears, forward/reverse | 12F+4R | |
| Range of speed | forward(km/h) | 2.19~29.63 |
| reverse(km/h) | 4.72-13.83 | |
| Engine | Model | LR6M5-23 |
| Type |
6-cylinder, vertical, water-cooled, 4-stroke, direct injection diesel engine |
|
| Rated power (kW) | 92 | |
| Rated revolution (r/min) | 2300 | |
| Fuel consumption rate under rated working conditions(g/kW.h) | ≤242 | |
| TIRE SIZE | FRONT | 14.9-24/12.4—26(paddy rice wheels) |
| REAR | 16.9-38/18.4—34(sugar cane field wheels) | |
| Max lifting force at point of 610mm behind the hitch (kN) | ≥28 | |
| PTO | rear, independent & synchronized | |
| PTO revolution speed (r/min) |
540(6-spline)/1000(21-spline),options: 540(6-spline)/720(8-spline),540(6-spline) 720(8-spline) 1000(21-spline) |
|
