60Hz Automatic Welding Machine , 120r/Min Line Bore Welding Machine

60Hz Automatic Welding Machine , 120r/Min Line Bore Welding Machine
60Hz Automatic Welding Machine , 120r/Min Line Bore Welding Machine

Large Image :  60Hz Automatic Welding Machine , 120r/Min Line Bore Welding Machine

Product Details:
Place of Origin: China
Brand Name: XDEM
Model Number: XDS-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10000-12000
Packaging Details: export wooden package
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 1000 sets per month
Detailed Product Description
Boring Range: 65-650mm Power: 2600W
Drive: Servo Motor Bar Speed: 0--120r / Min
Boring Bar: 60x3500/3000/2000mm Travel: 500mm
High Light:

60Hz automatic welding machine

,

60Hz Portable Line Boring Machine

,

120r/min line bore welding machine

XDEM XDS-60 35-650mm Portable Line Boring and Auto Welding Machine For Excavator, Shipyard Repair

XDS-60 Portable Line Boring and Auto Welding Machine

TWO-IN-ONE!!!TRUELY AUTOMATIC!!!



XDEM XDS-60 machines is the latest two in one model which can do manual & automatic line boring and auto welding work, mainly used for repairing Inner hole of excavator, bulldozer, end face refacing in construction machinery workshops and in shipyard and chemical industry.



Product features:

1. Digital controlled for simple operation;

2. Compact structure with high precision and easy installation;

3. Higher strength alloy steel boring bar, hard chrome plated, higher precision and toughness;

4. Machine head can be installed any position on boring bar;

5. Bearing support with double-row self-aligning roller bearings with high precision and rigidity;

6. End face tool holder can automatically move forward and backward with adjustable feed rate.



Product Specification:

Model   XDS-60
Boring and welding range mm 65-650
Servo motor kW 2.6 (220V, 50/60Hz)
Boring span mm 800 (customized)
Boring bar mm 60*2000 (length customized)
Welding rod mm 30*1200 (Optional)
Main drive motor kW 1.8-3
Feeding / Manual& Electric
Welding range mm 38-500
Working travel mm 500
Roughness   RA3.2
Unilateral cutting depth mm ≥3
Roundness error mm ≤0.02

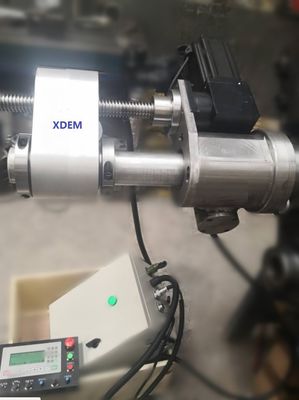

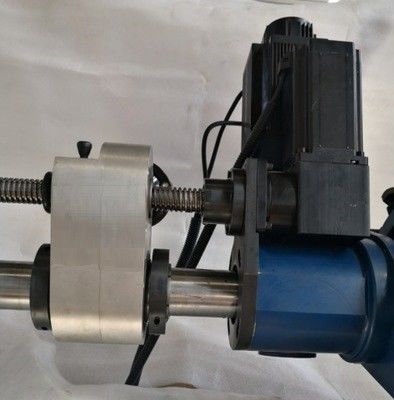

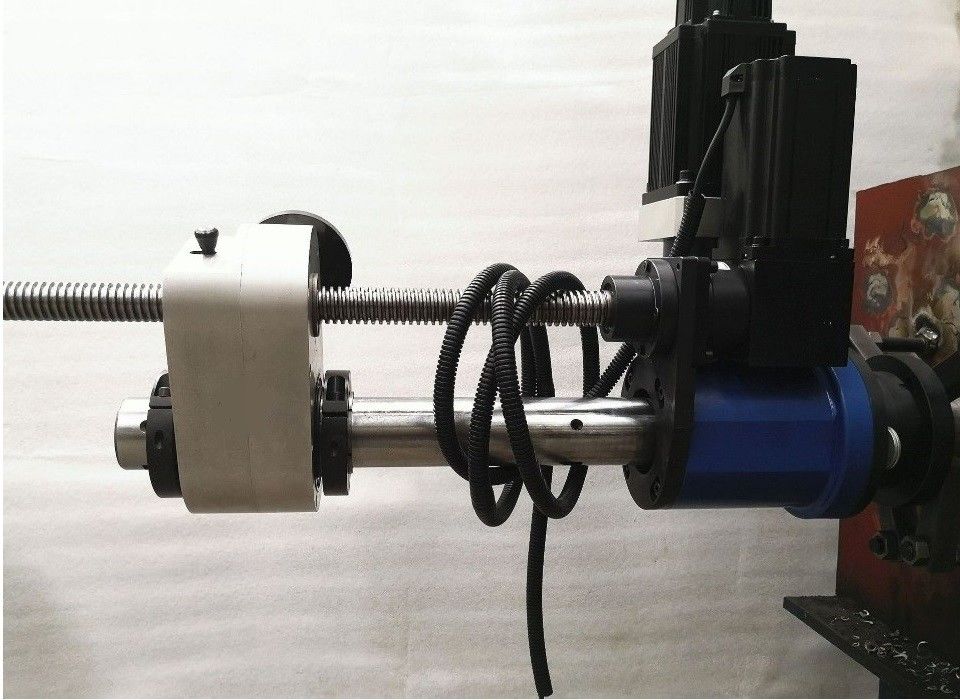

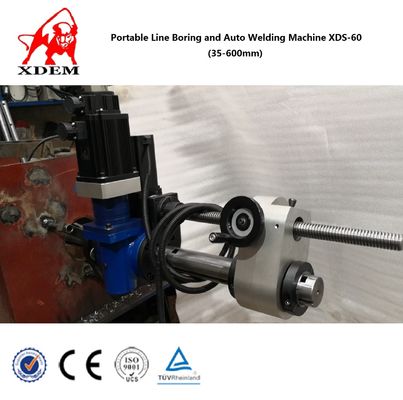

Product Photo:

60Hz Automatic Welding Machine , 120r/Min Line Bore Welding Machine 0



60Hz Automatic Welding Machine , 120r/Min Line Bore Welding Machine 1

60Hz Automatic Welding Machine , 120r/Min Line Bore Welding Machine 2
