Product Details:
Payment & Shipping Terms:
|
| Power: | 70hp | Drive: | 4WD |
|---|---|---|---|
| Tyre: | 7.0-12/13.6-16 | Size: | 3350*1350*1200 |
| Rated Speed (r/min): | 2400 | Min. Operation Weight: | 1500kg |
| High Light: | 70hp 4 Cylinder agriculture farm tractor,720rpm 4wd farm tractor,720rpm agriculture farm tractor |
||
70hp HW704 HANWO Brand Orchard Tractor, 4WD Farm Cheap Tractor
Technical parameter
| Model | 704D | |
| Drive type | 4*4 | |
| Engine | ||
| Engine brand | LD | |
| Model | 4TD70 | |
| Type | 4 cylinder, water-cooling | |
| Rated speed (r/min) | 2400 | |
| Engine power (hp) | 70hp | |
| Transmission | ||
| Clutch | Dry, single function clutch | |
| PTO size | 6 teeth, φ35 | |
| PTO Speed(rpm) | 540/720 | |
| Gear shift | 8+2 | |
| Hydraulic system | ||
| Hydraulic output valve | 2-Way optional | |
| Three point linkage | ||
| Category of 3-point link | Rear, Category 0 | |
| Technical parameter | ||
| Dimension(L*W*H) mm | 3350*1350*1200 | |
| Min. operation weight | 1500kg | |
| Wheel base(mm) | 1860 | |
| Front wheel tread(mm) | 1100 | |
| Rear wheel tread(mm) | 1100 | |
| Min. clearance(mm) | 320 | |
| Front tyre | 7.0-12 | |
| Rear tyre | 13.6-16 | |
| Steering type | Hydraulic steering |

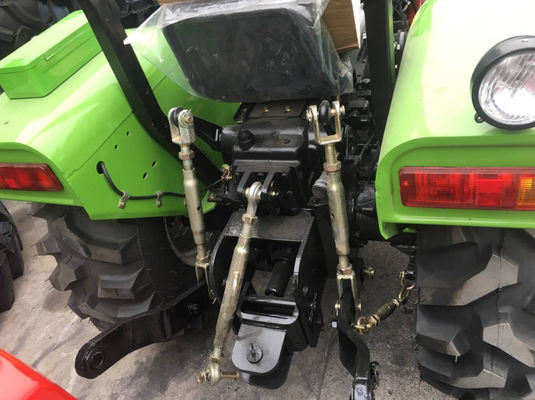

Product Display
