ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600

Certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
I'm Online Chat Now

ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600

ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600
ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600 ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600 ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600 ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600

Large Image :  ISO 2x65m3 380V Stabilized Soil Mixing Plant WCBD600

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE ISO
Model Number: WCBD600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80000-100000
Packaging Details: Nude
Delivery Time: 45 working days
Supply Ability: 500 sets per month
Detailed Product Description
Model: WCBD600 Rated Capacity: 600t/h
Filler Bin Capacity: 2x65m3 Total Installed Capacity: 165kW
Power: 380V / 220V, 50Hz Three-phase Four-wire System
High Light:

380V Stabilized Soil Mixing Plant

,

2x65m3 Stabilized Soil Mixing Plant

,

ISO Stabilized Soil Mixing Plant

ROADY WCBD600 600TPH 165kw Stabilized Soil Mixing Plant

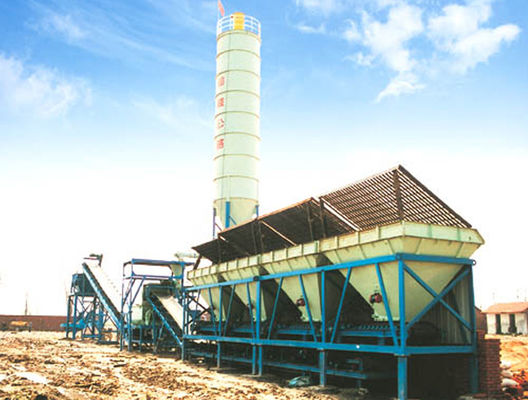

WCBD wet (stabilizing soil) mixing plant is used in produce stabilizing soil layer that under the asphalt road surface.

200, 300, 400, 500, 600TPH wet (stabilizing soil) mixing plant, stationary or mobile type

1.Material supply machine

Modularization design, easy transportation, continuous belt weighing, electromagnetic timing, material bin board connection, proof board bolt connection, can be exchanged realizing two sides material supply, equipped with many anti-deflection measures; also equipped with cleaning device and material scraping device, avoid belt internal and external adhesive material.

2.Vertical filler silo

35M3 vertical filler silo, equipped with material measuring device, top-silo dust catcher and air force agglomeration exploding device.

3.Mixing mainframe

The mainframe adopts double shaft compulsory continuous and well-proportioned mixing, no-scaleboard technique reducing blade abrasion; the mixing blade adopt special wearable material with a long using life; water spraying machine can sprinkle the water equably on the material and can realize well mixing; equipped with emergency stop switch, when there is urgency accident or cleaning the mixer, insure the safety of workers and equipment, the special mixer cleaning tool and mixer structure are convenient for cleaning, outside bearing without mud and protect the bearing;



4.Mixture conveying

The conveying belt is connecting with the material receiving device, avoid material leaking when discharging the mixture out of the mixer; the belt pressing wheel can be adjusted, which make the conveying belt arch well; folding structure is convenient for transportation; equipped with many anti-deflection measures, also equipped with cleaning device and material scraping device, avoid belt internal and external adhesive material.



Model

Production (t/h ) Filler bin capacitym ³ Mixture storage hopper capactity (m ³) aggregate size(mm) Dosage types Dosage accuracy Weight(t) Power (kw)
Aggregate Cement Water
WCBD600 600 2 x 65 7 ≤60 5 ±1% ±1% ±1% 65 165
