XDEM XY-1A Portable Water Well Drill Rig Core Drilling Hard Rock Drilling Machine
XDEM XY-1A Hydraulic Water Well Drilling Rig 150m
Product Description:
XY-1A water well drilling machine is widely used for drilling water well, geothermal and irrigation well, geotechnical investigation, mining exploration, bridge building, geothermal wells, blast-hole, etc.
Main Features:
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill
both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.
Technical Parameters:
| Basics | Drill depth (m) | 150 |
| Drill hole(mm) | 75-300 | |
| Final hole (mm) | 75 | |
| Rod diameter (mm) | 42/50 | |
| Drill angle (Degree) | 75-90 | |
| Size(LxWxH)mm | 1710x8500x1340 | |
| Weight (kg) | 500 | |
| Spindle | Spindle speed (r/min) | 1010/790/470/295/140 |
| Travel (mm) | 450 | |
| Max. Pressure (kN) | 15 | |
| Lifting force (kN) | 25 | |
| Hoist | Maxing lifting force (kN) | 15 |
| Drum speed (r/min) | 121/76/36 | |
| Drum diameter (mm) | 140 | |
| Steel rope diameter (mm) | 9.1-12 | |
| Steel rope capacity | 35 | |
| Brake diameter (mm) | 252 | |
| Brake band width (mm) | 50 | |
| Oil Pump | Model | YB-20/125 |
| Rated pressure (Mpa) | 12.5 | |
| Flow rate (ml/r) | 20 | |
| Rated speed (r/min) | 1500 | |
| Diesel engine | Model | ZS1105(18HP) |
| Nominal speed (r/min) | 2200 | |
| Power(Kw) | 13.3 |
Tips to select a right drilling rig:
1. What kind of projects you will work for?
Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?
2. Max drilling depth you want.
100m, 150m, 200m, 300m, or other depth.
3. The Min and Max borehole diameter you need.
Like Max 200mm, Min 75mm.
4. Geological condition of the working site if you know about it.
Soft ground like soil, mud, sand?
Hard ground like hard rocks?
Or mixed?
More details you provided, our engineer can suggest the most suitable model for you.

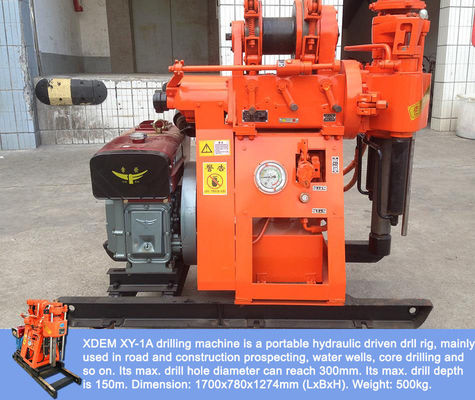

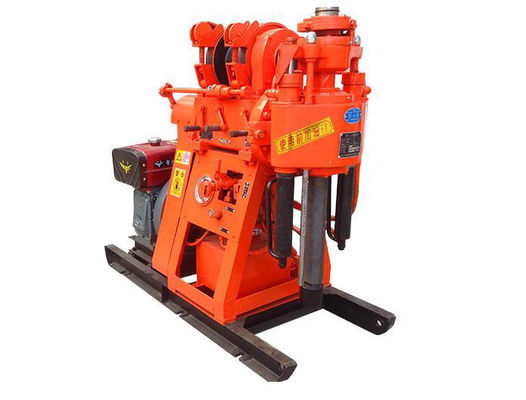

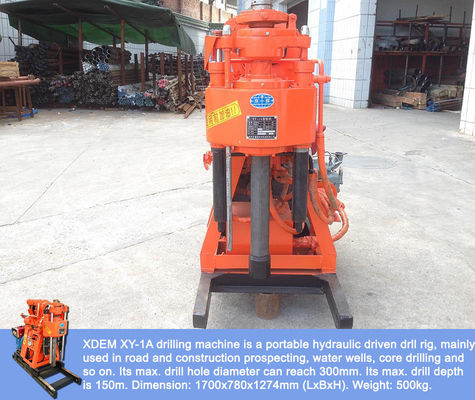

Product Show:
Working on site:
