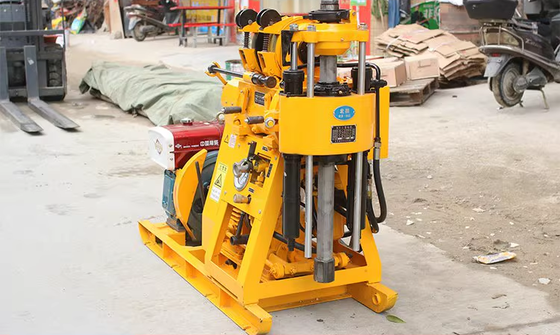

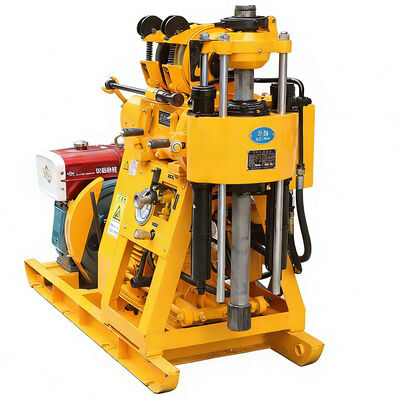

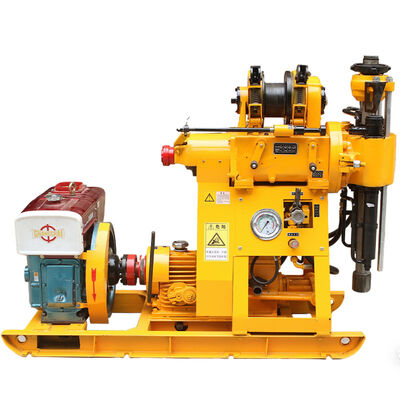

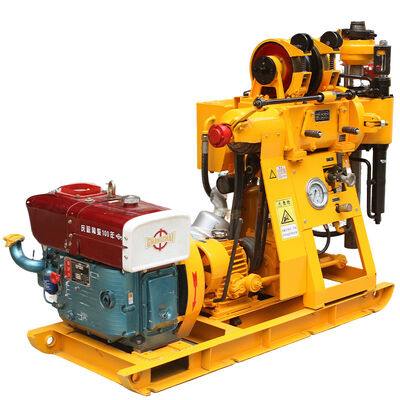

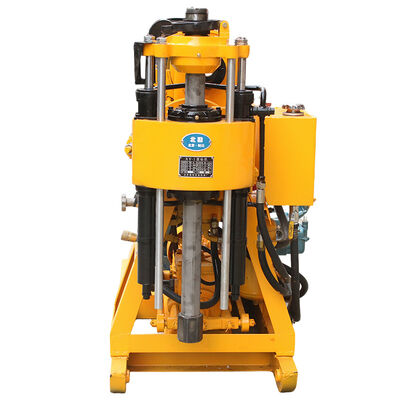

XY-1 High Speed Geological Core Drilling Rig
1. Product Overview
XY-1 geological drill rig is a lightweight core drilling equipment equipped with hydraulic automatic feed mechanism, specially designed for various geological exploration operations.
2. Application Scope
It is widely applied in general geological reconnaissance, geophysical prospecting, road & building engineering exploration, environmental monitoring, foundation grouting and blasting hole drilling projects.
Matched with alloy, steel shot and steel tooth drill bits, it can drill into 2–9 grade silty clay and bedrock formations. The machine supports core & soil sample extraction, non-coring drilling, heavy dynamic penetration tests and standard penetration tests.
3. Core Advantages
- Efficient Hydraulic Feed: Adopts hydraulic automatic feeding structure to greatly improve drilling speed and work efficiency.
- Non-stop Rod Changing: Uses upper spherical clamping mechanism instead of traditional chuck, realizing rod replacement without machine shutdown to save working time.
- Centralized Control Handles: Concentrated operating handles for simple, safe and reliable operation.
- Compact Integrated Layout: Drill host, mud pump and diesel engine are mounted on one unified base frame, occupying small site space.
- Easy Transportation: Light total weight and modular split design enable quick disassembly, convenient transfer, suitable for construction on plains and mountainous remote areas.
4. Main Technical Highlights
Customization:
XDEM Well Drilling Machine Customization Service
Brand Name: XDEM
Place of Origin: Henan, China
Certification: CE
Packaging Details: Export package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 1000 sets/ month
Weight: 985 KG
Power Source: Diesel Fuel
Condition: New
Drilling Diameter: 300mm, 50mm, 75mm, 100mm
Spindle Speed: 70 150 220 400 500 900r/min
Looking for a customized deep hole driller or underground drill that meets your specific needs? Look no further than XDEM's Well Drilling Machine. Our drilling machinery is designed and manufactured in Henan, China, and has obtained CE certification. With an export package, we can deliver our products to you within 15 working days.
Our Well Drilling Machine runs on diesel fuel and has a weight of 985 KG, making it easy to transport and maneuver. We offer a variety of drilling diameters, including 300mm, 50mm, 75mm, and 100mm, to fit your drilling requirements. With spindle speeds ranging from 70 to 900r/min, you can expect efficient and precise drilling performance.
Choose XDEM for your Well Drilling Machine needs and experience top-notch quality, reliability, and customization options. Contact us today to discuss your specific requirements and let us provide you with a drilling solution that exceeds your expectations.
