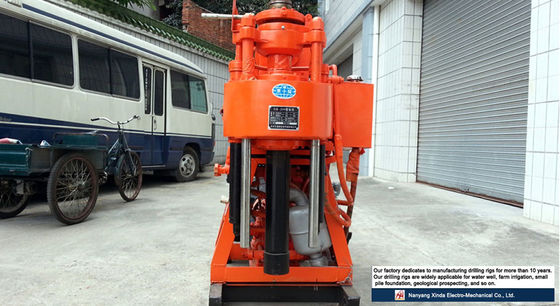

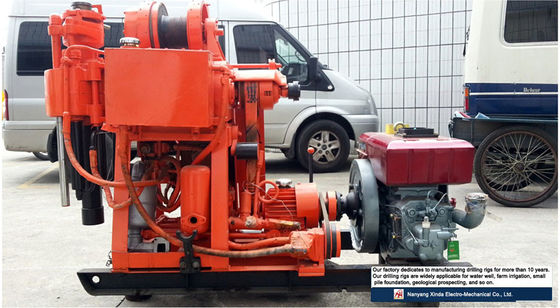

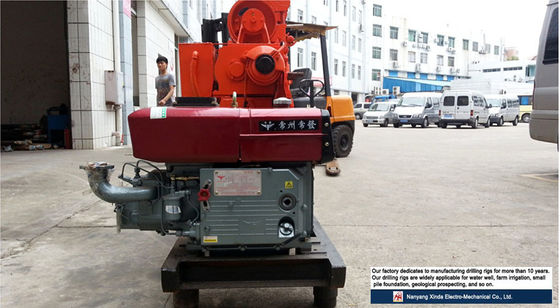

Dia75mm Well Drilling Machine

Dia75mm Well Drilling Machine
Dia75mm Well Drilling Machine

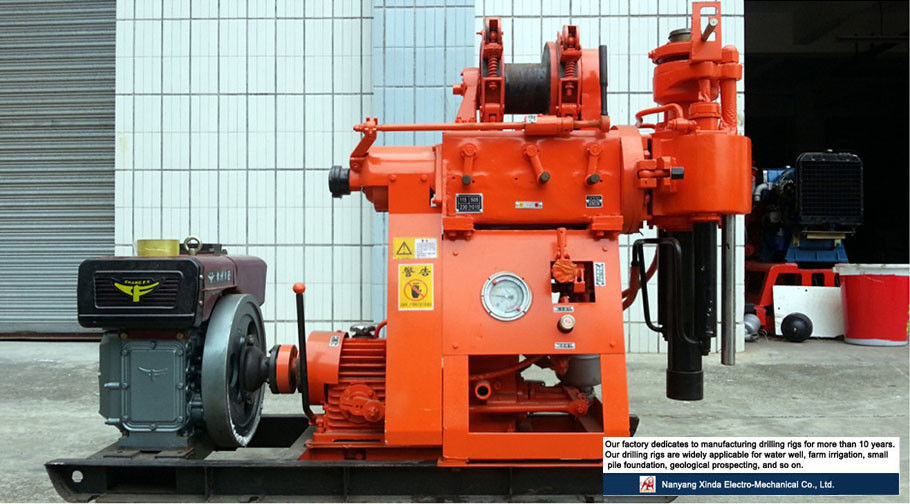

Large Image :  Dia75mm Well Drilling Machine

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE ISO
Model Number: XY-200B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5000-8000
Packaging Details: Nude
Delivery Time: 15 working days
Detailed Product Description
Working Way: Hydraulic Power Source: Diesel
Total Power: 18Hp Max Drilling Depth: 200
Drilling Angle: 0°- 90 ° Rotation Speed: 0-150r/min
High Light:

200m portable hydraulic water well drilling rig


Dia75mm portable hydraulic water well drilling rig


Dia75mm water well drilling rigs

XY-200B Portable Water Well Drill Rig Hydraulic Drilling Machine Core Drilling Equipment

XDEM XY-200B 200m Hydraulic Water Well Drilling Rig

Product Description:

XY-200B drill rig is a portable hydraulic drive and great torque drill rig with water pump, mainly used in small water well, core drilling, exploration, road and building prospecting, etc. It is provided with more powerful 16.2kW ZS1115 diesel engine, increased spindle diameter (φ53 hexagonal drive rod) and hoisting capacity (to ensure that φ75 drill rod can reach drill diameter 200mm) and added reverse gear function.


Main Features:

1. Very powerful at soil, sand, hard rock, etc. land condition.

2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.

3. Hydraulic control system for greatly improving the working efficiency, saving labor force.

4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.

5. Power can be diesel engine or electric motor, as per your request.



Technical Parameters:


1. Main Parameters
Drilling depth 200m, 150m, 100m, 50m
Final hole diameter 75mm, 91mm, 150mm, 200mm
Drill pipe diameter 50mm
Size (LxWxH) 1780×950×1350mm
Weight 630kg
2. Power
Diesel Engine 16.2kW, ZS1115


Dia75mm Well Drilling Machine 0

Tips to select a right drilling rig:


1. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?


2. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.


3. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.


4. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand?

Hard ground like hard rocks?

Or mixed?


More details you provided, our engineer can suggest the most suitable model for you.

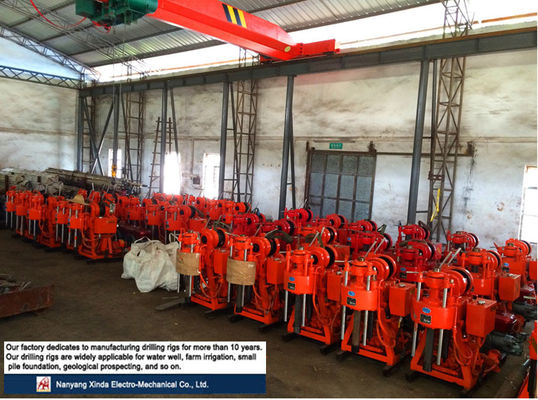

Product Show:
