Power: | 70hp | Overall Dimensions: | 4250×2145×2650 |
---|---|---|---|
Tyre Spec., Front /rear: | 11.2-24/16.9-30 | Wheelbase(mm): | 2314 |
By Wheel: | 4WD | Usage: | Farm Tractor |
Highlight: | 70HP Agriculture Farm Tractor,yto x704 Agriculture Farm Tractor,70HP 4 wheel drive lawn tractor |

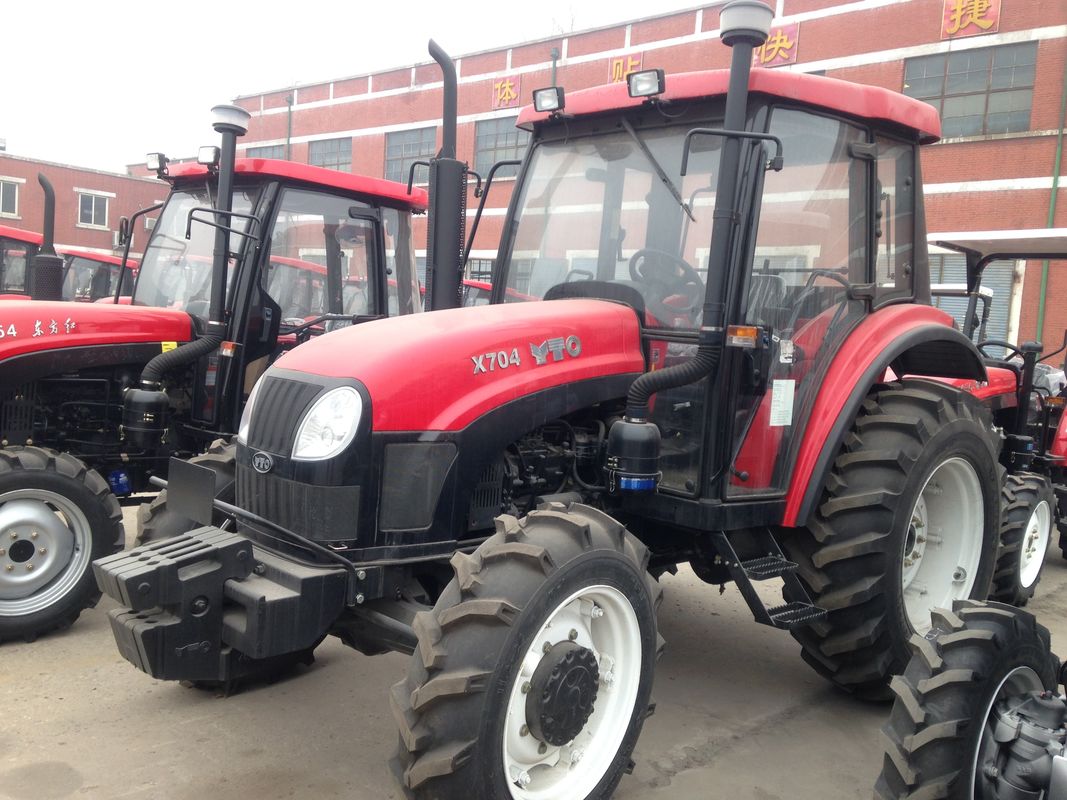

YTO Brand X704 tractor Agriculture Farm Tractor 70HP Tractor with cabin YTO 70HP tractor
Introduction of YTO Brand X704 Farming Tractor 70HP Tractor with cabin
1.YTO engine, the engine has the strong power and high quality.
2.Gearbox has 12 forward shifts and 4 reverse shifts.
3.Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
4.Independent PTO shaft has so many speed of rotation to choose. For example,540/760/850/1000.
5.It can meet customer’s different requirements when using tractor in the farm.
6.1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.
Parameter of YTO Brand X704 Farming Tractor 70HP Tractor with cabin
Model | YTO-X704 |
Tractor | |
Type | 4×4 |
Overall dimensions (LxWxH)(mm) | 4250×2145×2650 |
Wheelbase(mm) | 2314 |
Min. ground clearance(mm) | 370 |
Min. operating mass(with safety stand)(Kg) | 3540 |
Tyre spec., front /rear | 11.2-24/16.9-30 |
Wheel tread, front/rear | 1569~2005/1500~2100 |
Steering | Full hydraulic |
Brake | Oil immersed, disk type |
Diesel engine | |
Model | LR4A3-23 |
Type | Four cylinder, vertical, water cooled, four stroke, direct injection combustion |
Displacement (L) | 4.33 |
Rated power/speed(Kw)/(r/min) | 51.5/2400 |
Max. torque (N.m)/speed (r/min) | 237/1500-1700 |
Bore x stroke (mm) | 105x125 |
Transmission | |
Gear shift, forward/backward | 12/4 |
Speed range (Km/h), forward/backward | 1.61~26.57/4.19~12.59 |
PTO power (Kw) | 44 |
PTO rotation speed (r/min) | 540/720 or 540/1000 |
Clutch | 11-inch, dry, double action |
Implement | |
Three-point linkage category | Three-point linkage category Ⅱ |
Tilling depth control mode | Combined draft, position control and floating control |
Lifting force(KN) | 16 |
Options | |
OECD anti-turnover bar | OECD certified anti-turnover bar or anti-turnover bar with awning |
Transmission with shuttle-type gear | 12+12 |
Transmission with creeper gear | 24+8 |
Hydraulic output | 2 or 3 group |
