40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12 Dozers

40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers
40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers

Large Image :  40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12 Dozers

Product Details:
Place of Origin: China
Brand Name: XDEM
Model Number: YM600T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10000-13000
Packaging Details: export package
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 1000 sets per month
Detailed Product Description
Nominal Force Of Cylinder: 3000x2KN Rated Pressure: 25
Motor Power: 15kW Oil Pump: 40Ml/r
Opening Length: 1060 Worktable Height Above The Ground: 900
High Light:

600T portable hydraulic track pin press

,

40Ml/r hydraulic pin press

,

600T hydraulic pin press

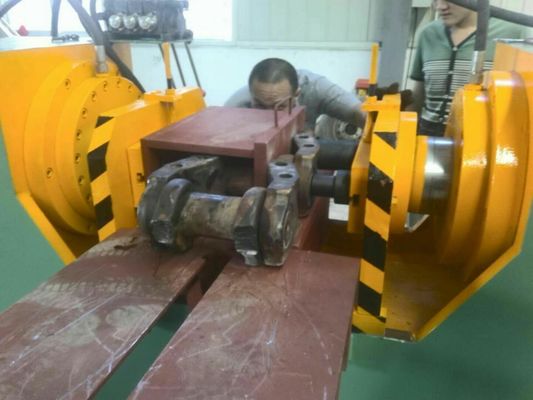

XDEM 600T Stationary Hydraulic Track Pin Press Link Assembly and Disassembly Machine for CAT D9, D10, D11, D12 Dozers



XDEM 600T Stationary Hydraulic Track Pin Press

This twin-ram track press machine uses advanced welding technology with firm and stable body. Its tooling can be moved to disassemble the chain rails of different sizes. It is suitable for assembly and production of factory workshop chain rails, with high efficiency, saving time and effort.



This machine is composed of a cylinder, a hydraulic station, a hydraulic system, a workbench, and an electrical control part. The hydraulic station electrical box is independently integrated and placed on the right side of the machine, and the oil level is displayed by the oil mark.



The electric appliance adopts centralized control and manual valve control, and the operation is simple and practical.



40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 0



Main Parameters

1 Model / YM600T
2 Nominal force of two oil cylinders KN 3000*2
3 Press stroke mm 300*2
4 Max. Opening mm 1060
5 Bench height above the ground mm 900
6 Motor power kW 15
7 Oil pump Ml/r 40
8 Machine size mm 2700*1000*1600
9 Machine weight kg 5000



More pictures

40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 140Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 2



Packing List

40Ml/R 600T Portable Hydraulic Track Pin Press For CAT D12  Dozers 3
