25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine

25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine
25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine

Large Image :  25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine

Product Details:
Place of Origin: China
Brand Name: XDEM
Model Number: YM42T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD2000-3000
Packaging Details: export package
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 1000 sets per month
Detailed Product Description
System Pressure: 31.5Mpa Riveting Force: 420kN
Max. Rivet Diameter: 10-18mm Weight: 200kg
High Light:

420kN hydraulic riveting machine

,

420kN industrial rivet machine

,

25T Hydraulic Riveting Machine

XDEM Hydraulic Riveting Machine for Autotruck Frames Cold Riveting Clamp 42T/25T



XDEM Hydraulic Riveting Machine for Autotruck Frames



PRODUCT DESCRIPTION

Hydraulic cold riveting machine for autotruck frames is the most simple and practical riveting equipment in recent years due to its flexible and convenient use.

It is generally applied in heavy truck, bus, car, motorcycle, train, agricultural vehicle, mine-vehicle, aeroplane, bridge structure etc.

The product developed by our company has been further improved and has the following advantages compared with traditional hot riveting, pneumatic riveting machines, etc.:



(1) Simple structure and stable performance;
(2) Small size, integrated cabinet structure, which can be moved at any time;

(3) The operation is quick and convenient, and one person can complete it;

(4) No heat treatment is required;
(5) Hydraulic system, with stable transmission, reliable strength, and the gap between the joints is eliminated;
(6) The host system is matched with different rivet tongs to form riveting equipment of different specifications;
(7) The rivet head can be replaced to form different riveting shapes;
(8) low voice; riveting pressure and travel speed can be adjusted.



MACHINE STRUCTURE

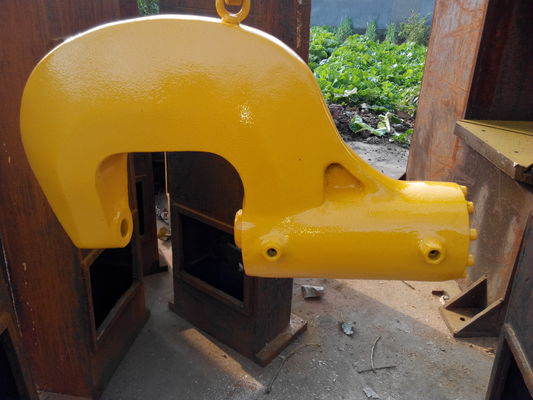

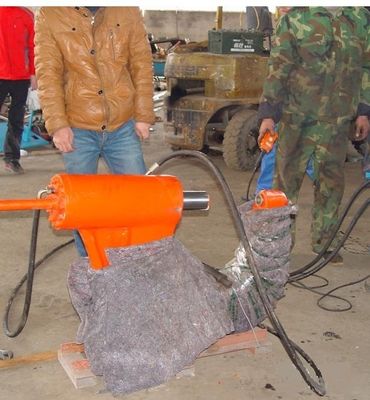

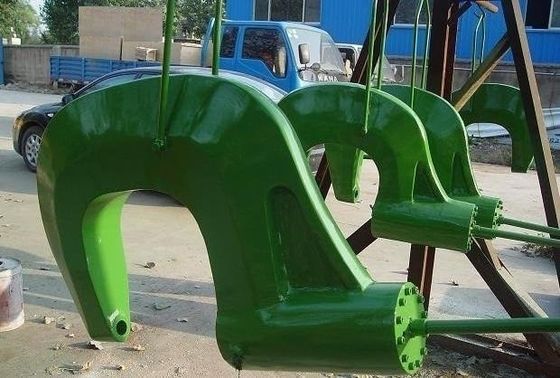

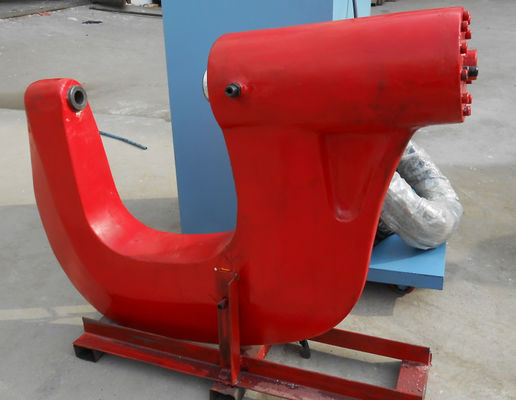

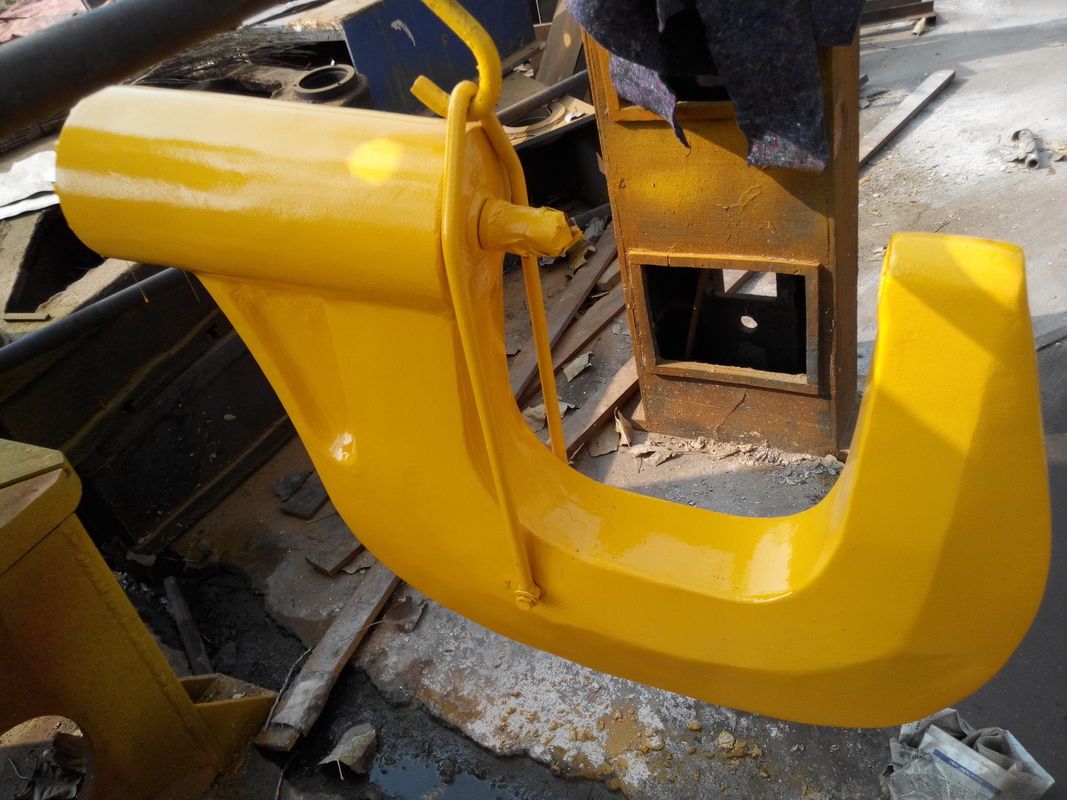

1. Rivet clamp
Rivet body and hydraulic cylinder are connected by a fixing nut. At the bottom of the cylinder is a detachable handle. One rivet head is mounted in the face of plunger end of hydraulic cylinder, and performs reciprocating motion together with the plunger. The other rivet head is fixed in the other end face of the rivet body.
2. Hydraulic control system
Hydraulic control system (pump station) is placed at one side of the rivet. The whole system is driven by a motor to input pressure oil from the high pressure oil pump to hydraulic cylinder through overflow valve, electromagnetic reversing valve, pressure gauge, high pressure oil pipe, etc., to realize reciprocating motion of the plunger.
The machine is controlled by inching, semi-automatic or automatic.



MAIN PARAMETERS

Model

Item

YM25T YM42T-1 YM42T-2
Riveting pressure(KN) 250 420 420
System pressure
(Mpa)
25 25 25
Travel(mm) 150 200 200
Center of height(mm) 150 300 360
Openess(mm) 200 300 360
Rivet dia.(mm) 10~12 10~18 10~18
Dimension(mm) 870x140x400 1110×210×610 1200×220×710
Net weight (Kg) 180 320 380

25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 0




25T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 125T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 225T Hydraulic Riveting Machine , 420kN Industrial Rivet Machine 3
