XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90

XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90
XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90 XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90 XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90 XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90 XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90 XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90

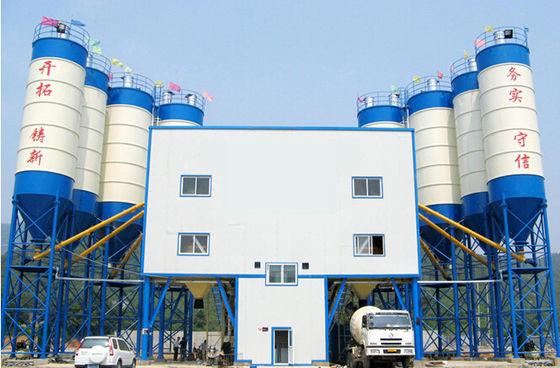

Large Image :  XDEM 1500L 90m3/H Small Portable Concrete Batch Plant HZS90

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE ISO
Model Number: HSZ90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD50000-80000
Packaging Details: Nude
Delivery Time: 45 working days
Supply Ability: 500 sets per month
Detailed Product Description
Theoretical Productivity: 90m3/h Dump Height: 4m
Model Of Main Mixing Machine: MAO2250/1500 Mixing Power: 2X30kW
Aggregate Bin Volume: 3X16m3 Nominal Volume Of Main Mixing Machine: 1500L
Production Cycle: 60s
High Light:

90m3/h small portable concrete batch plant

,

1500L small portable concrete batch plant

,

90m3/h wet batch concrete plant

XDEM HZS90 concrete batching mixing plant



Concrete Batching Plant HZS90 Features:

· High efficiency, low fuel consumption, and environmental care.
· Modular function and design; quick installation and site transfer.
· Equipped with Italy SICOMA dual-horizontal axis forced type main mixing machine, featuring superior mixing capacity and high reliability.
· Measurement, control and signal transfer element all adopt products of world famous brand; independent measuring of various kinds of materials (or cumulative measurement), stable performance and accurate measurement.
· Advanced industrial computer + PLC control mode, inferior PLC executive signal sampling and output control, superior industrial computer dynamic displays the production process and management. It can achieve full automatic control and manual control, featuring simple operation, friendly interface, high reliability and flexible expanding.
· It can also be designed according to the requirements and conditions (i.e. site, output, environmental care, structural appearance).



Concrete Batching Plant HZS90 Diameter:

Items Unit HZS90/2HZS90
Theoretical productivity m3/h 90/180
Dump height m 4
Model of main mixing machine   MAO2250/1500
Mixing power kW 2X30
Nominal volume of main mixing machine L 1500
Production cycle s 60
Aggregate diameter mm ≤80
Aggregate bin volume m3 3X16
Powder bin (optional)volume t 3×100
Batching plant capacity L/bin 2400
Inclined belt conveyor capacity t/h 600
Concrete spiral conveyor capacity t/h 90
Coal ash spiral conveyor capacity t/h 60
Standard installed capacity kW 145/290
Weighing range & accuracy of sand/stone kg (0~2000)±2%
Weighing range & accuracy of cement kg (0~800)±1%
Weighing range & accuracy of coal ash kg (0~400)±1%
Weighing range & accuracy of water kg (0~400)±1%
Weighing range & accuracy of additives kg (0~50)±1%
