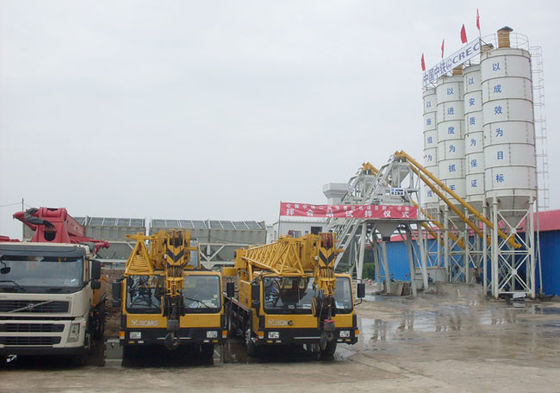

XDEM 2X90kW 300m3/H Stationary Concrete Batching Plant HZS300

XDEM 2X90kW 300m3/H Stationary Concrete Batching Plant HZS300
XDEM 2X90kW 300m3/H Stationary Concrete Batching Plant HZS300

Large Image :  XDEM 2X90kW 300m3/H Stationary Concrete Batching Plant HZS300

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE ISO
Model Number: HSZ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80000-150000
Packaging Details: Nude
Delivery Time: 45 working days
Supply Ability: 500 sets per month
Detailed Product Description
Production Capacity:: 300m3/h Dump Height: 4m
Model Of Main Mixing Machine: JS5000 Mixing Power: 2X90kW
Production Cycle: 60s Aggregate Diameter: ≤80mm
Aggregate Bin Volume: 4X30m3
High Light:

300m3/h stationary concrete batching plant

,

2X90kW stationary concrete batching plant

,

300m3/h cement mixing plant

XDEM HZS300 concrete batching mixing plant

· High efficiency, low fuel consumption, and environmental care.

· Modular function and design; quick installation and site transfer.
· Equipped with Italy SICOMA dual-horizontal axis forced type main mixing machine, featuring superior mixing capacity and high reliability.
· Measurement, control and signal transfer element all adopt products of world famous brand; independent measuring of various kinds of materials (or cumulative measurement), stable performance and accurate measurement.
· Advanced industrial computer + PLC control mode, inferior PLC executive signal sampling and output control, superior industrial computer dynamic displays the production process and management. It can achieve full automatic control and manual control, featuring simple operation, friendly interface, high reliability and flexible expanding.
· It can also be designed according to the requirements and conditions (i.e. site, output, environmental care, structural appearance).



Concrete Batching Mixing Plant HZS300 Main Configuration:

Items Unit HZS300
Theoretical productivity m3/h 300
Dump height m 4
Model of main mixing machine   JS5000
Mixing power kW 2X90
Nominal volume of main mixing machine L 5000
Production cycle s 60
Aggregate diameter mm ≤80
Aggregate bin volume m3 4X30
Powder bin (optional)volume t 4×300
Batching plant capacity L/bin 8000
Inclined belt conveyor capacity t/h 1500
Concrete spiral conveyor capacity t/h 180
Coal ash spiral conveyor capacity t/h 110
Standard installed capacity kW 420
Weighing range & accuracy of sand/stone kg (1800~6000)±2%
Weighing range & accuracy of cement kg (760~2500)±1%
Weighing range & accuracy of coal ash kg (400~1400)±1%
Weighing range & accuracy of water kg (400~1200)±1%
Weighing range & accuracy of additives kg (20~140)±1%

XDEM 2X90kW 300m3/H Stationary Concrete Batching Plant HZS300 0
