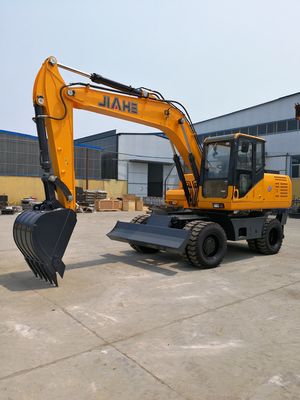

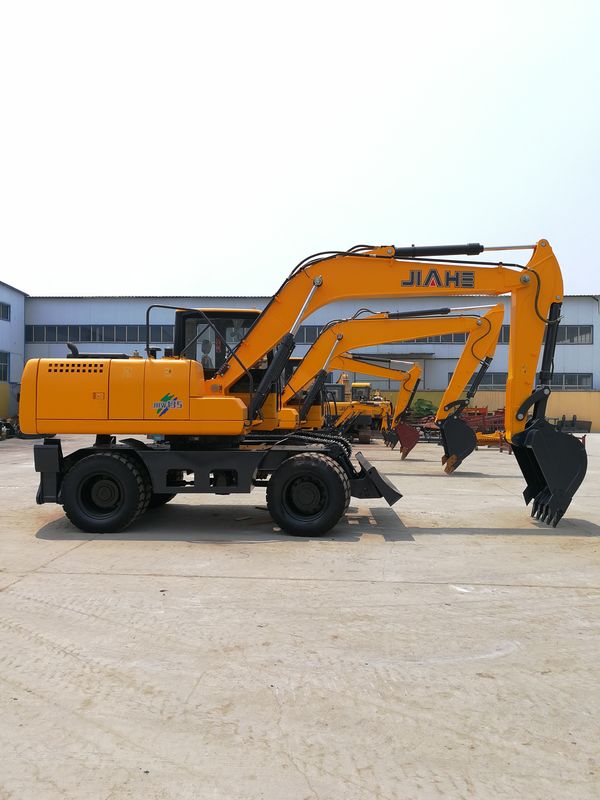

32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder

32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder
32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder 32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder

Large Image :  32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder

Product Details:
Place of Origin: China
Brand Name: JIAHE
Certification: ISO
Model Number: JHW135
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD55800
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 UNIT PER month
Contact Now
Detailed Product Description
Power: 85kw Maximum Digging Height: 8930mm
Maximum Digging Depth: 4750mm Tire Model: 9.00-20
Machine Weight: 13500kg Overall Dimension (L*W*H): 7520mm*2570mm*3425mm
Highlight:

13.5ton wheel loader excavator

,

32km/h wheel loader excavator

,

32km/h 4 wheel excavator

13.5ton wheel excavator good quality 13Ton JIAHE JHW135 Wheel excavator




MAIN FEATURES:
▲The excavator is an economic type wheel excavator ,which matched YUCHAI engine with strong power and low noise and low consumption and environment protection
▲Fitted imported brand main pump .
▲ Adopted imported valves and swing motor and hydraulic driving system
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance .
▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.
>> MAIN CONFIGURATION:

NODESCRIPTION









1

1-China Yuchai YC4D115Z type engine , 85kw/2200rpm.tier III /stage III emission
2-KAWASAKI brand pump
3-PARKER main valves
4-Korea SUNJIN brand slewing motor and hydraulic driving motor
5-Luxury full seal cabin with A/C and LCD display and LED lights etc.
6-Hydraulic pilot servo operation system
7-Tire model: 9.00-20(Number-8)
8-With broken pipeline system
9- Bucket capacity: 0.6m³
10-With outrigger and front Dozer blade
11-Hydraulic driving system
12-driving type: 4WD

2

OPTIONAL ACCESSORIES:
1-AUGER
2-BREAKER
3-LOG GRAPPLE



>> SPECIFICATIONS:

ENGINE
Emission StandardTier 3/ Stage III
Make YUCHAI
Model YC4D115Z
Power /Rotation speed85kw(115HP)@2200rpm
Number of cylinder4
WORKING RANGE
Maximum Digging height8930mm
Maximum Dumping height6520mm
Maximum Digging depth4750mm
Maximum Vertical digging depth4200mm
Maximum Digging radius8000mm
Minimum swing radius2445mm
Maximum lifting height of dozer blade400mm
Maximum cutting depth of dozer blade100mm
DRIVING SYSTEM
Maximum Travel speed19/32km/h
Tire model9.00-20
Number of tires 8
Driving typeHydraulic controlling
Steering typeSteering wheel
TRANSMISSION
Type Free shift(Stepless gear box)
BRAKE SYSTEM
Driving brake(Front axle)Air break+oil brake
Driving brake(Rear axle)Air break+oil brake
Parking brakeDisc break
Emergency brakeFoot brake
PERFORMANCE PARAMETER
Standard Bucket capacity0.6m³
Swing speed12rpm
Maximum Grade ability25°
Maximum Bucket digging force91KN
Maximum Arm digging force55KN
Hydraulic system pressure32Mpa
Machine weight13500kg
Fuel tank252L
Hydraulic oil tank160L
Engine oil capacity11L
MACHINE SIZE
Overall dimension (L*W*H)7520mm*2570mm*3425mm
Height of cabin3015mm
Wheel base2600mm
Tread 1944mm
Minimum Ground clearance350mm
Swing radius at tail2332mm

>> MAIN DIMENTIONS:



32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder 0



32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder 1

32km/H 13.5ton Wheel Loader Excavator With 4 Cylinder 2
