Product Details:
Payment & Shipping Terms:
|
| Operation Weight: | 7000kg | Bucket Capacity: | 1.0 M3 |
|---|---|---|---|
| Length(with Bucket On Ground): | 7077(mm) | Rated Load Bucket Capacity 1.0(m3) 4 Max. Load Breakout Force: | >40kN |
| Dump Reach: | 726(mm) | Dump Angle At Any Position: | ≥43.50 |
| High Light: | wz30-25 backhoe loader,7ton Backhoe Loader,7ton front end loaders |
||

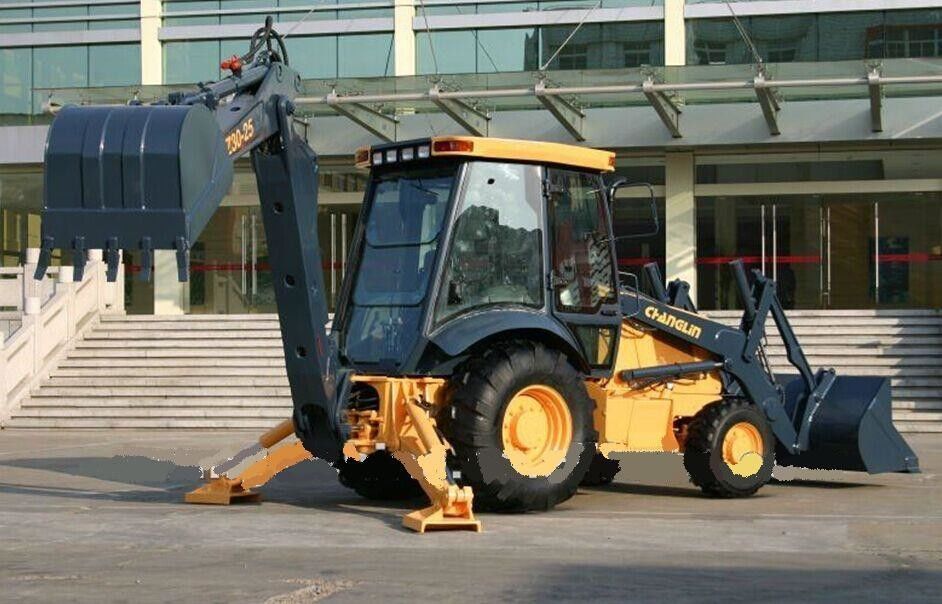

Changlin WZ30-25 Backhoe loader High Quality 7ton Backhoe Loader with cheap price
1. Feature of CHANGLIN WZ30-25 Backhoe Loader with Cummins
Backhoe loader, also known as a loader backhoe, is engineering vehicles belonging to construction machinery/construction equipment. The backhoe loader commonly composes a tractor, fitted with a shovel/bucket on the front and a small backhoe on the back.
Features of Backhoe Loader WZ30-25:
2. Parameter of CHANGLIN WZ30-25 Backhoe Loader with Cummins
|
Overall Dimension |
||
|
1 |
Length(with bucket on ground) |
7077(mm) |
|
2 |
Width |
2350(mm) |
|
3 |
Load Bucket width |
2313(mm) |
|
4 |
Height(To the top of the cab) |
2720 (mm) |
|
5 |
Height(To the top of the digging pole) |
3424 (mm) |
|
6 |
Wheelbase |
2155.5(mm) |
|
7 |
Back wheel Tread |
1557(mm) |
|
8 |
Fore wheel Tread |
1714(mm) |
|
9 |
Min. ground clearance |
355(mm) for 2WD 275(mm) for 4WD |
|
Main Loading Technical Specification |
||
|
1 |
Rated load |
1700(Kg) |
|
2 |
Operating weight |
7000KG |
|
|
Max lifting capability |
>2500KG |
|
3 |
Rated load bucket capacity |
1.0(m3) |
|
4 |
Max. load breakout force |
>40kN |
|
5 |
Max. dump clearance |
2611(mm) |
|
6 |
Dump reach |
726(mm) |
|
7 |
Dump angle at any position |
≥43.50 |
|
8 |
Min. turning radius |
|
|
|
(1) Outside of bucket |
5280(mm) for 2WD 5670(mm) for 4WD |
|
|
(2) Center of front wheel |
3795 (mm) for 2WD 4300(mm) for 4WD |
