| Operation Weight: | 8125kg | Bucket Capacity: | 1.1 M3 |
|---|---|---|---|
| Rated Power: | 85kw | Mini Turning Radius: | 4500mm |
| Travel Speed: | 0~28km/h | Work Pressure: | 16MPA |
| Highlight: | 85kw Earth Excavation Machine,6T Earth Excavation Machine,85kw earth moving contractors |
||

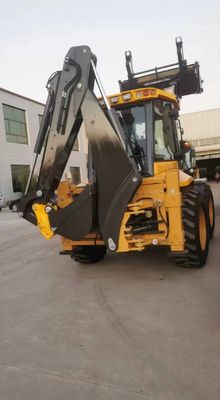

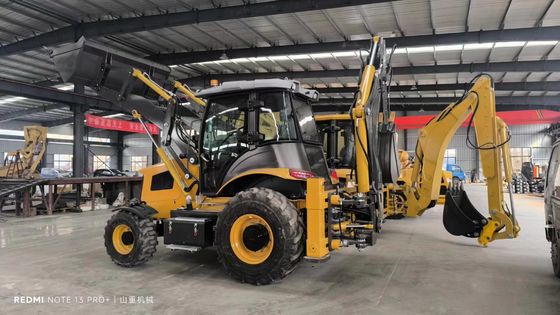

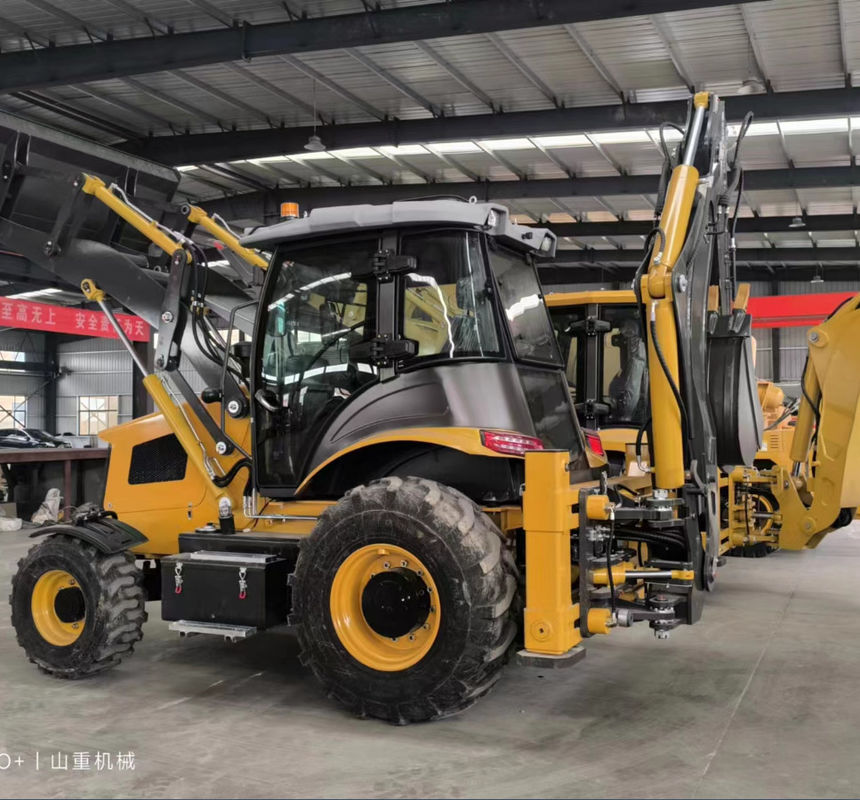

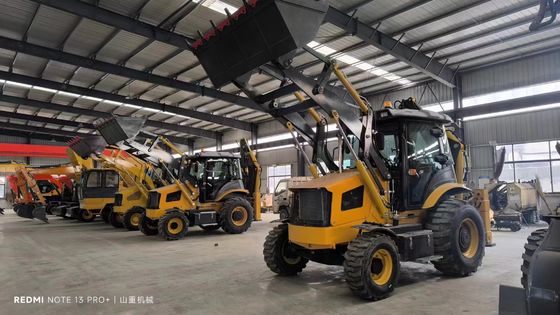

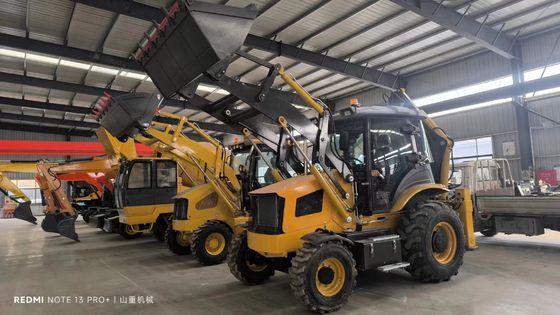

XDEM Mini backhoe Loader Cheap WZ40-28 Backhoe Loader 8Ton backhoe loader
Specification of WZ40-28 backhoe loader

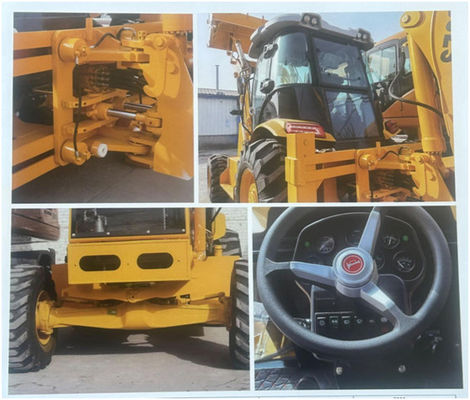

The reinforced excavation boom and stick are adopted, with high reliability; The boom swing is damped
and buffered to ensure smooth operation Stable and smooth; lt can be equipped with standard stick or
telescopic stick to meet the diversified needs of customers
Integrated frame design, increased load-bearing axle, four-wheel drive, air brake, customized gearbox
Front engine, new luxury interior cab, luxury steering wheel, rotating seat, comfortable work type outriggers with locking or H-type outriggers are optional, high-strength wear-resistant tires,and long service life.
| Transport Dimension | |
| L＊W＊H | 5919x2217x3764mm |
| Wheel base | 2200mm |
| Min.Ground | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 38KN |
| Weight | 8125kg |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping height | 2742mm |
| Bucket Dumping distance | 1062mm |
| Backhoe Capacity | 0.3m³ |
| Max.Digging Depth | 4082mm |
| Engine | |
| Model | YC4A105Z-T20 |
| Rated Power | 85KW |
| Rated Speed | 2400r/min |
| Steering System | |
| Model of Steering | BZZ5-250 |
| Steering Angle | ±36° |
| Min.turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Torque Converter | YJ280 |
| Gear box type | Fixed shaft power transmission |
| Gears | 2F/2R |
| Max.Speed | 22Km/h |
| Axle Manufacturer | YUNYU Axle Factory |
| Main Transmission Type | Double Reduction |
| Tyre Model | 14-17.5/19.5L-24 |
| Pressure | 0.22 Mpa |
| Brake System | |
| Service Brake | Air-Oil Clamp Brake,External Type,Self-regulation,Self-balance |
| Emergency Brake | Operation Power Implementing brake/Manual Operation Power Terminating |
| Hydraulic System | |
| Excavator grapple digging force | 46.5KN |
| Bucket digging force | 31KN |
| Total time | 10.5s |
