Product Details:
Payment & Shipping Terms:
|
Type: | New | Model: | G16NX |
---|---|---|---|
Brand Of Chassis: | NAC | Type Of Driving: | Left-hand Drive |
Urb Weight: | 17600 Kg | Maximum Gross Weight: | 31000kg |
Wheel Base: | 2100+3300+1350mm | Tyre: | 12.00R20 |
Highlight: | 16m3 volumetric mixer truck,16m3 cement mixing truck,280kw cement mixing truck |
XDEM G16NX 16m3 280kw Concrete Mix Truck Industrial Cement Mixer
16 cubic meters concrete mixer truck Diameter:
Type | Model | Unit | G16NX |
Performance of mixing drum | Geometric volume | m³ | 24.9 |
Mixing volume | m³ | 16 | |
Maximum diameter of drum body | mm | 2432 | |
Length of mixing drum | mm | 7273 | |
Angle of inclination | ° | 9.5 | |
Rotating speed | r/min | 0~14 | |
Charge speed | m³/min | ≥3 | |
Discharge speed | m³/min | ≥2 | |
Residue ratio of discharge | % | <0.7 | |
Range of slump | cm | 5~21 | |
Hydraulic system | Oil pump | international brand | |
Motor | international brand | ||
Reduction gears | international brand | ||
Hydraulic circuit | Closed type | ||
Water supply | water tank capacity | L | 450 |
Way of water supply | Pneumatic | ||
Complete machine | Brand of chassis | NAC | |
Chassis model | NXG5330THBK4X | ||
Type of driving | Left-hand drive | ||
Curb weight | kg | 17600 | |
maximum gross weight | kg | 31000 | |
Type of drive | 8×4 | ||
Wheel base | mm | 2100+3300+1350 | |
Tyre | 12.00R20 | ||
Means of power takeoff | Power takeoff by flywheel | ||
Notice model | |||
External dimensions | (length×width×height)mm | 11460×2500×3995 | |
Engine | Model | WP12NG380E30 | |
Rated power | Kw/r/min | 280 | |
Displacement | L | 11.596 | |
Emission standard | GB III |

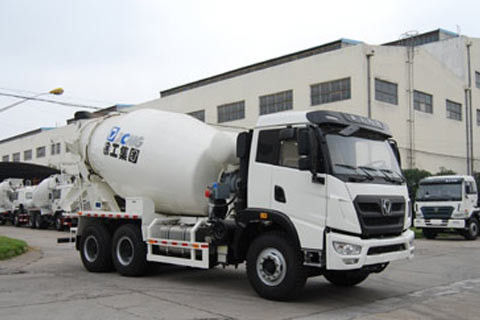

16 cubic meters concrete mixer truck Picture:
We Nanyang Xinda Electro-Mechanical (XDEM), is an senior international trading company mainly dealing construction machinery, which was set up and supported by local dealer ship of XCMG, LIUGONG, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as XCMG, LIUGONG, SANY, YTO etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
We have the largest-size factories for construction machinery and industrial equipments in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production. Our factories are mainly located in Jiangsu, Henan, Hubei provinces in China.
