Product Details:
Place of Origin: Henan,China
Brand Name: XDEM
Certification: CE ISO9001
Model Number: JZC350 JZC500 JZC700
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2250-USD4580
Delivery Time: 15-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 set per months
Detailed Product Description
Productivity: 10-35m3/h Product Name: Cocnrete Mixer
Discharging Capacity(L): 350 500 750 Water Pump Motor(kw): 0.55 0.75 1.1
Charging Capacity(L): 560 800 Reclaiming Capacity: 750L 500L 350L
Mixing Power: Diesel Or Electric Water Supply Mode: Water Pump
Place Of Origin: Henan,China Outline Dimension: 2760*2170*2780mm
Discharge Way: Automatic Warranty: 1 Year
High Light:

JZC350 Drum Concrete Mixer

,

Electric Diesel Engine Drum Concrete Mixer

,

35m3/h Drum Concrete Mixer

JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H 0

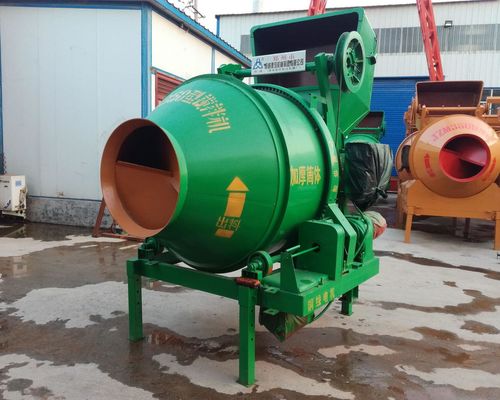

JZC series drum concrete mixer

JZC series are self-falling drum concrete mixer with positive rotation and reverse discharge ,it can mix plastic and semi-dry concrete evenly. Mixers are light weight and has two wheels for easy moving on the road. It is a kind of bipyramid reversal discharging mixer machine; the drum is driven with the gear; during working, It is mixing in positive rotation and discharging in reversal revolution. It can mix the plastic and half-dry hard concrete. It is applicable to the common construction working site, road, bridge and each kind of precast product factory. The hopper falls below the ground (full climbing machine), which can reduce the labor intensity of the loading workers. If it is used with a matching batching machine, it can form a simple electronic metering mixing station. Compared with the semi-climbing mixer, it reduces the load of the main engine mixing reducer and increases the reducer for lifting the hopper.





  Specifications


Model
JZC350
JZC500
JZC750
Discharging capacity(L)
350
500
750
Feed capacity(L)
560
800
1200
Charging capacity(L)
560
800
1200
Productivity(m3/h)
10-14
18-20
25-30
Drum rotating speed(r/min)
14
13
12
Max. aggregate size(mm)
40-60
60-80
60-80
Water feeding precision(%)
≤2
≤2
≤2
Mixing motor(kw)
5.5
7.5
11
Hoisting motor(kw)
4.5
5.5
5.5
Water pump motor(kw)
0.55
0.75
1.1
Overall dimensions(mm)
2760*2170*2780
3320*2460*3650
3810*2120*3730
Total weight(kg)
1950
2600
3200





JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H 1



Features
1.Self-falling and advanced movable concrete mixer&easy to control

2.Mixing evenly and produce high quality concrete

3.compact structure & light weight

4.Easy moving with two wheels itself

5.Different model and design to meet
client’s independent demand



JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H 2JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H 3JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H 4JZC350 JZC500 JZC700 Drum Concrete Mixer Electric Diesel Engine 35m3/H 5
