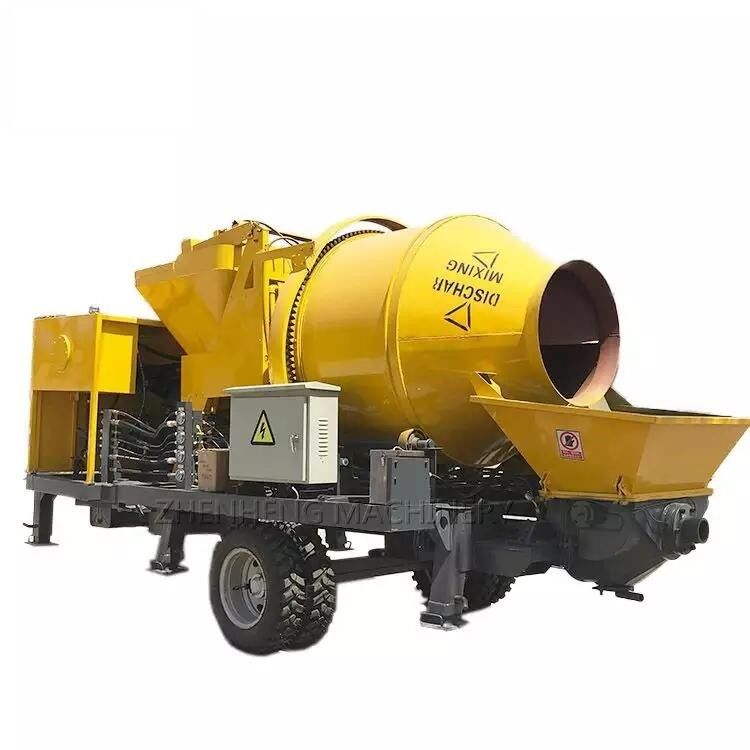

Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40

Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40
Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40

Large Image :  Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40

Product Details:
Place of Origin: Henan,China
Brand Name: XDEM
Certification: CE ISO9001
Model Number: JBS40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD19000-20000
Delivery Time: 15-25days
Payment Terms: L/C, T/T
Supply Ability: 50set per month
Contact Now
Detailed Product Description
Theoretical Delivery Volume Of Concrete: 40(m3/h) Mixing Power: 5.5Kw
Reclaiming Capacity: 0.45m³ Water Supply Mode: Water Pump
Discharge Way: Automatic Productivity: 10-14 M3/H
Warranty: 1 Year Hopper Lifting Speed: 15(m/min)
Stirring Shaft Speed: 1480(r/min) Charging Capacity: 0.56m³
Speed Of Mixing Drum: 1min Working Cycle Period: 72s
Outline Dimension: 4500x2200x2800(mm) Weight (KG): 5000 Kg
Concrete Machinery Type: Concrete Mixing And Pumping Machine Rated Feed Capacity: 0.56(m3)
Rated Discharge Capacity: 0.45(m3) Unloading Method: Automatic
Stirring Power: 5.5(kw)
Highlight:

5.5Kw Concrete Mixing Pumping Machine

,

JBS40 Mobile Concrete Production Line

,

Automatic Concrete mixing pumping machine Mobile

Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40 0

Brief Introduction of Concrete mixer Pump

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
Items
Parameters




Whole performance of machine
Max. theo. concrete output
40m3/h
Max.concrete pumping pressure
10MPa
Distribution valve type
S Valve
Concrete cylinder diameter×stroke
Ф180×1100mm
Hopper capacity
550L
Outlet diameter
Ф150mm




Power syste
Winding motor power
5.5KW
Stir the motorPower
4.5KW
Water pump motor powe
0.55KW
Electrical engineering power
45KW
Rotate speed
1480r/min


Hydraulic system
Circuit type
Open circuit
Pumping system pressure
28MPa
Mixing system pressure
6-8MPa
Capacity of oil tank
370L
The biggest transportation is away from vertically (/Level)
120/500m



Other parameters
Max.aggregate diameter
Scree:40 50mm
Inside diameter of delivering pipe
Ф125mm
Dimensions:length×width×height
4200x2300x3150mm
Total weight
4500KG



Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40 1Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40 2

Mixer with pump

1.450 drum mixer wear-resistant steel plate 8 wall thickness 2. Dual tires can run smoothly on rough roads 3. There are lifting jacks at the traction place to facilitate lifting 4. Customized color Machine tough guy can also change color 5. Tips when working. As long as the equipment is leveled when working, the rollers will not be worn. 6. Customizable hydraulic outriggers Double tire design 7. Kawasaki 112 main oil pump, quality assurance, durable 8.45kW Weihai Juli copper core motor 9. Wireless remote control 10. Separate gear pump controls hopper stirring, clear division of labor, stable performance and easy maintenanceConcrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40 3Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40 4Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40 5Concrete Mixing And Pumping Machine Mobile Concrete Production Line JBS40 6
