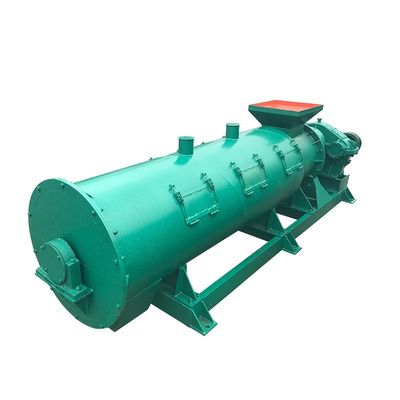

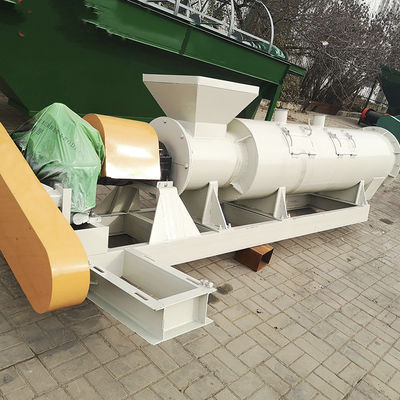

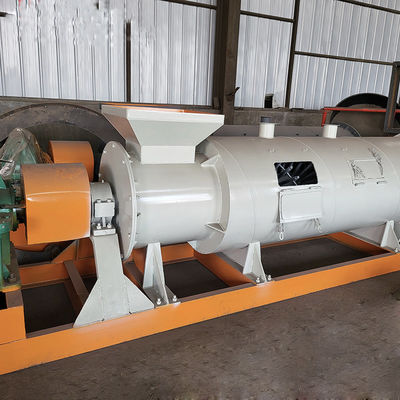

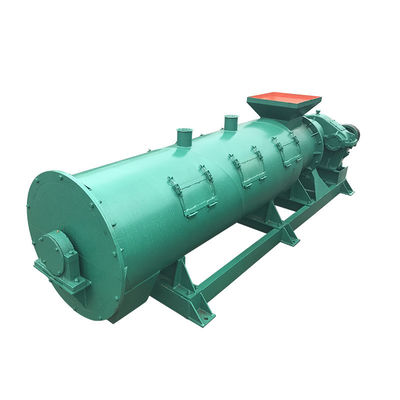

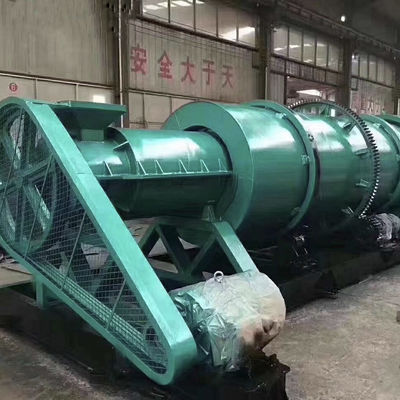

XDEM Tooth Stirring Granulator High Granulating Rate New Type Stirring Teeth Organic Fertilizer Granulator

Large Image : XDEM Tooth Stirring Granulator High Granulating Rate New Type Stirring Teeth Organic Fertilizer Granulator

Product Details:

Place of Origin:	Henan,China
Brand Name:	XDEM

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD4800-11600
Delivery Time:	22-30days
Payment Terms:	L/C, T/T
Supply Ability:	50sets per month

Contact Now

Detailed Product Description

Product Type:	FERTILIZER	Usage:	Making Granule
Weight:	3000 Kg	Voltage:	380V 50Hz
Size Of Feeding Material:	50 Mesh	Installation Angle:	2°-2.5°
Raw Material:	Animal Chicken Manure	Dimension(LWH):	450010001500mm
Highlight:	organic fertilizer granulator with high granulating rate , stirring teeth granulator for organic fertilizer , XDEM new type fertilizer granulator

Product introduction

Organic fertilizer granulator is also known as agitating tooth granulator. Organic fertilizer granulator is used for granulation of organic fertilizer. Due to its high granulation rate, stable operation, solid and durable equipment, long service life, and solid base design, it is used by many organic fertilizer manufacturers to make its operation more stable. The specification and model of churn granulator are 400600 800, 1000, etc. can also be customized according to user needs. Organic fertilizer mixing teeth granulator: Features: The particles produced are 2-4mm spherical. 2. High organic content, pure organic high matter granulation. 3. The organic particles can be inlaid and grow up with each other under a certain force, which can be increased less during granulation Amount of binder. 4. The granules are solid, which can reduce drying heat and drying energy consumption after granulation. 5. The organic matter after fermentation does not need to be dried, and the moisture content of raw materials can be 20-40%.

Specification

Model	Particle size(mm)	Power(kw)	Dip angle(º)	Overall dimensions(mm)
GZLJ-400	1~5	22	1.5	35001000800
GZLJ-600	1~5	37	1.5	420016001100
GZLJ-800	1~5	55	1.5	420018001300
GZLJ-1000	1~5	75	1.5	460022001600
GZLJ-1200	1~5	90	1.5	470023001600
GZLJ-1500	1~5	110	1.5	540027001900

Working principle

1. The impeller granulator uses the mechanical stirring force of high-speed rotation and the resulting aerodynamic force to make fine powder.The process of mixing, granulation, spheroidizing and densification is continuously realized in the machine, so as to achieve the purpose of granulation. grain.The shape is spherical, the particle size is generally between 1.5~4mm, and the granulation rate of 2~4.5mm particles is ≥ 80%.The diameter can be properly adjusted by the material mixing amount and spindle speed. Generally, the lower the mixing amount, the higher the speed the smaller the particle is, the larger the particle is. 2. Tooth stirring granulator is used to granulate fermented organic raw materials Compared with the disc granulator, the finished product rate is high, the particles are uniform, smooth, high strength, low moisture, and the temperature after forming is about 45 ℃. After the fermented raw materials are crushed, they are mixed with a blender to make the water content of the materials 35% - 40%. When the materials enter the mixing tooth granulator, they can be processed into spherical particles. The water content is large and the water content is small. The two are in direct proportion. It uses the characteristics of organic fertilizer raw materials that are inlaid and enlarged under the action of each other to produce round, smooth and high strength particles. It can also add necessary additives, adhesives, etc. The raw materials of organic fertilizer applicable to the churn granulator include: livestock manure, compost fertilizer, green manure, sea manure, cake fertilizer, peat, soil and miscellaneous fertilizer, three wastes, microorganisms and urban domestic waste, etc. The qualified granulation rate of the machine is more than 90%, which is suitable for a variety of different formulas. The compressive strength of organic fertilizer is higher than round Disc and drum, big ball rate is less than 15%. This machine is suitable for direct granulation of organic fertilizer after fermentation, omitting drying process The manufacturing cost is greatly reduced, so the agitating tooth granulator is loved by the majority of users The fertilizer granulator can be equipped with other equipment to form a production line.

Applicable scope of equipment

Peat, sludge, livestock manure, lignite, fermented straw, etc. as raw materials for organic fertilizer production Granulation. The above data are based on peat, livestock manure and fermented straw. Other raw materials are based on experimental data subject to. Instructions 1... Before starting the machine, check whether the joints of the machine are loose, and pay special attention to whether the auger head is loose. 2. Do not start the machine with load. 3. Stop feeding when shutting down the machine, and turn off the power supply after the materials inside the machine are completely discharged. Long term shelving Remove the materials in the machine body to prevent sticking. 4. Do not enter the machine with iron, stone, wood stick and other sundries to prevent damage to the machine. 5. When starting the main motor, first pay attention to the tightness of the triangular belt. When the triangular belt is too loose, it slips and the granulator does not rotate correctly Too tight will affect the service life of bearing and V-belt. Then check whether the rotation direction is correct, such as the opposite Rotate to, stop and adjust.
