XDEM Road Crack Repair Grouting Machine Hand Push Asphalt Small Road Caulking

Name: XDEM Road Crack Repair Grouting Machine Hand Push Asphalt Small Road Caulking
Brand: XDEM
SKU: XDEM
Price: 5971 USD
Availability: InStock
Rating: 4.9 (163 reviews)

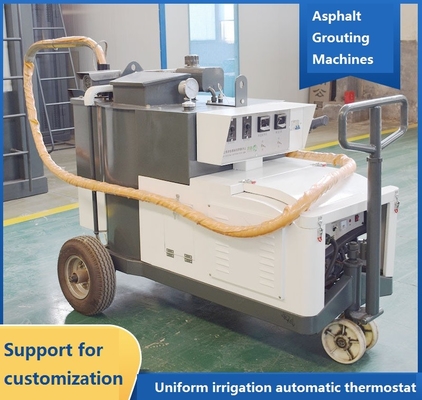

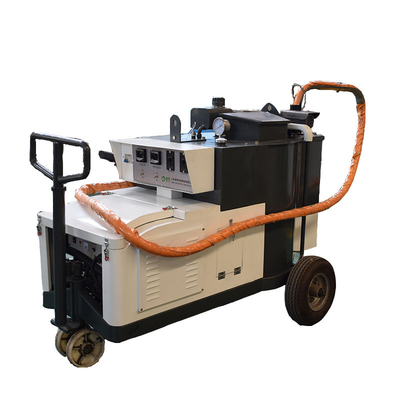

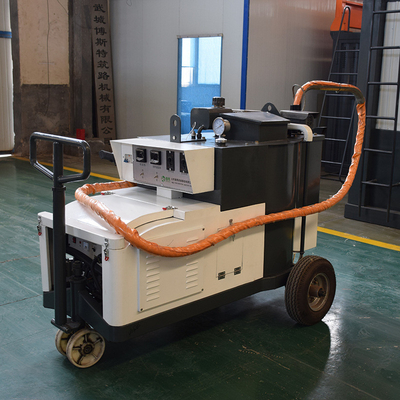

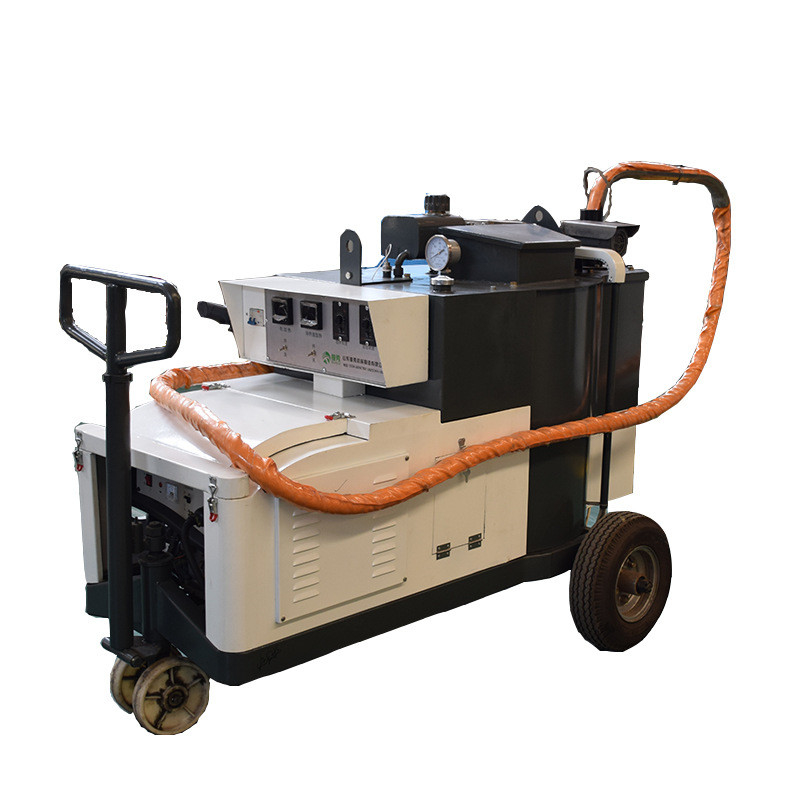

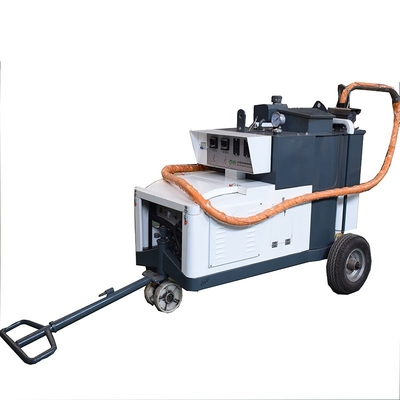

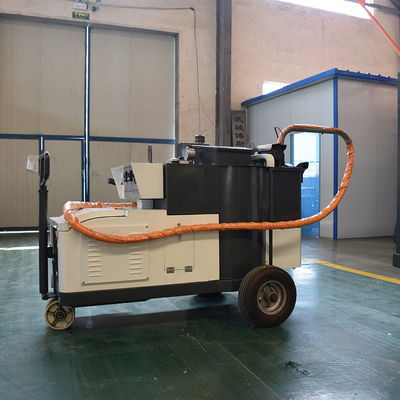

Large Image : XDEM Road Crack Repair Grouting Machine Hand Push Asphalt Small Road Caulking

Product Details:

Place of Origin:	Henan,China
Brand Name:	XDEM

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD5971
Delivery Time:	22-30days
Payment Terms:	L/C, T/T
Supply Ability:	15sets per month

Contact Now

Detailed Product Description

Types Of Road Machinery:	Grouting Machine	Diameter Of Roller Shaft:	1(mm)
Paving Width:	30 (mm)	Milling Width:	100 (mm)
Dimension(LWH):	19007501400	Voltage:	220v
Power:	3KW	Rated Power:	3 (kw)
Rated Speed:	2600 (rpm)	Paving Thickness:	3 (mm)
Paving Speed:	30 (m/min)	Milling Depth:	50 (mm)
High Light:	Road Crack Repair Grouting Machine , Hand Push Asphalt Grouting Machine , 3KW Asphalt Grouting Machine

Product Description

Specification

Movement	both traction and hand-push
Weight	260kg
External dimensions (without tube body)	19007501400 (LWH)
Generator	Ito generator set.
Output power	50Hz
Rated power	3kw
Electric voltage	220V
Burner	Italian original imported diesel burner
Burning value	40000Kcal
Melting time	less than 40 minutes
Electric heating hose	heating hose length 6m, electric heating throughout, smoother glue discharge
Heat transfer oil	40 litres
Fuel tank	30 litres
Mixing method	electric mixing
Volume of hot melt kettle	100 litres
Heating method	indirect heating with heat-conducting oil
Asphalt pump	High pressure wear-resistant anti-clogging asphalt pump, the discharge pump adopts stepless speed control motor to regulate the flow size of sealant.
Steering mode	universal rotation of the rear wheels, flexible steering and easy movement.

Performance features

1, Small size, light weight and easy to move. Equipped with ramp stopping device, easy to operate. Uniform and efficient grouting. 2, Indirect heating of the caulking material by heat-conducting oil, effectively preventing the high temperature carbonization of the caulking material. 3, Equipped with Italian original imported "Rialu" diesel burner, which makes the heating more efficient. 4, Adopt advanced control instrument, which can clearly display and adjust the temperature of electric heating hose and heat-conducting oil, so that the operator can understand at a glance. 5, The heating hose is electrically heated throughout the whole process, can be rotated 360 degrees, and does not need to be cleaned during use. 6, The discharge pump is built-in to avoid bad preheating and leakage, and the discharge pump is controlled by an infinitely variable speed motor, which can precisely regulate the flow of sealant according to the need.
