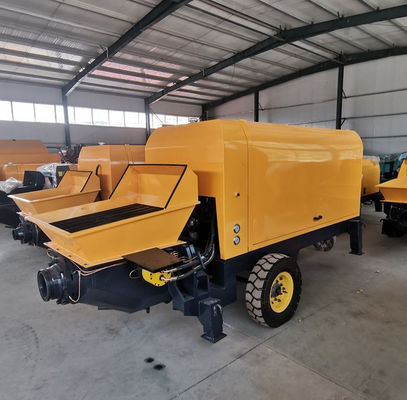

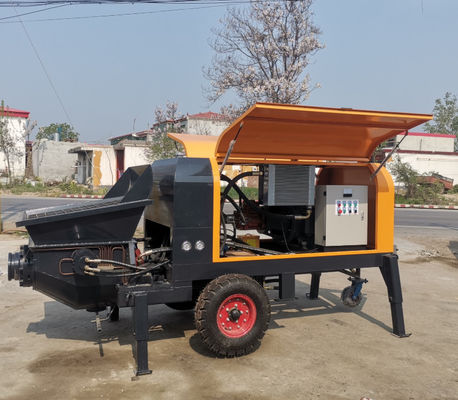

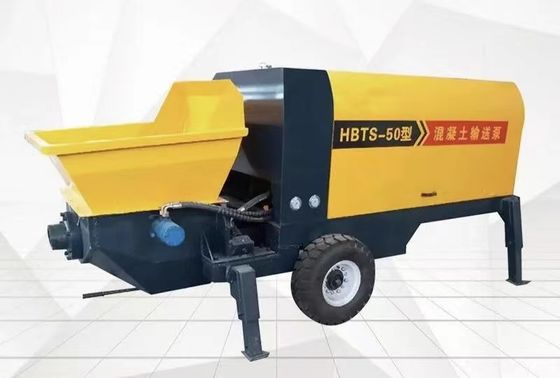

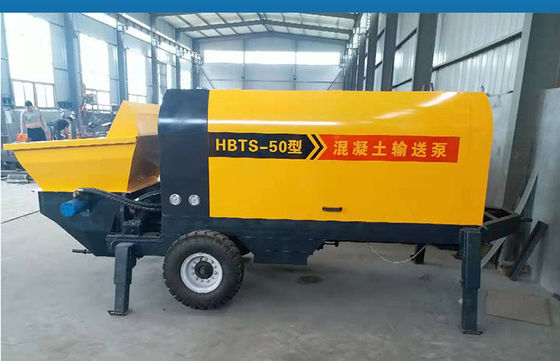

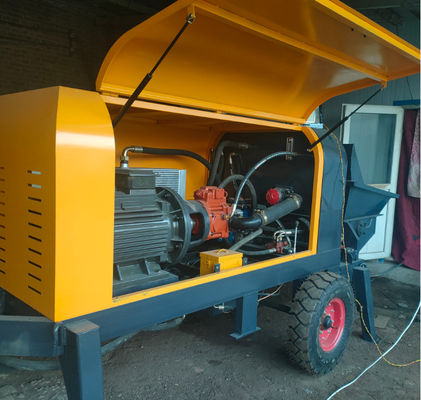

55KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M

55KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M
55KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M

Large Image :  55KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M

Product Details:
Place of Origin: Henan,China
Brand Name: XDEM
Certification: CE ISO9001
Model Number: RM-50
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 3100-5500
Delivery Time: 15-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50set per months
Contact Now
Detailed Product Description
Concrete Machinery Type: Drag Pump Concrete Maximum Outlet Pressure: 12-25Mpa
Motor Power: 55KW Maximum Particle Size Of Aggregate: ≤40mm
Max. Horizontal Conveying Distance: 350M Theoretical Delivery Volume Of Concrete: 35m3/h
Total Weight: 3200 Kg Unloading Method: Hydraulic
Core Components: Motor, Pump, Gearbox, Engine Max. Vertical Conveying Distance: 120M
High Light:

Concrete Delivery Pump 25Mpa

,

55KW Concrete drag pump

,

Gearbox Concrete pump

55KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 055KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 155KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 255KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 355KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 455KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 555KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 6

Specifications
Product Information
RM-15
RM-20
RM-25
RM-30
RM-40
RM-50
Maximum theoretical delivery volume
10-12 CBM
15-18CBM
20CBM
25CBM
35CBM
45CBM
Maximum outlet pressure
10-15Mpa
10-15Mpa
10-15Mpa
12-15Mpa
12-25Mpa
12-25Mpa
Maximum particle size of aggregate
≤20mm
≤20mm
≤10-30mm
≤30mm
≤30-40mm
≤40mm
Bore*diameter
Φ120*360mm
Φ120*500mm
Φ140*600mm
Φ140*1000mm
Φ160-1200mm
Φ200-1100mm
Diameter of delivery pipe
Φ63/80/ 100mm
Φ63/80/ 100mm
Φ80/ 100mm
Φ80/ 100mm
Φ100/ 125mm
Φ125mm
Motor power
15KW
18.5KW
30KW
37KW
45KW
55KW
Dimensions(mm)
1 550*750* 1200
1980*750*1350
3000*1100*1300
3680*1450*1550
3980*1600*1580
4200*1600*1680
Host weight
580KG
800KG
1200KG
1850KG
2800KG
3200KG
Horizontal maximum theoretical conveying distance
60M
150M
180M
280M
350M
350M
Vertical maximum theoretical conveying distance
30M
30M
80M
100M
120M
120M

55KW XDEM Concrete Delivery Pump 25Mpa 50 Cubic Meters 350M 7

Concrete trailer pump is also called as concrete pump, which is a mechanical machine that is used to convey and pour concrete at construction sites. Generally speaking, concrete trailer pumps are divided into diesel and electric concrete pump trailer by its original motivation. Trailer pumps have the characteristics of long conveying distance, high productivity, and high transporting speed, which made it more and more welcomed among construction projects.
