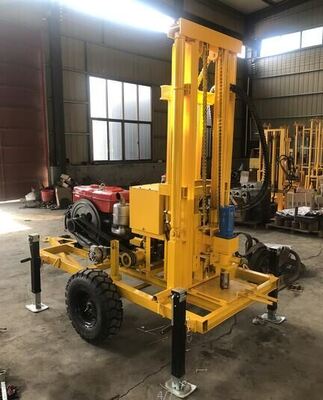

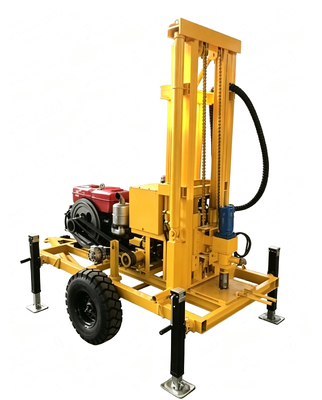

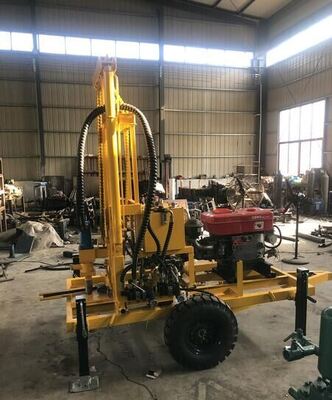

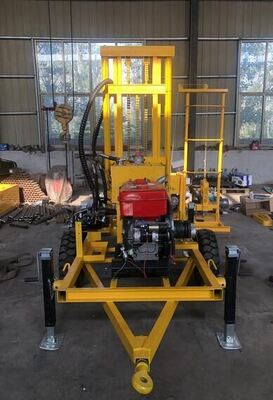

YZ50-150H Hydraulic Diesel Water Well Drilling Machine
Product Overview
YZ50-150H is a fully hydraulic diesel-driven water well drilling machine for domestic drinking water wells, farm irrigation wells and small water conservancy borehole construction. It adopts stepless variable speed transmission, flexible rotation speed and strong output torque, supporting multi-angle drilling from 0° to 90°.
Chassis Selection Reminder: Wheel chassis and crawler chassis are two optional configurations, customers can choose according to construction terrain conditions.
Core Performance Parameters
- Max drilling depth: 210 meters
- Maximum drilling bore diameter: 400mm
- Rotation speed: 0–150r/min stepless speed regulation
- Max torque: 700Nm, max lifting force up to 100KN
- Foldable lifting frame: 3.2m working height, 2.2m transportation height for easy transit
- Whole machine weight only 800kg, compact overall dimension 3000×1300×2200mm
Complete Matching Accessories
- Main power unit: 25Hp electric start diesel engine, full hydraulic control system
- Drill rod: OD50mm seamless steel pipe, single piece length 2m
- Drill bits: Alloy three-wing bit for soil layers, PDC rock bit for hard rock formation
- Supporting mud pump: 22Hp electric start mud pump for mud circulation, deslagging and hole wall stabilization
- Auxiliary fittings: steel clamping plate for fast drill rod disassembly, high-performance water seal for power head leakproof protection
Product Advantages
- Crawler walking chassis, strong terrain adaptability, freely move on mountain, farmland and muddy construction sites
- Hydraulic integrated design, easy centralized operation, low failure rate and simple maintenance
- Foldable mast greatly reduces transportation height, suitable for vehicle transfer and narrow site construction
- Complete supporting tool set, one machine ready for drilling without extra separate equipment purchase
- Wide application range: domestic drinking water wells, agricultural irrigation wells, small geothermal holes and shallow foundation grouting holes
Customization:
XDEM - Customizable Services for Well Drilling Machine
Thank you for choosing XDEM as your trusted brand for your well drilling needs. Our company is located in Henan, China and we are proud to offer our high-quality Geotechnical Drilling Machine to customers worldwide.
With our CE certification, you can be assured that our products meet the highest standards of quality and safety. We understand that every customer has different needs and requirements, which is why we offer customizable services for our Drilling Machinery. Our team of experts will work closely with you to design a Drilling Rig Machine that meets your specific needs and specifications.
We take great care in packaging our products for export, ensuring that they arrive at your doorstep in perfect condition. Our efficient production process allows us to deliver your order within 15 working days, so you can start using your Well Drilling Machine in no time.
We accept payment through T/T, making it convenient for you to complete your transaction. Our supply ability of 1000 sets per month ensures that we can meet the demands of our customers.
Product Specifications:
- Brand Name: XDEM
- Place of Origin: Henan, China
- Certification: CE
- Packaging Details: Export package
- Delivery Time: 15 working days
- Payment Terms: T/T
- Supply Ability: 1000 sets/ month
- Drilling Depth: 0-400m
- Reverse Speed: 60r/min
- Dimension: 1910x850x1520mm
- Weight: 985 KG
- Warranty: 1 Year
At XDEM, we are committed to providing our customers with the best products and services. Contact us today to discuss your custom Well Drilling Machine and let us help you find the perfect solution for your drilling needs.
