5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift

Certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
I'm Online Chat Now

5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift

5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift
5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift

Large Image :  5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE
Model Number: CPD500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD30000/set
Packaging Details: Nude packing
Delivery Time: 30 working days
Supply Ability: 100 sets per month
Detailed Product Description
Model: CPD500 Battery Capacity: 48V/560Ah
Motor: AC/DC Mast: 3m Duplex Mast
Tire: Pneumatic Color: Red, White, Yellow, Etc..
Warranty: One Year Or 2000 Working Hours Load Center: 500mm
High Light:

lithium battery powered electric counterbalance forklift

,

5 Ton Electric Counterbalance Forklift

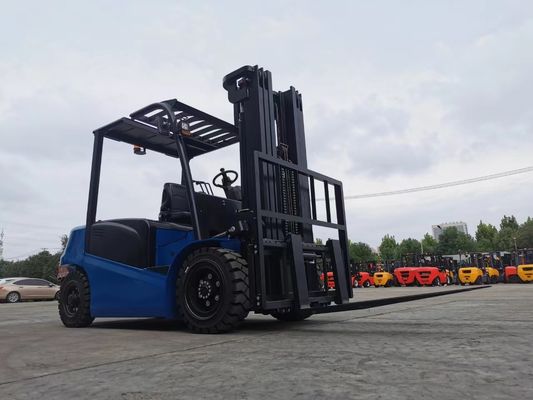

5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift 0

5 ton 6t lithium battery powered electric counterbalance forklift for sale

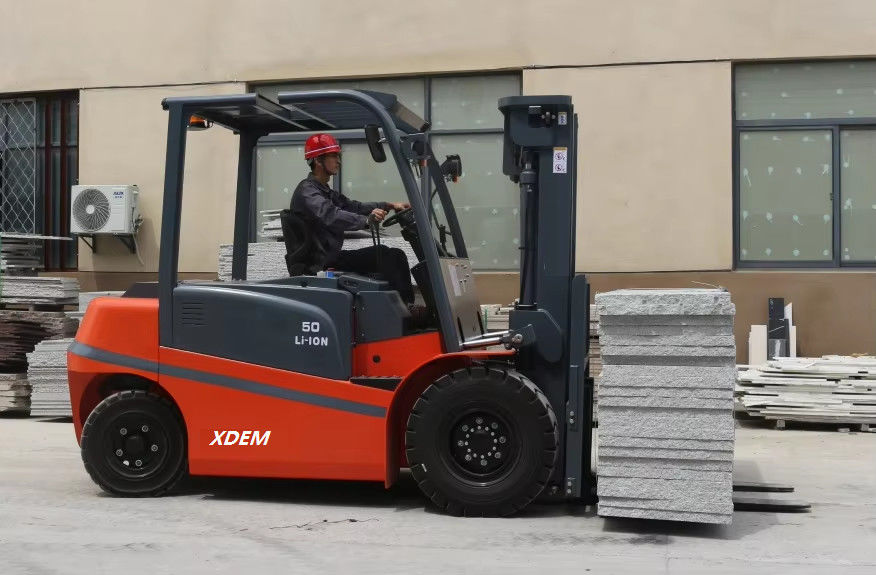

5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift 1
Model: CPD
Loading capacity: 5000kg / 6000kg
Load center: 500mm / 600mm
Lifting height: 3000-6000mm

Features:
1) China top brand lithium battery, 80V/150Ah, 80V/202Ah, 80V/280Ah, 80V/404Ah, water automatic filling system is poptional.
2) Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc

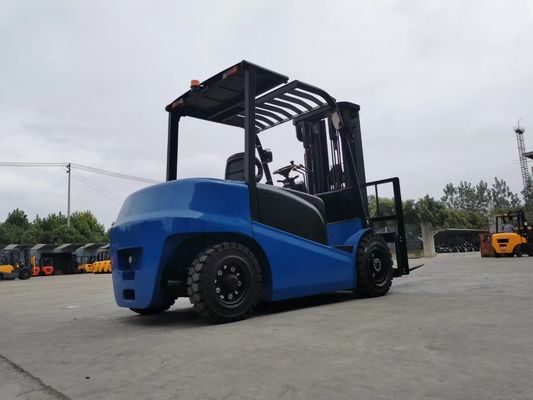

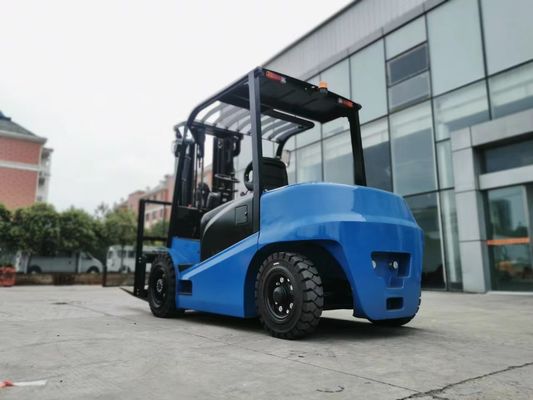

5 Ton 6t Lithium Battery Powered Electric Counterbalance Forklift 2
Characteristics
Manufacturer


XDEM
Model


CPD50
CPD60
Rated capacity
Q
kg
5000
6000
Load center distance
C
mm
600
600
Power type


Lithium Battery
Lithium Battery
Driving type


Seated
Seated
Wheel base
L1
mm
2250
2250
Tyres
Tyre type


Pneumatic
Pneumatic
Wheel number(front/rear)


4/2
4/2
Front tread
W3
mm
1470
1470
Rear tread
W2
mm
1700
1700
Tyre(front)


8.25-15-14PR
8.25-15-14PR
Tyre(rear)


8.25-15-14PR
8.25-15-14PR
Size
Front overhang
L2
mm
590
590
Mast tilting angle,front/rear
α/β
°
6/12
6/12
Height with mast retraction
H1
mm
2500
2500
Free lifting height
H3
mm
200
200
Max. lifting height
H
mm
3000
3000
Max. height after lifting
H2
mm
4420
4420
Overall guard height
H4
mm
2450
2450
Fork size: length x width x thickness
LxWxT
mm
1220x150x55
1220x150x55
Overall length(fork excluded)
L'
mm
3440
3440
Overall width
W1
mm
1995
1995
Turning radius
r
mm
3250
3250
Ground clearance of mast
H5
mm
200
200
Ground clearance of wheel base center(loaded)
H6
mm
220
220
Right angle stacking aisle width
(pallet 1000x1000mm,clearance 200mm)
Ast
mm
5085
5085
Right angle stacking aisle width
(pallet 1200x1200mm,clearance 200mm)
Ast
mm
5285
5285
Lateral fork adjustment
Max./Min.
W5
mm
300-1840
300-1840
Performance
Travelling speed (loaded/unloaded)

km/h
14/16
14/16
Lifting speed (loaded/unloaded)

mm/s
360/400
360/400
Lowering speed

mm/s
420
420
Gradeability (loaded)

%
25
23
Max, traction force(loaded)

N
78000
78000
Acceleration time(10m) loaded/unloaded


5
5
Weight
Total weight

Kg
9000
9500
Lithium Battery
Lithium Battery voltage /capacity

V/Ah
80/460
80/560
Lithium Battery weight

Kg
321
387
Motor and controller
Drive motor power-S2-60 minutes

Kw
30
30
Lifting motor power(S3 15%)

Kw
2 x 13.5
2 x 13.5
Drive motor controlling mode


MOSFET/AC
MOSFET/AC
Lifting motor controlling mode


MOSFET/AC
MOSFET/AC
Service brake/parking brake


Hydraulic /Mechanical
Hydraulic /Mechanical
Hydraulic system working pressure

Mpa
20
20
Note: (1)Detailed information about battery,please contact our salesmen or engineer.
