Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm

Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm
Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm

Large Image :  Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE
Model Number: XDY-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD15000
Packaging Details: Wooden packages
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500 sets per month
Detailed Product Description
Driving: Hydraulic Motor Motor Power: 3kW
Boring Range: 65-600mm Control: Wireless Remote Control
Boring Bar: 60mm Voltage: 220V 380V
Condition: New Weight: 200kg
High Light:

600mm Hydraulic Line Boring Machine

,

3kw Hydraulic Line Boring Machine

,

Hydraulic Line Boring Machine

XDY-60 Portable Hydraulic Line Boring Machine



Feature:
1. Machine adopts modular design, which can be quickly installed and disassembled on site, which greatly improves installation efficiency.
2. Boring bar is made of high-strength alloy structural steel, after repeated stress relief treatments, the surface is chrome-plated and polished, with high strength and not easy to deform.
3. It can realize horizontal installation boring, vertical installation boring, and end face milling on both sides of the hole.
4. Various forms of supporting and fixing devices meet the needs of different working environments. Supports: inline support, cross support, center support, floor support, self-aligning support and shaft end protection support, etc.
5. High processing accuracy, surface roughness can reach Ra3.2.
6. Axial automatic feed, equipped with multi-speed transmission device, output the most suitable feed for rough and finish machining.
7. It has the function of fast retracting tool, which is convenient and quick to operate.
8. The power system has hydraulic system and servo motor available as the power source, with strong cutting power and high stability of the whole machine.
9. Equipped with remote circuit control system, convenient operation and high safety factor.
10. Equipped with wireless remote control, 10 meters oil pipe, speed can be adjusted.



Application:
1. Marine shipbuilding and maintenance, petrochemical, iron and steel mining, power and heat and other industries,
2. Online repair of concentric holes in construction machinery such as excavators, cranes, forklifts, etc.;
3. Online machining of concentric holes in the base of large steel structures;
4. Boring of spliced holes for steam turbine holes;
5. Compressor cylinder line boring.
6. Ship rudder hole, stern shaft hole, etc.



Specification:
Boring bar diameter: 60mm
Boring diameter range: 65-600mm
Speed of boring bar: 0-60 rpm
Feed rate: 0-0.5mm/ rpm stepless speed regulation
Power: Servo motor/Hydraulic motor/pneumatic motor

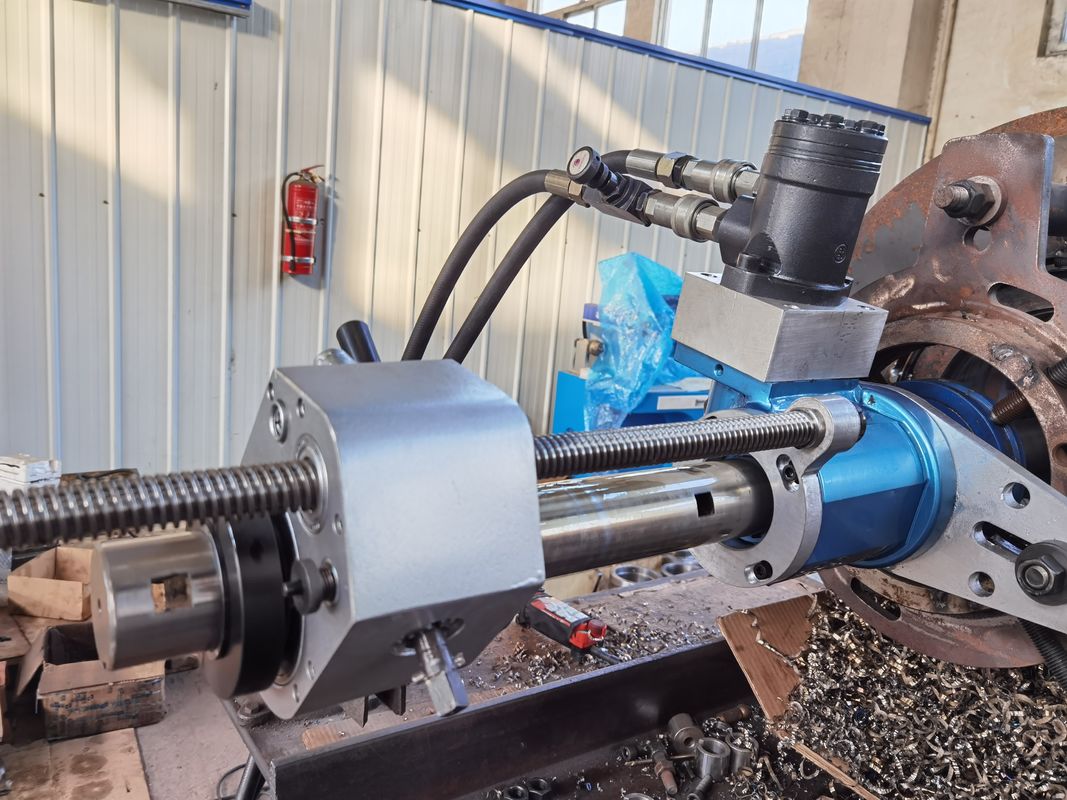

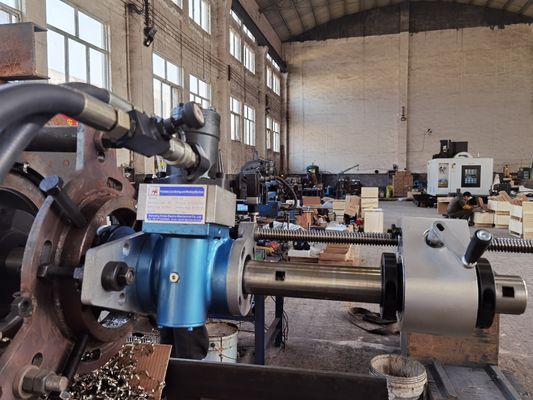

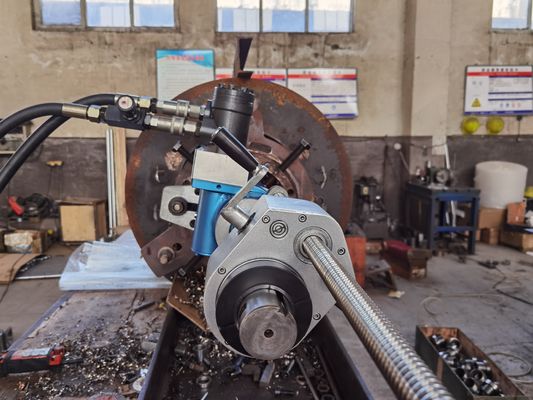

Product Photo:

Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm 0

Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm 1Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm 2Ce 3kw Remote Control Hydraulic Line Boring Machine 65-600mm 3
