XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power

XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power

Large Image :  XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE
Model Number: WT8.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 15000-25000
Packaging Details: Nude packing
Delivery Time: 15 work days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets per month
Detailed Product Description
Condition: New Specification: 8.00T*2m
Max. Work Radius: 16m*0.2t Boom Length: 4.5m-16m

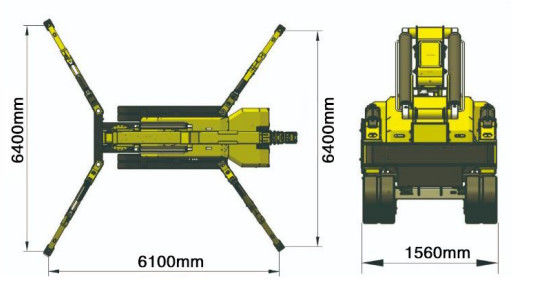

Slew System: 0°-360° Dimension: 4950*1560*2235mm
Power: 15KW Working Voltage: 380V(HZ50)
High Light:

3T Telescopic Boom Crane

,

8T Telescopic Boom Crane

,

5T Telescopic Boom Crane

Product descriptions from the supplier

Overview





XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 0
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 1
The Crawler Spider Crane is a robust heavy-duty lifting machinery tailored for challenging terrain and confined spaces. This versatile tool excels in diverse lifting tasks. It integrates the space-saving benefits of a spider crane with the robust lifting abilities of a pick-and-carry crane, offering a practical alternative for lifting challenges in areas with limited access.
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 2
Spider crane is a supplement to the traditional crane, which solves some hoisting and construction problems in special environments and complex spaces. With excellent accessibility, the safety and efficiency of the operation are significantly improved. With the development and progress of society, hoisting and handling are becoming more and more mechanized, and more and more commercial plazas are rising. Spider crane rental can move and transform in a small space, and let the machinery help us to complete the hoisting and handling smoothly.
Model Type XZSC10 XZSC12
Lifting eight/Boom Qty 21m/5 24.5m/5
Capacity 10 ton 12ton
Working Radius 20m 23m
Boom Length 5-21m 5.5-23m
Boom Angle/Time 0-75°/13sec
Turning Angle/Speed 0-360° endless rotating/60sec
Outriggers Hydraulic automatic support
Driving Way Hydraulic motor drive, two speed
Driving Speed 0-5.5km/h
Grade Ability 20°(36%)
Oil Engine YUNNEI YN27GBZ/2.7L Quan chai
Fuel/Volume diesel/45L
Battery Capacity 24v 45AH
Standard product data is available for reference, and we also offer customized products. Just let us know your requirements.







XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 3



XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 4
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 5
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 6
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 7
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 8
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 9
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 10
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 11
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 12
XDEM 8T 5T 3T Telescopic Boom Crane Lifting Equipment Mobile Spider Crane Diesel And Electric Dual Power 13
