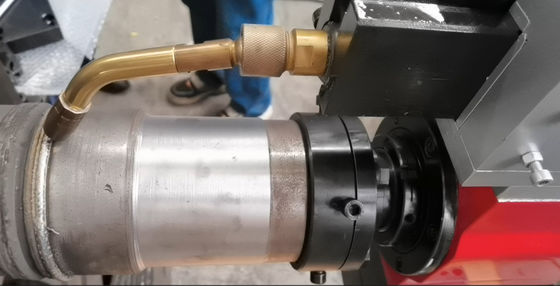

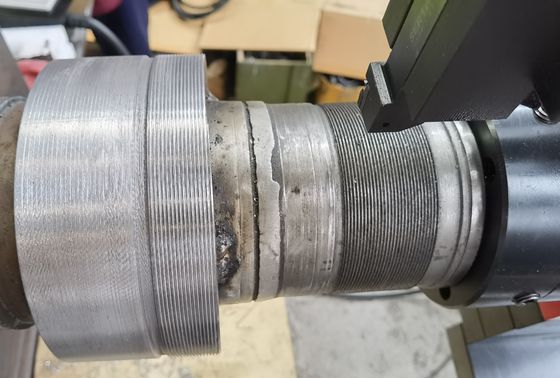

The LTZD-50 portable shaft end lathe is a compact and sturdy portable lathe used for on-site re turning of small shafts or shaft necks. The LTZD-50 portable lathe is installed at the end of the shaft and can meet the range of shaft diameter 50-160 mm and length 300mm. It simplifies installation, is directly fixed to the end with bolts, is efficient and reliable in centering, and the equipment rotates automatically to balance, accelerating installation speed and reducing expensive downtime caused by shaft diameter wear. Suitable for on-site maintenance and turning of shaft outer diameter parts made of steel, copper, and stainless steel materials; Mainly used for processing outer circles, sealing grooves, chamfering, automatic welding of outer circles, etc.
Features:

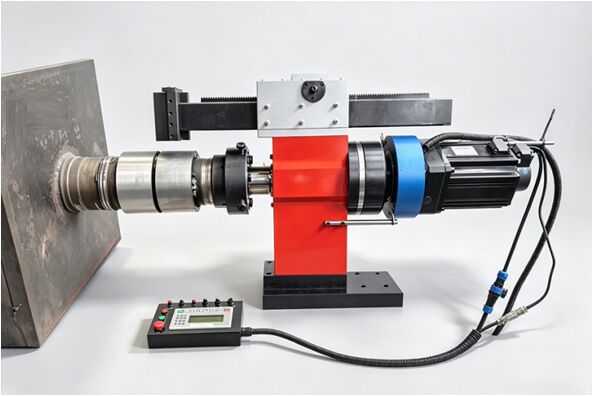

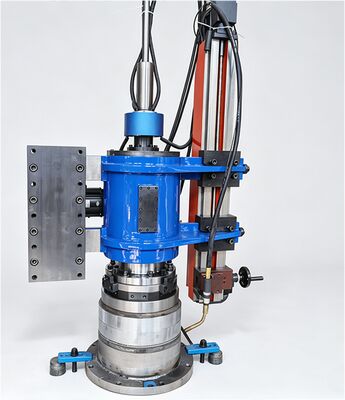

1. Adopting a modular combination design, it can be installed horizontally or vertically at the shaft end according to the on-site operating conditions.
2. Use heavy-duty bearings to ensure smooth and vibration free operation of the machine body;
3. Adopting high-precision and reliable execution components with good stability, durability, and dynamic responsiveness;
4. Install and fix using bolts or tensioning methods, making installation and adjustment convenient and fast; Adjust the balance iron to ensure smooth rotation of the machine during processing; Characterized by high rigidity, high precision, and compact structure;
5. Powered by servo motors, it has the characteristic of outputting constant torque and can work continuously for a long time.
6. Adopting planetary precision reducers with small volume, light weight, high load-bearing capacity, long service life, low noise, high output torque, high efficiency, and safe performance.
7. The main chassis and feed mechanism are made of aluminum alloy material, effectively reducing the weight of the machine tool, ensuring the accuracy of the machine tool without deformation, and being lightweight and easy to operate during use.

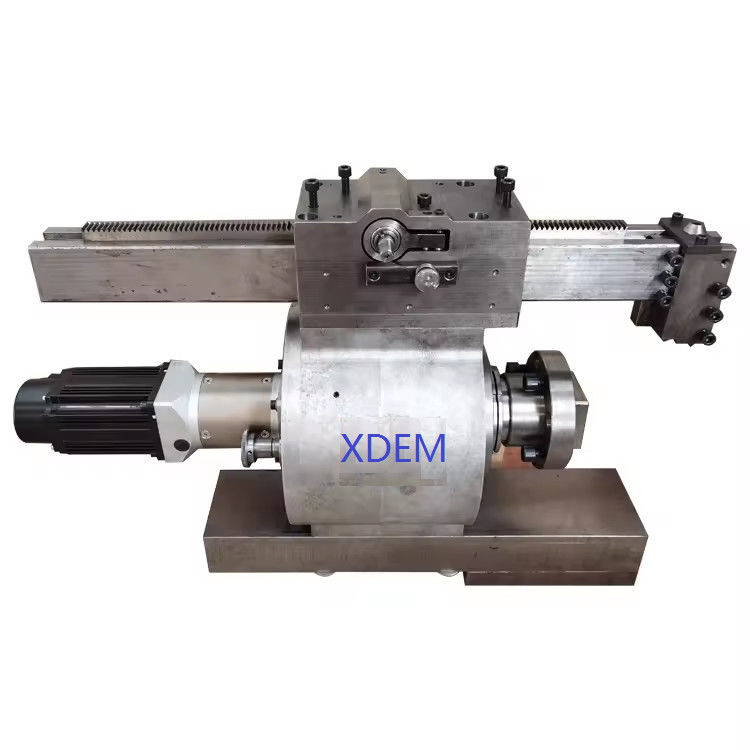

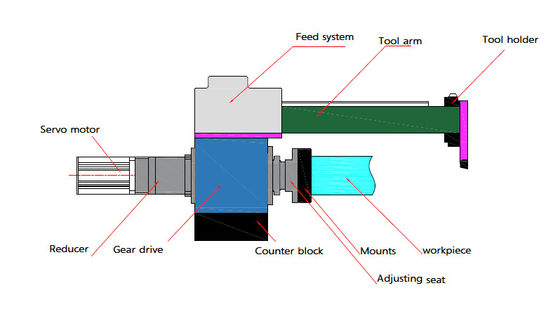

The axle end lathe is composed of servo motor, reducer, main engine box, transmission device, feed mechanism, tool holder, tool arm, etc.
| 1 |
Model |
|
LTZD50 |
| 2 |
Processing range |
mm |
50-160 |
| 3 |
Max. processing length |
mm |
300 |
| 4 |
Feed rate |
Mm/r |
0-0.6 |
| 5 |
Max. cut-in depth |
mm |
1.5 |
| 6 |
Roundness |
mm |
0.02 |
| 7 |
Straightness |
mm |
0.02/200 |
| 8 |
Surface roughness |
mm |
≤Ra3.2 |
| 9 |
Servo motor |
W |
1000/220V 50Hz |
| 10 |
Motor rated speed |
rpm |
3000 |
| 11 |
Motor output speed |
rpm |
83 |
| 12 |
Motor reducer |
|
12:1 |

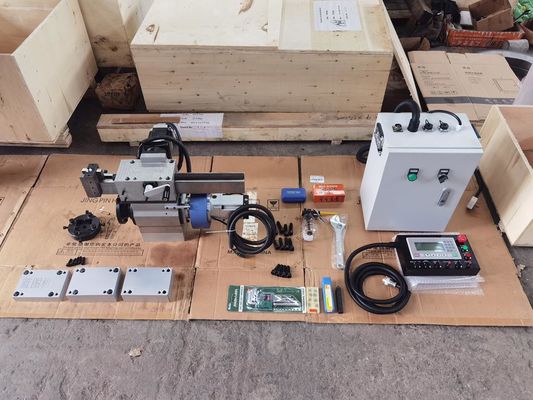

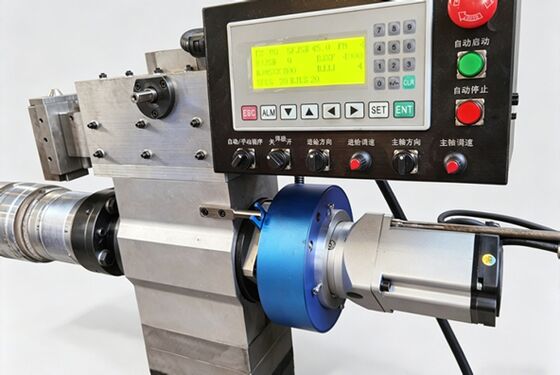

Product Photo:
