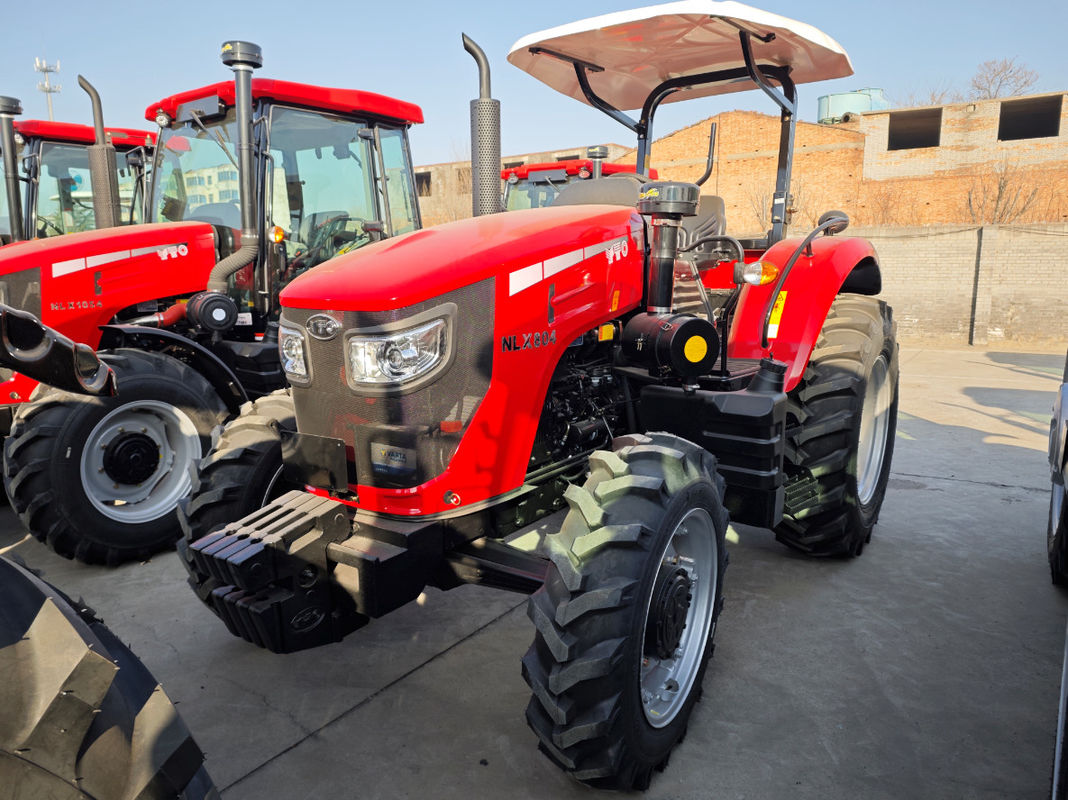

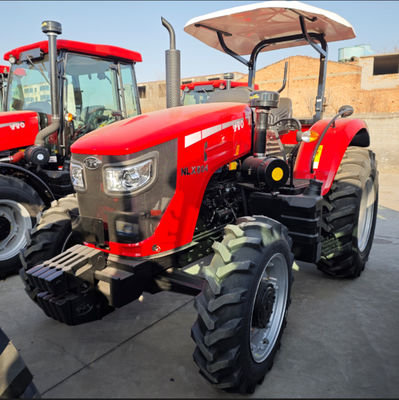

YTO tractor NLX804 80HP Tractor 4WD 80HP wheel Tractor

Model

YTO-NLX804

Tractor

Type

4x4

Overall dimensions (LxWxH) (mm)

4350x2170x2740

Wheelbase (mm)

2314

Min. ground clearance (mm)

430

Min. operating mass (with safety stand) (Kg)

3675

Tyre spec. front / rear

11.2-28 / 13.6-38

Wheel tread, front / rear

1630-1960 / 1500-2100

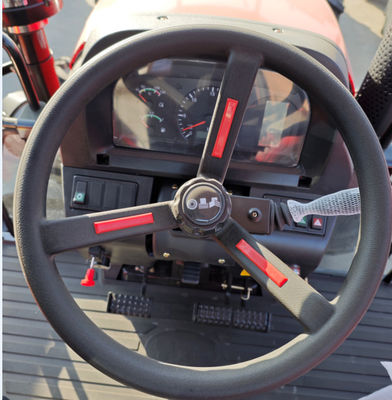

Steering

Full hydraulic

Brake

Oil immersed, disk type

Diesel engine

Model

LR4B5-23

Type

Four cylinder, vertical, water cooled, four stroke, direct injection combustion

Displacement (L)

4.95

Rated power / speed (Kw) / (r/min)

58.8 / 2300

Max. torque (N.m) / speed (r/min)

270 / 1500-1700

Bore x stroke (mm)

108 x 125

Transmission

Gear shift, forward / backward

12 / 4

Speed range (Km/h), forward / backward

1.63-26.82 / 4.23-12.69

PTO power (Kw)

50

PTO rotation speed (r/min)

540 / 720 or 540 / 1000

Clutch

11-inch, dry, double action

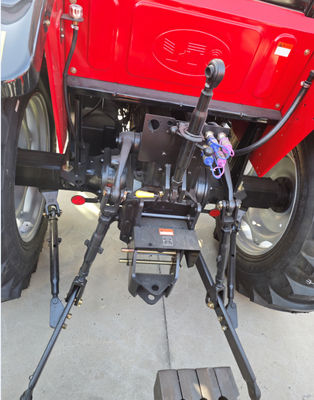

Implement

Three-point linkage category

Three-point linkage category II

Tilling depth control mode

Combined draft, position control and floating control

Lifting force (KN)

16
