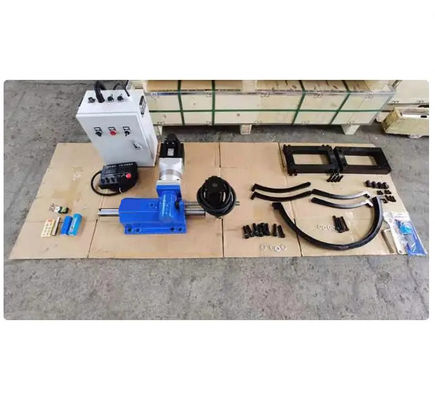

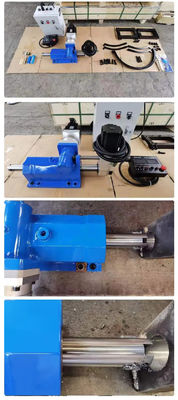

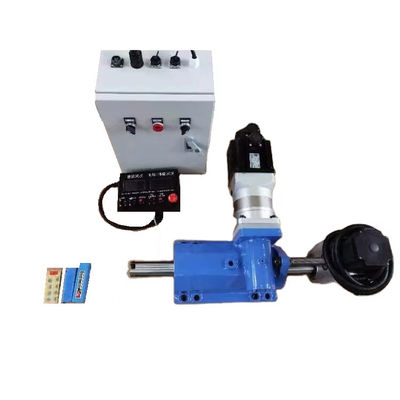

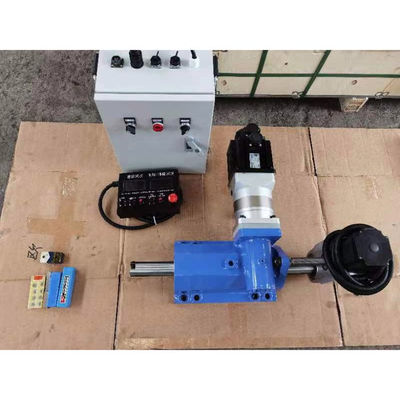

LTJ-45 Portable Reaming Machine
XDEM portable reaming machine is suitable for on-site boring and honing processing of straight holes in steel, copper, and stainless steel materials. It is primarily used for machining connection holes in flanges, main engine base holes, bearing seat positioning holes, rudder machine base holes, and other similar applications.
The machine can be installed in various configurations, including vertical, horizontal, dual-purpose (both vertical and horizontal), and V-shaped base installations. Its compact structure makes it adaptable even in confined spaces.
The boring bar is made from integral alloy structural steel, which has undergone tempering, surface hardening, multiple stress-relief annealing processes, and surface chrome plating. This results in high strength and excellent wear resistance.
The worm gears in the spindle housing are made from phosphor bronze and produced using centrifugal casting, providing good rigidity and wear resistance.
The machine employs high-precision and reliable actuators, ensuring excellent stability, durability, and dynamic response.
Key features:
1. Lightweight and compact stricture, highly rigid and precise;
2. High torque with continuously variable speed control across all speeds;
3. High cutting force, with a maximum cutting depth of up to 3mm during rough machining
4. High machining accuracy, achieving a surface roughness of Ra1.6 during finish machining
Technical specification:
