FACING KIT

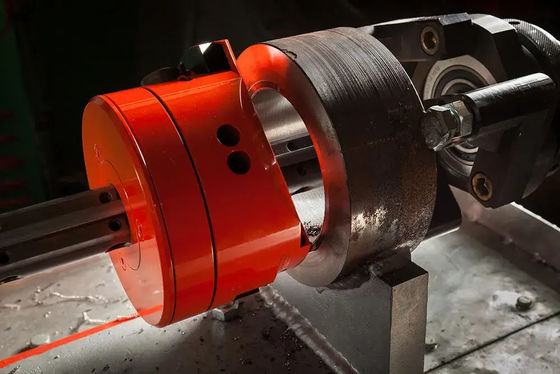

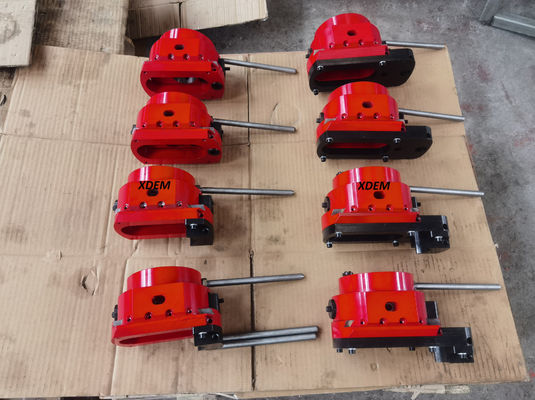

Facing Kit for Portable Line Boring Machines

The Facing Kit for Portable Line Boring Machines is a combination of power and versatility for FLANGE FACING and create CIRCLIP GROOVES.

This tool is in combination with offers the opportunity to make independent operations, saving time and money: FLANGE FACING + AUTOMATIC BORE WELDING.

FEATURES

o LIGHT WEIGHT BODY - High pressure cast aluminum body allows continuous operation under the harshest conditions.

o ROBUST TOOL HOLDER - Holds the cutting tool bits tightly at the desired position. Its robust construction and ROBUST TOOL HOLDER Holds the cutting tool bits tightly at the desired position. Its robust construction and support to the cutting bits ensure vibration free performance.

o SAVE TIME AND MONEY - Two indipendent operations made at the same time, saving time and money: FLANGE FACING + AUTOMATIC BORE WELDING.

o MORE CONTROL - A remote maneuverable shaft allows the start of the advancement of the tool bit. By turning the shaft clockwise, the advancement of the tool bit begins. Rotating the shaft counterclockwise, instead, stops the advancement. The Facing head is equipped with adjustable limit switches to set the flattening diameter. It is very simple. It is sufficient to position the limit switch blocks, the depth of cut and start the machine for machining.

o SAFE - When the slide completes the stroke, a special clutch comes into action and the advancement of the tool bit stops moving even if the machine continues to turn.

· TECHNICAL DATA

BORING BAR DIA. mm (inch) : 40 (1.57")/50(1.97")/60(2.36")

MIN. FACING DIAMETER mm (inch) : 45 (1.77")/55(2.17")/65(2.56")

MAX. FACING DIAMETER mm (inch) : 200(7.87")/300 (11.81")/ customized
