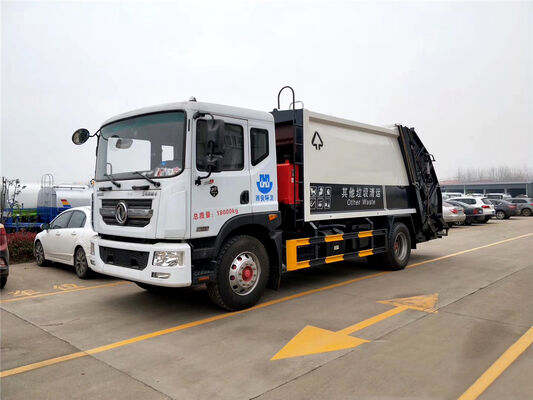

Dongfeng D9 10–12 m³ Rear-Loader Garbage Compactor Truck

1. Chassis Configuration

The vehicle is built on a Dongfeng Dolika D9 chassis with a rear-mounted garbage compactor body.

The chassis is equipped with a 2,315 mm wide one-and-a-half-row cab, with wheelbase options ranging from 3,950 to 4,500 mm. The standard engine is a Dongfeng CMS 180 HP 6-cylinder diesel engine, with a Yuchai 200 HP engine available as an option.

The chassis complies with China National VI emission standards and is equipped with a 4.5-ton front axle and 10-ton rear axle. Other standard equipment includes:

• 10.00R20 radial tires
• Fast 8-speed transmission
• 250 × 4-frame structure
• Air brake system
• Power steering
• Clutch assist
• Electric windows
• Central locking
• Exhaust brake
• Engine brake
• Original air conditioning
• ABS anti-lock braking system

Note: Chassis specifications may vary according to the selected wheelbase and engine configuration. The final configuration shall be subject to the actual vehicle supplied under the purchase contract.

2. Special Equipment / Compactor Body

The compactor body is manufactured from high-quality manganese steel.

• Body capacity: 10–12 m³
• Side panel thickness: 3–4 mm
• Bottom plate thickness: 4–5 mm
• Body material: High-strength manganese steel

The complete compactor body consists mainly of:

• Loading mechanism
• Compression mechanism
• Discharge mechanism
• Hydraulic system
• Hydraulic oil tank
• Oil reservoir / hydraulic components

The loading mechanism consists of brackets, connecting mechanisms, hooks and other components. Driven by the hydraulic system, the loading mechanism lifts and rotates the garbage bin into the hopper.

The garbage is then compressed through the scraping plate and sliding plate mechanism and pushed into the compactor body.

When the truck arrives at the waste disposal site, the rear discharge plate is hydraulically lifted and the compressed garbage is pushed out of the container, completing the discharge operation.

3. Rear Loading / Bin-Lifting Mechanism Options

The manufacturer provides several rear loading mechanism configurations:

1. 240 L or 660 L standard plastic garbage-bin lifting mechanism
2. Hook-type garbage-bin lifting mechanism
3. Swing-arm lifting mechanism, suitable for garbage containers with a capacity of approximately 1.2 m³
4. Flip-bucket / hopper-type lifting mechanism, which facilitates tipping and spreading of loose household waste
5. Fully sealed garbage-bin lifting mechanism

The specific rear loading mechanism can be selected according to the customer's waste collection system.

4. Main Technical Specifications

Chengliwei CLW5181ZYS6 Garbage Compactor Truck

* These figures correspond to different chassis/engine configurations listed by the manufacturer.

5. Other Technical Information

The original manufacturer specifies the following configuration details:

• The compactor body is specially designed for the collection and transportation of municipal household waste.
• ABS system manufacturer: Jiaozuo Xindarui Technology Co., Ltd.
• ABS protective material: Q235 steel.
• Side protective guards are welded to the chassis frame.
• The rear underrun protection is integrated with the special equipment structure.
• Rear protection ground clearance: approximately 450 mm.
• The vehicle can be equipped with a vehicle-mounted GPS positioning and driving recorder.
• Available wheelbases include 3,950 mm and 4,500 mm.
• Overall dimensions vary according to wheelbase and rear overhang.

The manufacturer lists the following dimensional combinations:

Overall length / wheelbase / rear overhang / rear extension:

• 8650 / 4500 / 2460 / 430 mm
• 7960 / 3950 / 2170 / 580 mm

A number of rear loading mechanism configurations are available.

6. Chassis Parameters

Chengliwei CLW5181ZYS6 Chassis

7. Engine Options

The original page lists six engine configurations:
