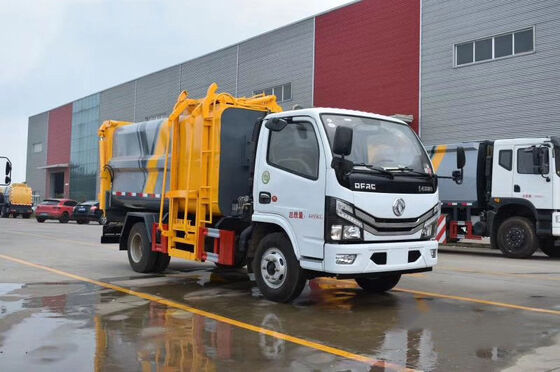

7m³ Dongfeng Dolika D6 Side-Loader Garbage Compactor Truck

1. Product Overview

The 7m³ Dongfeng Dolika D6 Side-Loader Garbage Compactor Truck is a compact municipal waste collection vehicle designed for the collection and transportation of household waste from urban and residential areas.

The vehicle is built on a Dongfeng Dolika D6 light-duty chassis with a single-row cab and is equipped with a side-mounted garbage bin lifting mechanism. The hydraulic lifting system automatically lifts and empties garbage bins into the compactor body, improving collection efficiency and reducing manual handling.

The compactor body adopts a fully enclosed curved structure with an integrated waste-pushing system. A rear hydraulic locking mechanism and rubber sealing strip help prevent waste leakage, while a dedicated wastewater collection channel helps reduce wastewater dripping during transportation.

The vehicle has an effective compactor body capacity of approximately 7.8 m³.

2. Main Features

• 7 m³ nominal garbage compactor
• Effective body volume: approx. 7.8 m³
• Dongfeng Dolika D6 chassis
• Light-duty blue-plate configuration
• Single-row cab
• Side-mounted garbage bin lifting system
• Automatic loading from standard garbage bins
• Fully enclosed compactor body
• Hydraulic compression and push-out system
• Full push-plate discharge system
• Hydraulic rear-door locking system
• Thick rubber sealing strip
• Integrated wastewater collection channel
• Q345 manganese steel used for key body components
• WISCO carbon-steel body panels
• Anti-corrosion and anti-rust treatment inside the body
• Electric + manual dual-control system
• Indoor and outdoor operation
• Optional body graphics, logos and lettering

3. Side-Mounted Bin Lifting System

The vehicle is equipped with a side-mounted garbage bin lifting mechanism.

The hydraulic lifting mechanism automatically raises and tips compatible garbage bins into the loading hopper. This configuration is particularly suitable for municipal and residential waste collection systems using wheeled garbage bins.

The lifting system reduces manual loading work and allows the truck to collect garbage efficiently along urban roads and residential communities.

4. Compactor Body

The compactor body adopts a curved, pressure-resistant structure.

Main construction

• Side panels: 3 mm
• Bottom plate: 4 mm
• Main material: Q345 manganese steel
• Body panel material: WISCO carbon steel
• Internal anti-corrosion / anti-rust treatment
• Integrated push-out system
• Hydraulic rear-door locking
• Rubber sealing strip
• Wastewater collection channel

The enclosed body helps prevent garbage from spilling during transportation. Liquid generated from waste is collected through the wastewater channel, helping reduce secondary pollution.

5. Hydraulic & Control System

The hydraulic system uses a multi-way hydraulic control valve and hydraulic pump.

The vehicle supports both electric and manual control, allowing the operator to operate the equipment from inside or outside the vehicle.

Main hydraulic components

• Jiangsu Zhongmei multi-way hydraulic valve
• Hefei Changyuan hydraulic pump
• Hydraulic garbage-bin lifting mechanism
• Hydraulic compression system
• Hydraulic rear-door locking system
• Hydraulic push-out system

6. Main Technical Specifications

Chengliwei CLW5040ZZZLS6 Garbage Collection Truck

7. Chassis Parameters

Dongfeng EQ1045SJ3CDF Chassis

8. Engine Options

The chassis can be equipped with different China National VI diesel engines depending on the customer's requirements.

The source configuration specifies the CY4BK461 engine with approximately 130 HP, while other engine options are available.

9. Body & Operating Details

The garbage body can be customized with the customer's required:

• Company name
• Logo
• Garbage collection markings
• Warning signs
• Graphic patterns
• Color scheme

This makes the truck suitable for municipal sanitation departments, waste-management companies and private waste collection operators.
