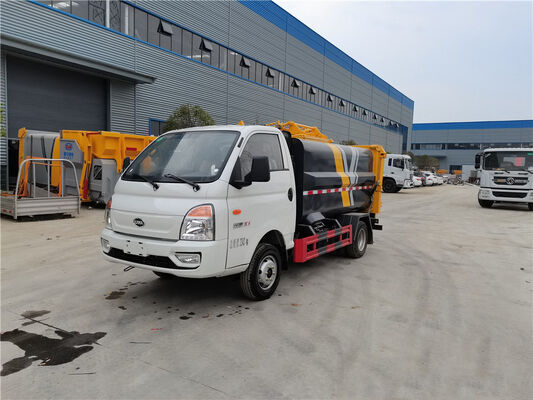

4.5m³ KAMA Ruihang Blue-Plate Side-Loader Garbage Compactor Truck

1. Product Overview

The 4.5m³ KAMA Ruihang Side-Loader Garbage Compactor Truck is a compact and lightweight waste collection vehicle designed for urban and residential household waste collection.

The vehicle adopts a KAMA light-duty chassis and a side-mounted garbage-bin lifting system. Standard garbage bins can be automatically lifted and tipped into the compactor body, while the hydraulic compression system reduces the volume of collected waste and improves transportation efficiency.

As a blue-plate light-duty vehicle, the truck offers advantages in urban mobility, operating cost and driving-license requirements, making it suitable for municipal sanitation services, residential communities and private waste collection companies.

2. Main Features

• 4.5 m³-class compact garbage compactor
• Blue-plate light-duty vehicle configuration
• KAMA Ruihang chassis
• Side-mounted garbage-bin lifting system
• Suitable for household waste collection
• Hydraulic waste compression
• Push-plate discharge system
• Lightweight compactor body
• Curved-body design for increased usable volume
• Fully enclosed garbage body
• Reinforced rear door
• Hydraulic reverse locking mechanism
• Silicone sealing strip
• Effective wastewater leakage prevention
• Simple hydraulic system
• High-pressure hydraulic filter for system protection
• Electric and hydraulic control system
• Suitable for urban and residential waste collection

3. Side-Loading System

The truck uses a side-mounted garbage-bin lifting mechanism for waste collection.

The lifting mechanism automatically raises and tips garbage bins into the loading area, reducing manual handling and improving collection efficiency.

It is primarily designed for standard wheeled household garbage bins. The manufacturer indicates that approximately 45 × 240 L garbage bins can be collected per operating cycle before compression, depending on the actual waste density and operating conditions.

4. Lightweight Design

One of the main characteristics of this model is its lightweight structure.

The compactor body uses a curved design, which provides a relatively large usable volume while keeping the equipment compact.

The manufacturer states that the special-purpose equipment weighs approximately 1.5 tons, which is considerably lighter than many conventional rear-loader compactor configurations.

The lower vehicle weight helps reduce fuel consumption and improves maneuverability in urban areas.

5. Hydraulic & Compaction System

The vehicle uses a relatively simple hydraulic system consisting mainly of:

• Hydraulic pump
• Hydraulic cylinders
• Hydraulic oil tank
• Electro-hydraulic control valve
• PLC control system
• Operating switches
• High-pressure hydraulic filter

The main hydraulic actuators include:

• Garbage-bin lifting cylinder
• Push-plate cylinder
• Rear-door lifting / locking mechanism

Compared with more complex rear-loading compactor systems, the simplified hydraulic layout is intended to facilitate maintenance and reduce potential hydraulic failure points.

6. Rear Door & Sealing System

The rear door is designed with an enhanced reinforced structure to resist deformation under compression pressure.

A hydraulic reverse-locking mechanism is used to secure the rear door during operation.

The door is also fitted with a silicone sealing strip. As compression pressure increases, the rear door is pressed more tightly against the sealing structure, helping prevent wastewater and garbage leakage.

This enclosed configuration is particularly useful for urban waste transportation.

7. Main Technical Specifications

KAMA Ruihang CLW5030ZZZLS6 Side-Loader Garbage Truck

* The source announcement lists a rated payload of 330 kg. For an export quotation, this figure should be verified against the actual body configuration because the stated curb weight leaves limited payload under the listed 3,340 kg GVW.

8. Chassis Parameters

KAMA KMC1031Q318D6 Chassis

9. Engine Specifications

10. Application

The vehicle is mainly designed for:

• Municipal household waste collection
• Residential communities
• Urban sanitation services
• Small and medium-sized waste collection routes
• Commercial and industrial-area waste collection
• Wheeled garbage-bin collection and transportation

Its compact dimensions and side-loading configuration make it particularly suitable for narrow urban roads and areas with frequent garbage-bin collection points.
