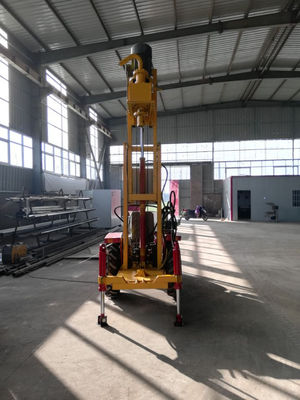

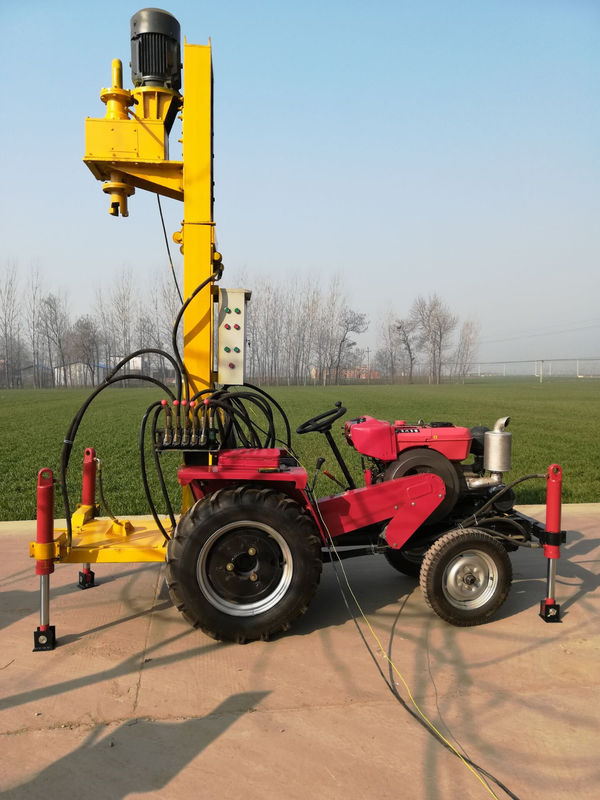

36Hp Tractor Mounted 150m Well Drilling Machine With Diesel Engine

36Hp Tractor Mounted 150m Well Drilling Machine With Diesel Engine
36Hp Tractor Mounted 150m Well Drilling Machine With Diesel Engine

Large Image :  36Hp Tractor Mounted 150m Well Drilling Machine With Diesel Engine

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE ISO
Model Number: XQ-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5000-8000
Packaging Details: Nude
Delivery Time: 15 working days
Contact Now
Detailed Product Description
Working Way: Hydraulic Power Source: Diesel
Total Power: 36Hp Max Drilling Depth: 150m
Max Drilling Diameter: 400mm Drilling Angle: 0°- 90 °
Rotation Speed: 0-150r/min
Highlight:

150m well drilling machine

,

36Hp well drilling machine

,

150m tractor mounted drilling rig

XDEM 150m Tractor Mounted Water Well Drilling Machine Diesel Engine Drilling Rig



150m Water Well Bore Hole Drilling Machine Rigs  36hp Tractor

Item Specifications
Diesel tractor 36HP
Weight 800KG
Tyres

Front tyres 500

Back tyres 95-20
Tractor chassis

Front tyres distance: 900mm

Bank tyres distance: 1080mm

Shaft distance: 1400mm
Tractor size 2755*1320*1360MM
standard ISO
Drill diameter 200-450mm
Drill depth 100-150m
Drill speed 60rpm/90rpm
Motor 7.5kw
Motor power 30kw
Pump power 7.5kw
Drill rob speed 1.5m
Max hoist height 2t
dimension (L*W*H) 3750*1350*4100mm
Drill rod length 22m/piece
Drill rod diameter 63.5mm
Drill rod change method Automatic

36Hp Tractor Mounted 150m Well Drilling Machine With Diesel Engine 0



Tag:

200m portable hydraulic water well drilling rig,

60rpm deep rock well drilling,

Dia450mm hard rock well drilling
