| Working Way: | Diesel | Max Drilling Depth: | 300m |
|---|---|---|---|
| Drilling Diameter: | Φ75-300 Mm | Air Consumption: | 11—35m3/min |
| Slider Stroke: | 1800mm | ||
| High Light: | 132kw well drilling machine,300m well drilling machine,300m portable well drilling rig |
||

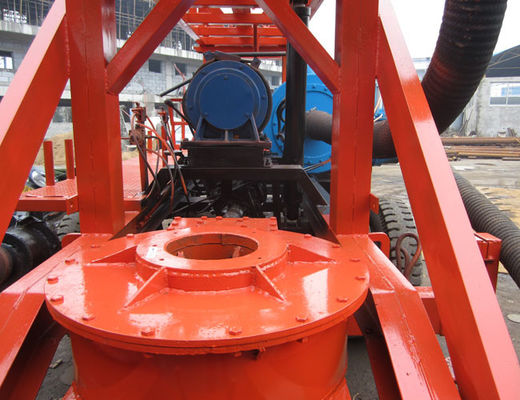

Drilling machine mainly consist of diesel engine, friction clutch, gearbox, transfer case, transmission shaft, mud pump, clarified water pump, vacuum pumps, rotary table, swivel, hoister, hydraulic systems, control mechanism , mast, drilling tool, frame and other components.
Working principle of the water well rig:
Water well rig works through pump-absorption reverse circulation. Under the pressure of atmospheric, the circulating fluid from the sedimentation tank through the return ditch along the annular gap between the borehole flow to the bottom of the well, when the rotary table drive drill pipe, drive bit drilling, mud pump suction creat the negative pressure inspire the debris cavity into the drill pipe iumen, then rose up to the swivel, through the mud pump into the sedimentation tank. The post precipitation circulating liquid continues to flow into the borehole, again and again, forming a reverse circulation drilling work.

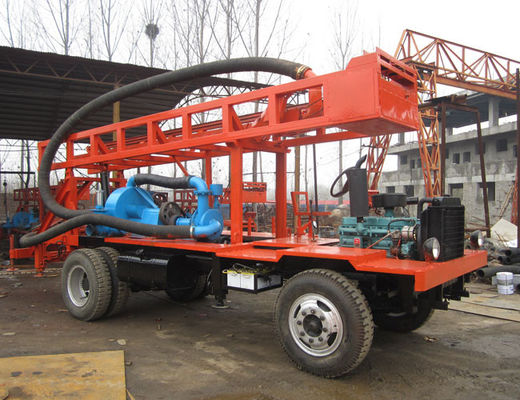

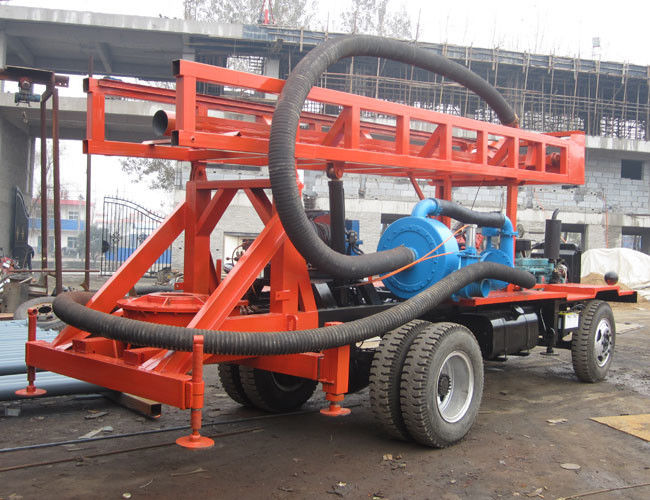

Brief Introduction of ZJ-150
ZJ-150 drilling rig using self-propelled vehicle. The pumping-exhaust slag particles diameter is 15cm, footage quickly and match with a reverse circulation pump, Popular in the construction of the complex geological areas. ZJ-150 drilling rig suitable for construction of high building, bridge foundation, geological mines, ports, dams and deep wells project etc.
| Type | ZJ-150 | |
| Drill Depth (m) | Construction | 50 |
| Reverse circulation | 150 | |
| normal circulation | 300 | |
| Hole Diameter(mm) | Engineering | 1500 |
| Reverse circulation | 800 | |
| normal circulation | 800 | |
| Rotary Speed(r/min) | 18,30.4,53.5,85,17.1(pour) | |
| Rotary torque (KN.m) | 7.8 | |
| Hoister Load (KN) | 30 | |
| Lift capacity of hook(KN) | 120 | |
| Tower Load capacity(kN) | 150 | |

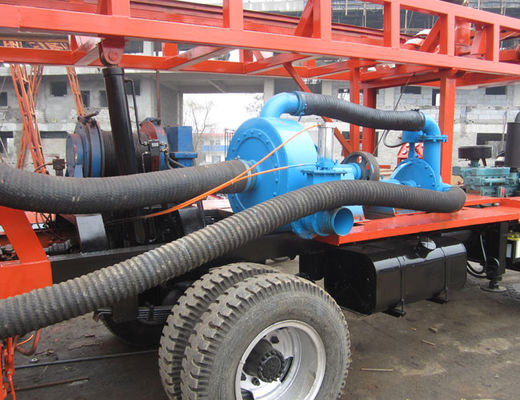

| Gravel pump | Flow(m3/h) | 280 |
| Suction (m) | 150 | |
| Head(m) | 15.5 | |
| Rotate Speed(r/min) | 1100 | |
| Power(kW) | 30 | |
| Pump | Flow(m3/h) | 180 |
| Suction(m) | 18 | |
| Head(m) | 7.5 | |
| Speed(r/min) | 1450 | |
| Power(KW) | 4.5 | |

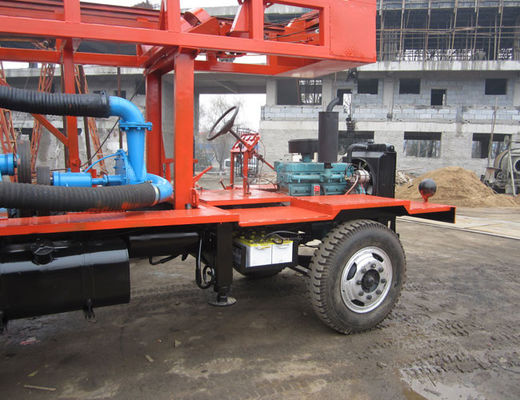

| Diesel Engine | Power | WC6105 Engine 132kw |
