XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost

XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost
XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost

Large Image :  XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost

Product Details:
Place of Origin: Henan,China
Brand Name: XDEM
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD19642-71500
Delivery Time: 22-30days
Payment Terms: L/C, T/T
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Application: Organic Fertilizer, Fermentation Turning Equipment Weight: 4000 KG
Name: Organic Fertilizer Compost Turner Turning Power: 33.5
Turning Depth: 1.5-1.8m Dimension(L*W*H): 2500*1200*3500mm
Moving Speed: 0.8 Production Capacity: 240t/h
Voltage: 380V
Highlight:

XDEM Chain Plate Stacker

,

Hydraulic Auxiliary Chain Turner

,

240t/h Organic Fertilizer Compost Turner

Video Description
00:04

00:10

Product Description
XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost 0

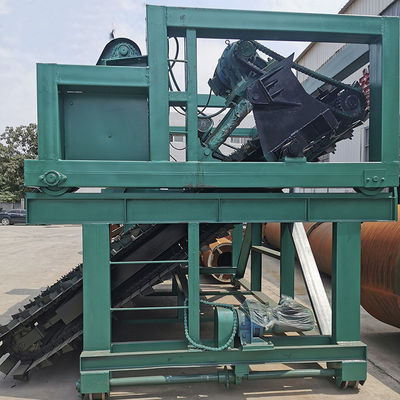

Chain plate stacker

The chain plate dumper works in the organic fertilizer fermentation tank. Tracks are designed on both sides of the fermentation tank. The dumper spans the fermentation tank track and is driven by a motor. The chain plate tipper can move from one fermentation tank to another through the moving crane, and has strong adaptability to the characteristics of fermentation materials. All materials of the dumper are suitable for the environmental corrosion of the organic domestic waste fermentation workshop. In particular, the rake teeth are calcined at high temperature, which is corrosion resistant, wear-resistant and has a long service life.
XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost 1
Specification
Model
Power (kw)
Traveling speed (m/min)
Size of fermentation tank (W * H)
Upset depth
LBFP-3000
21.3
0.8
3000*1750
1.5-1.8m
LBFP-4000
28.3
0.8
4000*1750
1.5-1.8m
LBFP-5000
28.3
0.8
5000*1750
1.5-1.8m
LBFP-6000
30.5
0.8
6000*1750
1.5-1.8m
LBFP-8000
30.5
0.8
3000*1750
1.5-1.8m
LBFP-12000
30.5
0.8
4000*1750
1.5-1.8m
LBFP-15000
30.5
0.8
5000*1750
1.5-1.8m
LBFP-18000
30.5
0.8
6000*1750
1.5-1.8m
LBFP-20000
30.5
0.8
4000*1750
1.5-1.8m
LBFP-24000
30.5
0.8
5000*1750
1.5-1.8m
LBFP-30000
30.5
0.8
6000*1750
1.5-1.8m
XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost 2
XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost 3
XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost 4
XDEM Chain Plate Stacker Hydraulic Auxiliary Chain Turner Organic Fertilizer Compost 5
