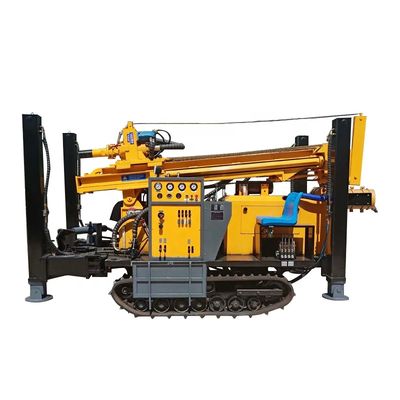

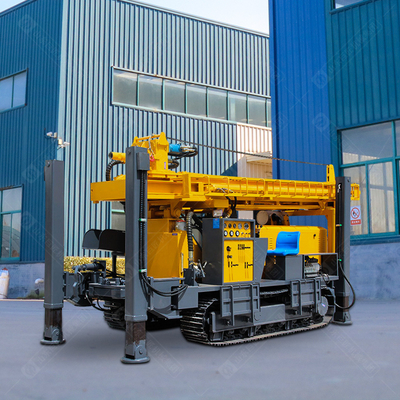

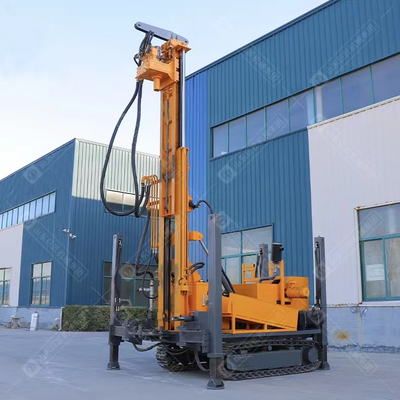

CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig

CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig
CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig

Large Image :  CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig

Product Details:
Place of Origin: Henan, China
Brand Name: XDEM
Certification: CE
Model Number: CJDX-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$23000 1Set
Packaging Details: Export package
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 1000 sets/ months
Contact Now
Detailed Product Description
Power Source: Diesel Fuel Drilling Depth: 0-200m
Drill Hole Diameter: 140-325mm Dimension: 3850*1800*2450mm
Rod Diameter: 76 89mm Propulsion Force: 7t
Weight: 5000 KG Warranty: 1 Year
Lifting Force: 15t Working Air Pressure: 1.7-3.0Mpa
Air Consumption: 17-31m3/min Main Machine Power: 55kw
Travelling Speed: 2.5km/h Rotation Speed: 40-160rpm
Highlight:

400m Depth Well Drilling Machine

,

High Precision Well Drilling Machine

Product Description


CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig 0

Specification


Parameters

Units

Parameter value

Drill hole diameter

mm

140-325

Drilling depth

m

200

Drill pipe diameter

mm

Φ76 Φ89

Drill pipe length

m

1.5, 2.0, 3.0

Length of one push

mm

3300

Propulsion force

T

7

Lifting force

T

15

Working air pressure

Mpa

1.7-3.0

Air consumption

m3/min

17-31

Main machine power

kw

55

Travelling speed

km/h

2.5

Climbing capacity

Max..

30 º

Rotation speed

rpm

40-160

Rotational torque

N.m

3300-4700

Overall dimensions

mm

3850*1800*2450

Overall machine weight

T

5



CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig 1
1. Strong off-road capability ,can easily cope with various complex work sites.
2. High efficiency. The drilling rig is equipped with hydraulic feeding system, double hydraulic motor power head, chain drive
and hydraulic cylinder propulsion, with high torque and high drilling efficiency.
3. Easy to operate. The operation handle is centralized, the layout is reasonable, safe and feasible. 2 persons can operate the
well.
4. Use of brand-name engines. High-power diesel engine Adopt domestic Yuchai, Weichai, Cummins and other high-quality brand
engines
5. Save time. Large tonnage winch, save time, improve operational efficiency Can pull 30-50m root pipe


CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig 2




CJDX-200 Air Compressor for Pneumatic 200 Meter Crawler Chassis Water Well Drilling Rig 3

Key Features:

  • Deep Hole Driller
  • Drilling Machinery
  • Geotechnical Drilling Machine

Tag:

200m portable hydraulic water well drilling rig,

60rpm deep rock well drilling,

Dia450mm hard rock well drilling
