XDEM WL200D 50Hp Tractor Mounted 220m Well Drilling Machine with Versatility Hydraulic Water Drill Rig

Certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
China Nanyang Xinda Electro-Mechanical Co., Ltd. certification
I'm Online Chat Now

XDEM WL200D 50Hp Tractor Mounted 220m Well Drilling Machine with Versatility Hydraulic Water Drill Rig

XDEM WL200D 50Hp Tractor Mounted 220m Well Drilling Machine with Versatility Hydraulic Water Drill Rig
XDEM WL200D 50Hp Tractor Mounted 220m Well Drilling Machine with Versatility Hydraulic Water Drill Rig

Large Image :  XDEM WL200D 50Hp Tractor Mounted 220m Well Drilling Machine with Versatility Hydraulic Water Drill Rig

Product Details:
Place of Origin: Henan, China
Brand Name: XDEM
Certification: wu
Model Number: WL200D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$18929 1Set
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 100 set per month
Detailed Product Description
Drill Depth (m): 220 Maximum Drilling Diameter(mm): 100-325
Tractor Horsepower(hp): 50 Lift Force(t): 14
Maximum Progress(m): 2.4
Highlight:

220m Well Drilling Machine

,

Hydraulic Water Drill Rig

,

50Hp Well Drilling Machine

Product Information

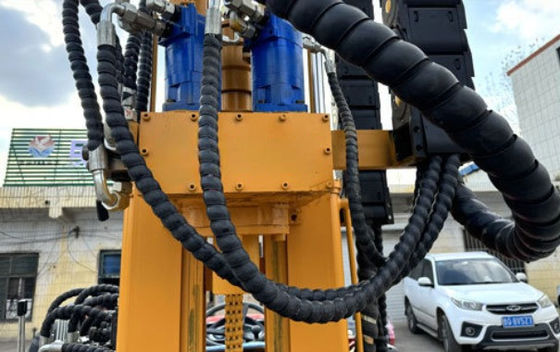

1 .png Dual motor power head, high torque, depth up to 200 meters, strong power

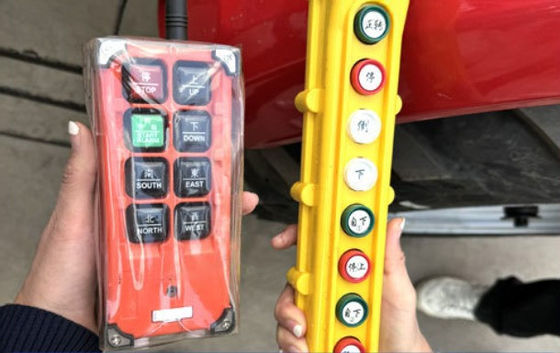

2.png Wired remote control, wireless remote control, high configuration, more convenient and fast operation
3 .png 50 horsepower diesel engine, more powerful, easy to operate and handle

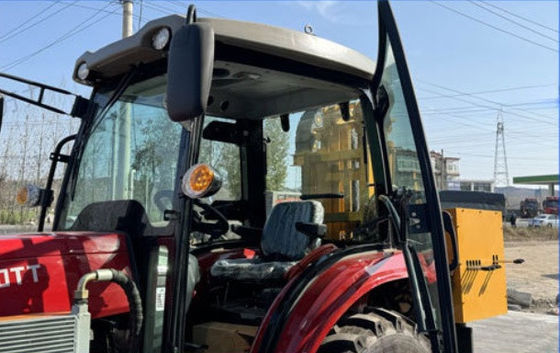

4 .png Optional luxury cab for more comfortable outdoor construction





XDEM

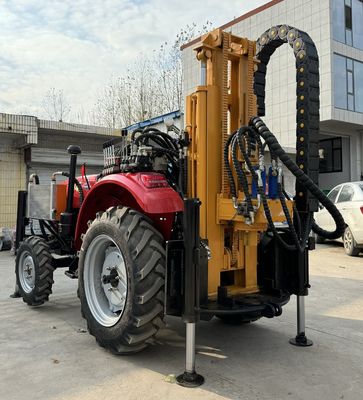

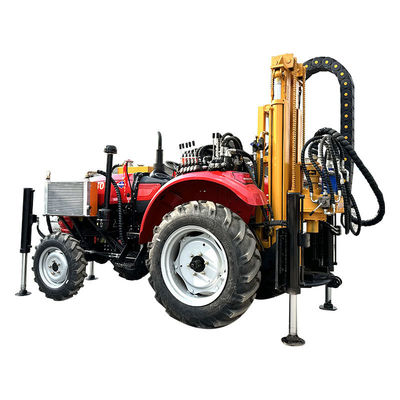

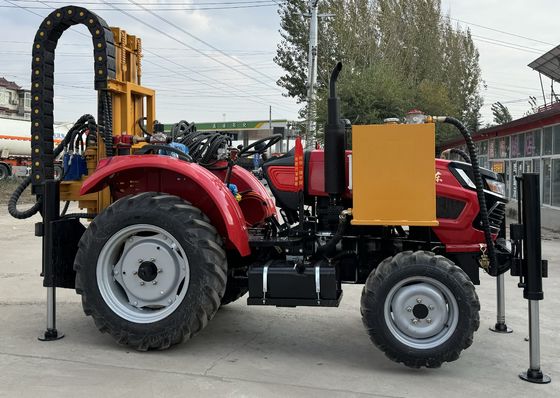

The Tractor drilling rig is a lightweight, efficient, and multifunctional drilling equipment powered and carried by a new type of high-power tractor. The drilling rig is installed on the high-efficiency high-power tractor, and the transition movement is convenient and fast. It can work efficiently in various geological structures.

Parameters

Model WL220D
Drill depth (m) 220
Overall weight(t) 3
Maximum drilling diameter(mm) 100-325
Tractor horsepower(hp) 50
Lift force(t) 14
Hydraulic pump 630
Maximum progress(m) 2.4
Maximum turning torque 4500-6000
Maximum rotation speed(rpm) 70-140
Recommended drill pipe diameter(mm) 60/76/89
Transportation dimensions: L*W*H(m) 3.3*1.55*2.2
Way of working Water drill
Single machine climbing angle(°) 30
Walking speed (km/h) 30
Tractor drive mode Four wheel drive





Company Profile

Nanyang Xinda Electro Mechanical (XDEM) is committed to technological innovation and is fully committed to product research and development. The current main product line includes over 40 categories across four major segments: drilling rigs, pile drivers, construction machinery, and components. Among them, drilling pile equipment ranks among the top in the industry, and the market share of excavators is steadily increasing. The company practices technological research and development, promotes product upgrades, and continues to make breakthroughs in the fields of new energy and intelligent modification.
