XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment

I'm Online Chat Now

XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment

XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment
XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment

Large Image :  XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment

Product Details:
Place of Origin: China
Brand Name: XDEM
Certification: CE
Model Number: GXY-200B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6600
Packaging Details: Nude packing
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Drill Depth: 0-300m Rod Diameter: 42mm/50mm/60mm
Size: 1860x780x1480mm Weight: 980

GXY-200B Portable Water Well Drill Rig Hydraulic Drilling Machine Core Drilling Equipment

XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 0

Product Description:

GXY-200B drill rig is a portable hydraulic drive and great torque drill rig with water pump, mainly used in water well, core drilling, exploration, road and building prospecting, etc. It is provided with more powerful diesel engine, increased spindle diameter (φ53 hexagonal drive rod) and hoisting capacity (to ensure that φ75 drill rod can reach drill diameter 200mm) and added reverse gear function.



Main Features:

1. Very powerful at soil, sand, hard rock, etc. land condition.

2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.

3. Hydraulic control system for greatly improving the working efficiency, saving labor force.

4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.

5. Power can be diesel engine or electric motor, as per your request.





Technical Parameters:



Model GXY-200B
Drill depth 0-300m
Rod diameter 42mm/50mm/60mm
Drive rod 53x59x4.5m
Spindle speed 53, 92,145,200,250,435,668,947r/min
Reverse gear speed 41,169r/min
Spindle travel 500mm
Spindle torque 2500N.M
Spindle lifting force 49kN
Spindle pressing force 36kN
Hoist lifting 25kN
Hoist rotation 34,59,94,129r/min
Hoist capacity 30M (12.5mm steel rope)
Shift travel 465mm
Oil pump model CB-FC16-FL
Oil pump rotation 500-2500r/min
Oil pump displacement 16ml/r
Power 24HP-1500r/min
Overall size 1860x780x1480mm
Weight 980kg



Tips to select a right drilling rig:



1. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?



2. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.



3. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.



4. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand?

Hard ground like hard rocks?

Or mixed?



More details you provided, our engineer can suggest the most suitable model for you.

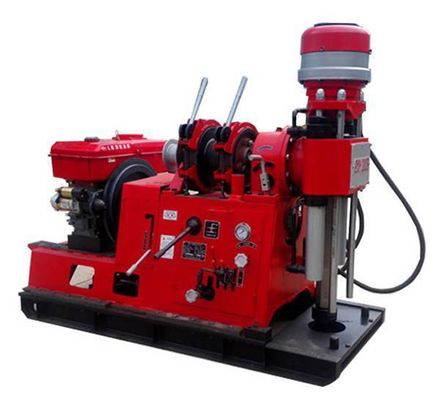

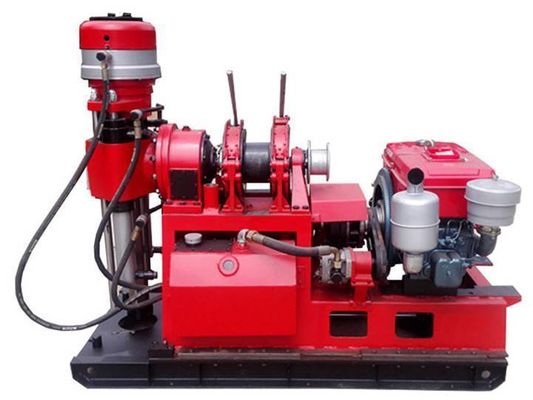

Product Show:



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 1XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 2

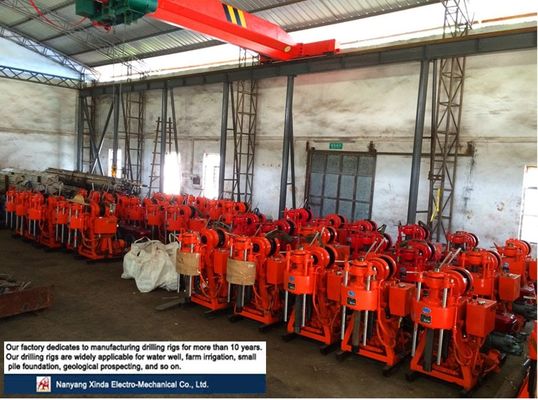

View in workshop :





XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 3



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 4



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 5



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 6



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 7



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 8



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 9



XDEM GXY-200B Portable Water Well Drilling Rig 200m Hydraulic Drilling Machine Core Drilling Equipment 10
